Mining machinery from China manufacturer best stone PF Impact Crusher Machine
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Impact Crusher | Application: | stone crusher |
Motor Type: | AC Motor | Power(W): | 90-132kw | Capacity(t/h): | 60-100 ton/hour |
Place of Origin: | Shandong, China | Brand Name: | hysan | Model Number: | PF1210 |
Dimension(L*W*H): | 2690*2380*2890 | Weight: | 13.8T | Certification: | ISO 9001:2008,CE certification |
Warranty: | 1 year,12 months excluding the wearing parts | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

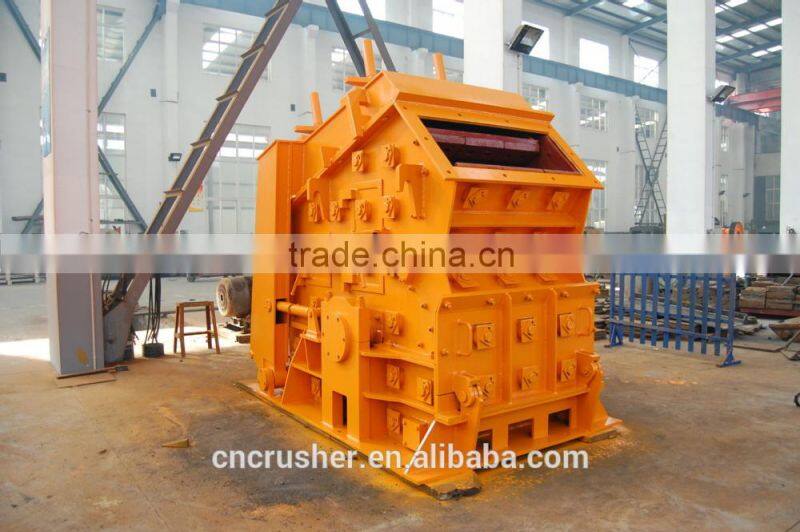

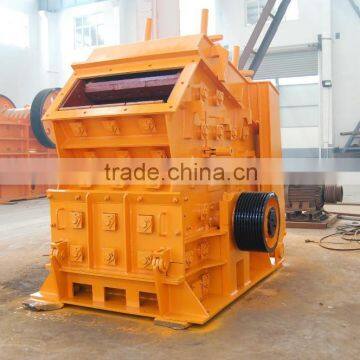

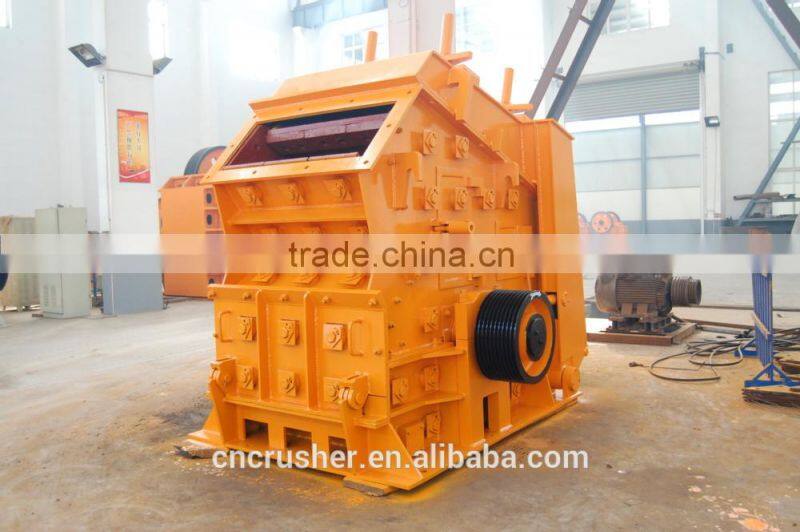

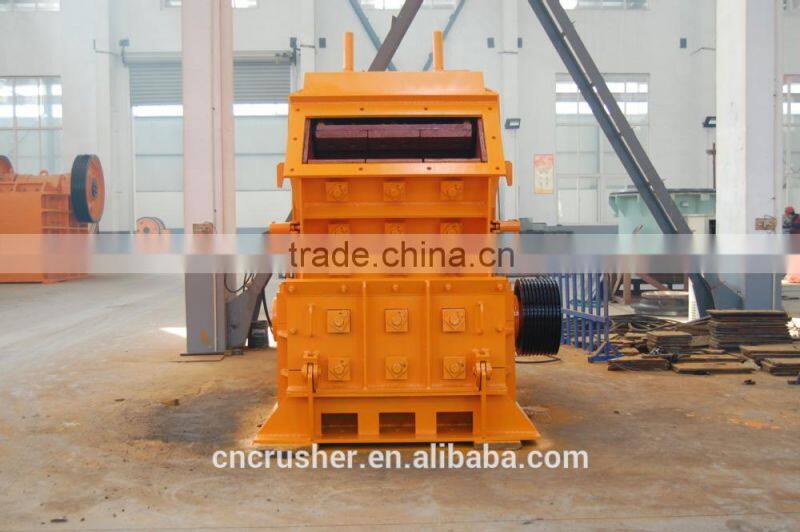

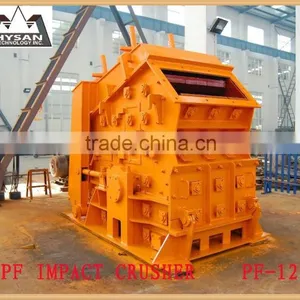

China leading manufacturer Impact Crusher Machine

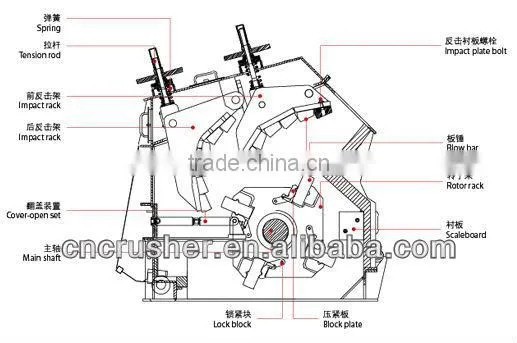

This impact crushes materials with impact force.
When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush.
Then the materials will be shot back to the blow bar again for the third crush.
This process repeats until the materials are crushed to the required size and discharged from the lower part of the machine.
The size and shape of the finished powder can be changed by adjusting the gap between the impact rack and rotor support.
Application of impact crusher machine:
The impact crusher is used for crushing various rocks, constructing railway, expressway roadbed and dam area of power station, producing artificial dinas for the building industry, etc.
It is used to crush coarse, medium and fine stones whose compressive strength is no more than 300MPa and Moh's hardness is lower than the 8th degree, such as limestone, basalt, granite, concrete, slag, cement block, etc.
Descriptions of impct crusher machine:
It is famous for its superior performance, steadily working and longer working life.
Subject to advance technology, results and customers’ feedbacks and abundant experience in the crushing industry, we design and produce PF series impact crushers with high efficiency and good performance.
It is always matched with jaw crusher or hammer crusher as the secondary procedure.
Advantages of impact crusher machine:
The impact crusher with Big feed head,high stave cavity,high adaptation material degree of hardness,big block,few product stone powder.
The impact board and the board hammer gap can be facilitatly adjusted, the controlment material granularity is active, the grain shape is good.
The structure of the impact crusher is compact, the machine rigidity is strong, the rotor has the big rotation inertia.
High chrome hammer is anti-impact, anti-attrition,the impulse is big.
No keying, the overhaul is convenient,the economy is reliable.
Entire stave funtion ,high productivity,slightly parts wears and tears,high combined earings.
Technical Parameters of impact crusher machine:
Model | Rotor diameters*length |
Raw material Size≤(mm)
| Capacity (t/h) | Motor power (kw) | Theretical Weight (t on) |
PF-1010 | 1000*1000 | 250 | 30-60 | 55-90 | 14 |
PF-1210 | 1250*1050 | 300 | 60-100 | 90-132 | 17 |
PF-1214 | 1250*1400 | 300 | 70-140 | 132-185 | 20 |
PF-1315 | 1325*1500 | 300 | 100-150 | 180-260 | 19.3 |
PF-1515 | 1500*1500 | 350 | 180-280 | 280 | 28 |
Note: This specification is just for reference.
Impact crusher
1. RFQ
To choose the appropriate model for you, we need to know the following information:
1. What's the raw materials and its size(mm/inch)?
2. What's the discharging size?
3. What's the required Capacity(tons per hour or TPH)?
4. Other special requirements.
2. Delivery time: 25 days.
3. Payment term: 1> L/C 2> T/T 3> D/P
Welcome to visit our factory!
Contact information:
Yolanda Hu
Tel: +86-533-3151518
Cell: +8615206673075
Skype: yolanda.hu6
wechat:479102723
Website: /
