Battery Monitoring System Control Panel BM00CM

Battery Monitoring System Control Panel BM00CM thumbnail-1
Battery Monitoring System Control Panel BM00CM thumbnail-2
Battery Monitoring System Control Panel BM00CM thumbnail-3
Battery Monitoring System Control Panel BM00CM thumbnail-4
Battery Monitoring System Control Panel BM00CM thumbnail-5
Battery Monitoring System Control Panel BM00CM thumbnail-6
Battery Monitoring System Control Panel BM00CM photo-1
Battery Monitoring System Control Panel BM00CM photo-2
Battery Monitoring System Control Panel BM00CM photo-3
Battery Monitoring System Control Panel BM00CM photo-4
Battery Monitoring System Control Panel BM00CM photo-5
Battery Monitoring System Control Panel BM00CM photo-6
US$ 280 - 500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
RELAT
Model Number:
BM00CM
Contact Supplier Request Quote Chat Now
Shenzhen Relat Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name RELAT
Model Number BM00CM
Product Introduction

BMS Smart Control Module

BM00CS is the core component of BMS, it can collection measuring data, judgement and summary alarms, storage and upload the measuring data. Detailed measuring data and alarms can be displayed and researched on the LCD screen.


Feature


Modbus Communication
Updated data in 10 seconds
Impedance data storage for 12 months
Analysis, storage and display measuring data
Wireless alarms, use of cell phone for maintenance (Option)
Transmit the acquired data to the upper computer by RS-232/RS-485
Provide battery management software for remote monitoring
Telecommunications by Ethernet to achieve the aim of expansion and centralized monitoring

Applications


IDC Data Centre
Telecom Base Station
Electricity Power
Radio and TV System
Telecom Base Station
Insurance Data Center
Railway Transport



Specification
General Characteristic
Operating Temperature
-10~65 °C
Storage Temperature
-40~80 °C
Humidity
< 95 %
Weight
5 kg
Display
4.3 inch LCD display
Certificate
CE EMC
Electrical Characteristic
Input Voltage
AC 220 V
Power Consumption
< 10 W
Output
Single dry contact, volts free
Power Supply
110 VAC- 240 VAC
Rated Load@125VA
0.5 A
Rated Load@24VDC
1 A
DC working voltage
60 V
AC working voltage
125 A
Working Current
< 1 A
Technology Characteristic
Port
RJ45 (10/100Base), RS232
Baud rate
9600bps
Electrical Isolation
3000 VAC
Max. connection with R-Sensor and I-Sensor (Each CM)
254 units R-Sensor and 6 units I-Sensor

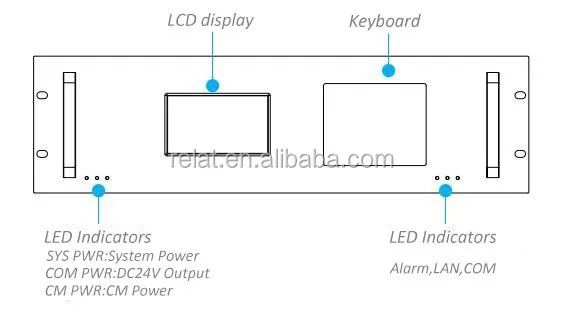

Configuration Structure

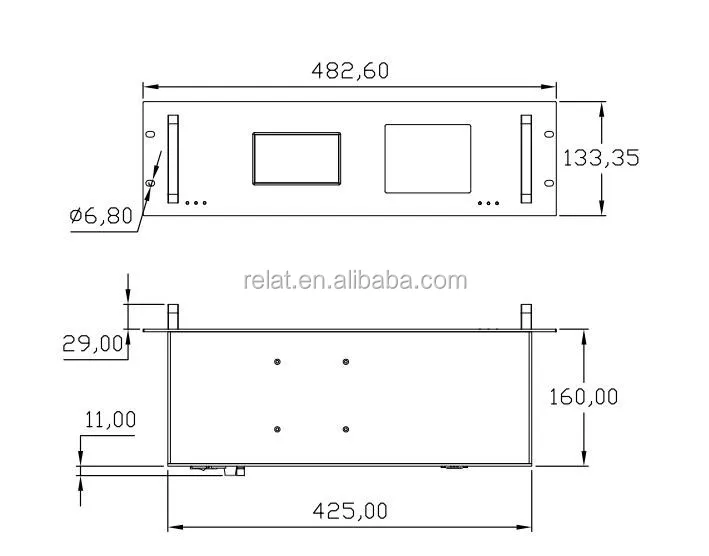

Dimention

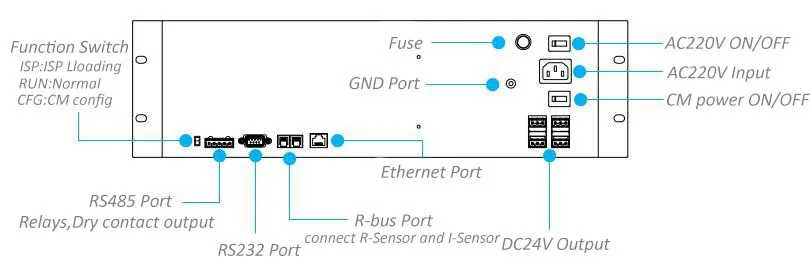

Interface


LCD Display

Loading Interface

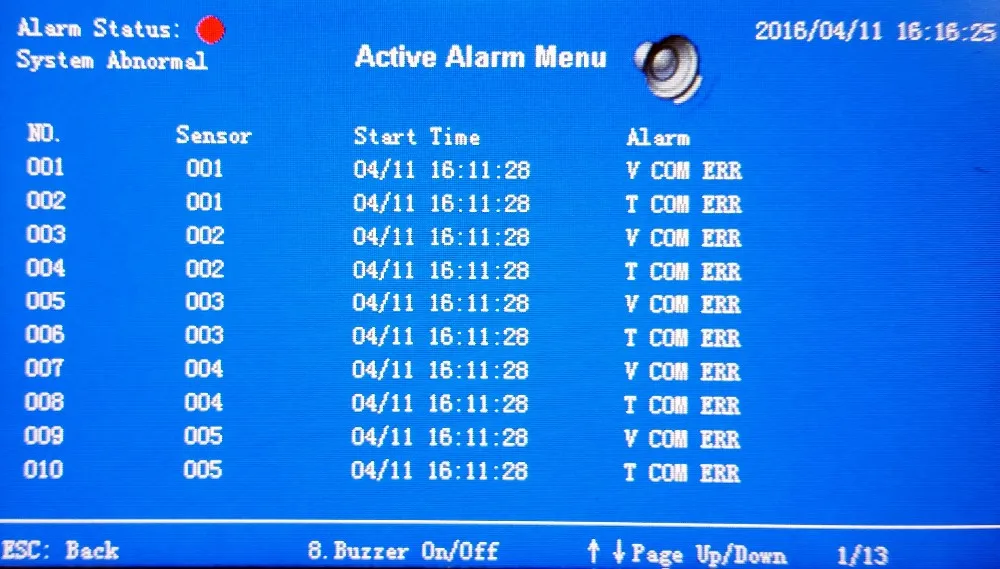

Alarm Showing

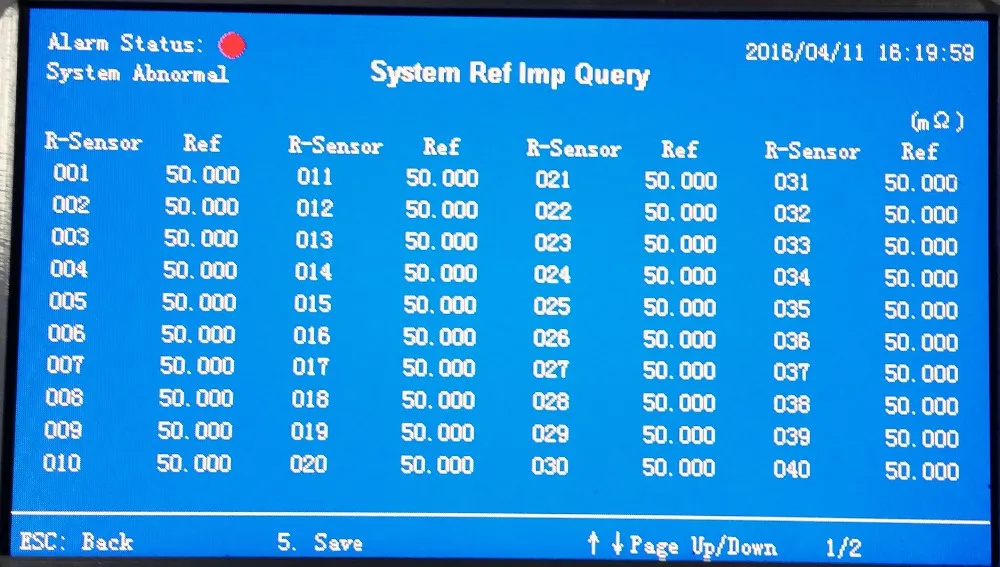

Impedance Reference Showing

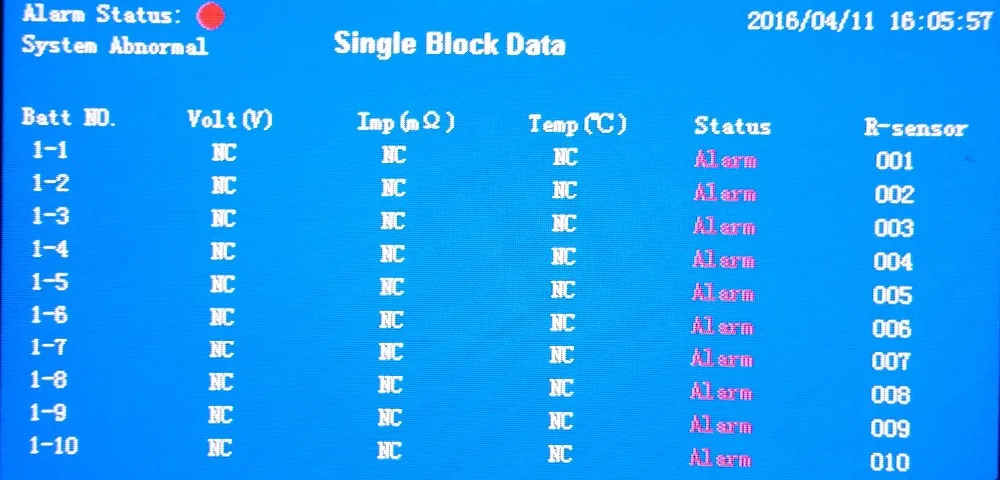

Single Block Data Showing

Product Details Show
InstalIation Process

Step 1

Determine battery numbers and Install the Kelvin washers
Step 2

Connect the battery cables.

Step 3
Install battery sensor BM3KRS

Step 4

Install Current Detector BM00IS and current transformer

Step 5

Connect R-bus communication cable to all R-Sensor and I-Sensor

Step 6

Mount Control Module at cabinet and connect all cables

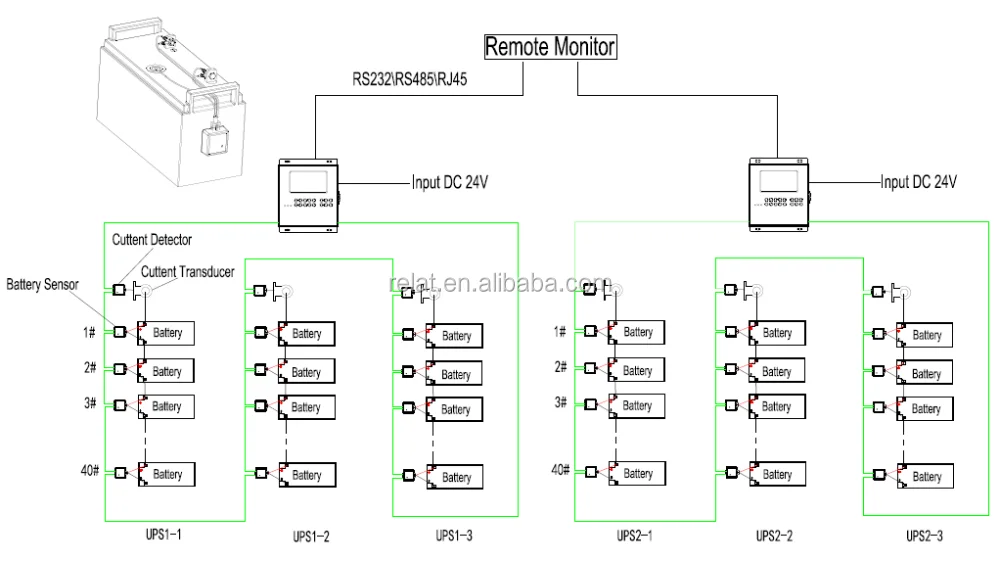

Application
Certification
Typical User

ONE COMMERCIAL BANK IN CHINA

In 2011, RELAT won the bidding on the BMS project from one commercial Bank with all 36 branches in China. Now, there are more than 10,000 blocks batteries of the bank in good conditional running. In the domestic market, RELAT had become the first supplier of Battery Monitor System in large commercial bank project with implementation experiences..

One Data Center  of China Securities and Futures

Total 13,253 blocks,cogfig as below

22 sets x 3 strings x 44 blocks

21 sets x 3 strings x 47 blocks
8 sets x 2 strings x 44 blocks

4 sets x 1 string x 33 blocks
23 sets x 3 strings x 44 blocks

24 sets x 3 strings x 47 blocks
4 sets x 1 string x 33 blocks

ONE SITE OF AIRLINE IN CHINA



Model:BMS BM3000

Quantity:Total 1,168 blocks

Config:4 sets x 1 string x 40 blocks

          24 sets x 1 strings x 42 blocks



FAQ

Q1. Can I have a complete demo set order for RELAT BMS?

A: Yes, we welcome a complete demo set order of RELAT BMS for verification test.

Q2. What about the lead time?

A:Sample needs 3-7 days, mass production or custom product need 2-4 weeks.

Q3. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-8 days to arrive. Airline and sea shipping also optional.

Q4. How to proceed an order for RELAT BMS?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms and places deposit for formal order.
    Fourthly We arrange the production.

Q5. Is it OK to print my logo on the Sensor and Control Module?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 12 months warranty to our products.
