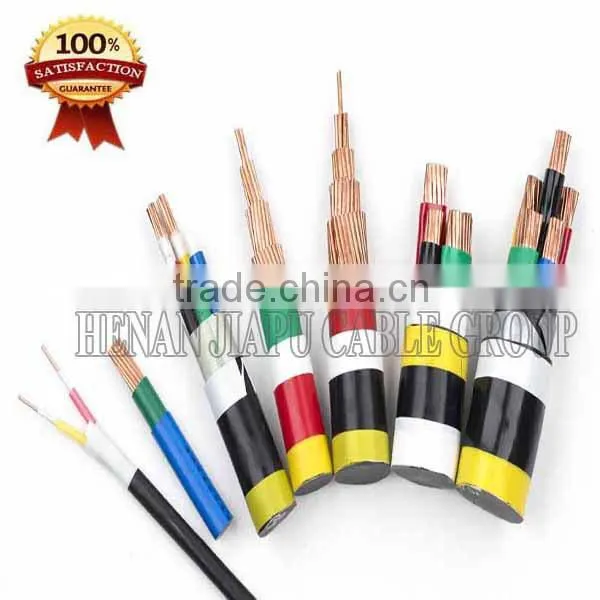

Control Cable with pvc insulation & sheath
Control cable
1) max. Rated temperature of the conductor is 90oc
2) max. Short-circuit temperature of the conductor shall not exceed 250oc
3) max. Sustaining period not ecxeed 5 seconds.
4) installation temperature of cable shall not below 0oc.
5)recommended permissible bending radius:
A)for non-armormed cable, shall not be less than 6 times of the cable's overall diameter.
B)for armored or copper tape shielded cable, shall not be less than 12 times of the cable's overall diameter.
C)for soft cable with shield layer, shall not be less than 6 times of the cable's overall diameter.
CONTROL CABLE
1 PVC insulated & sheathed control cable
1.1 PVC insulated & sheathed control cable is suitable for connecting wires between electric equipments in controlling, monitoring loop and protecting circuit at rated voltage up to and including 600/100V (A. C. ). The product has not only excellent characteristics in electric and mechanical purpose but also in performances of chemical corrosion resistance, heat-aging, environmental stress and flame-retardant. The product has simple construction and convenient to use and could be laid with no restriction of different levels.
Our product of PVC insulated and sheathed control cable can be manufactured according to the Chinese Standard GB9330-88, which was complied with reference to IEC227, IEC502 and the Standards of Germany, American, Japan and U. S. S. R for control cable.
1.2 Flame-retardant control cable
Flame-retardant control cable is suitable for connecting wires between electric equipments with a special flame-retardant requirement in controlling, monitoring loop and protecting circuit at rated voltage up to 600/1000V(A. C. ). Our flame-retardant control cable includes A class flame-retardant control cable, special flame-retardant control cable, low smoke halogen free flame-retardant control cable, low smoke low halogen flame-retardant control cable, XLPE insulated control cable and XLPE insulated flame-retardant control cable.
2 Applications
2.1 Rated voltage U0/U should be 450/750 V~600/1000V
U0~Valid value of the voltage between main insulated conductor and earthing (metal shield, metal sheath of environment dielectric).
U~valid value of voltage between any two phases conductor in multicourse cable or single core cable system.
When AC. System is applied, the rated voltage of cables should be at least equal to the nominal voltage of the system. When DC. System is applied; The nominal voltage of this system should not be more than the rated voltage of the system by 1.5 times.
2.2 The permitting long-term operating temperature of cable conductor should be
PVC insulation: 70
Chemical Sioplascable: 90
Irradiation XLPE: 105~135
2.3 The installing temperature of cable should not be less than 0. Recommending permitted bending radius:
Non-armored cable: Not less than the overall diameter f cable by 6 times
Shielded flexible cable: Not less than the overall diameter of cable by 6 times
2.4 The performances of electric and physical machinery shall be conform to the requirements of Chinese Standard GB9330Plastic insulation armoured cable.
2.5 The flame-retardant performance of flame-retardant armoured cable shall be conform to the requirements of Test method for electric cable and wire(same as IEC332).
2.6 Characteristic of low smoke halogen free (only for low smoke halogen free flame-retardant armoured cable).
Halogen free performance: Conform to the requirement of IEC754Hydrogen-halogen acid gas quantity test.
Low smoke character performanceconfirm to the requirement of GB12666.7Gas consistence of Wire and cable buring test.
Low toxicity performance: Conform to requirement of NES713Measurement of toxicity index.
3 Type and main applications of cable shown in tables
Specification
Name |
Section Area(sq.mm) |
No.of Core |
Application Site |
Copper Conductor,PVC Insulated and Sheathed Control Cable |
0.75,1.0,1.5,2.5 |
1-16 |
Permanent installation indoors, in cable ditches or pipes |
4,6 |
2-14 |
||
10 |
2-10 |
||
Copper Conductor,PVC Insulated and Sheathed ,Braiding Shielded Control Cable |
0.75,1.0,1.5,2.5 |
2-61 |
Permanent installation indoors, in cable ditches or pipes where shielding is required |
4,6 |
2-14 |
||
10 |
2-10 |
||
Copper Conductor,PVC Insulated and Sheathed,Copper-tape Screened Control Cable |
0.75,1.0,1.5,2.5 |
4-10 |
Permanent installation indoors, in cable ditches or pipes where shielding is required |
4,6 |
7-61 |
||
10 |
4-10 |
||
Copper Conductor,PVC Insulated and Sheathed,Steel tape Armoured Control Cable |
0.75,1.0,1.5,2.5 |
7-16 |
Permanent installation indoors, in cable ditches, Be able to withstand stronger external mechanical force |
4,6 |
4-14 |
||
10 |
4-14 |
||
Copper Conductor,PVC Insulated and Sheathed,Flexible Control Cable |
0.5-2.5 |
4-61 |
Installation indoors where flexibility and movability are required |
Copper Conductor,PVC Insulated and Sheathed ,Braiding Shielded Flexible Control Cable |
0.5,0.75,1.0 |
4-61 |
Installation indoors where flexibility shielding and movability are required |
1.5,2.5 |
4-48 |
||
Copper Conductor,XLPE Insulated and PVC Sheathed Control Cable |
0.75,1.0,1.5,2.5 |
2-16 |
Permanent installation indoors, in cable ditches or pipes |
4,6 |
2-14 |
||
10 |
2-10 |
||
Copper Conductor,XLPE Insulated,Braiding Shielded,PVC Sheathed Control Cable |
0.75,1.0,1.5,2.5 |
2-61 |
Permanent installation indoors, in cable ditches or pipes where shielding is required |
4,6 |
2-14 |
||
10 |
2-10 |
||
Copper Conductor,XLPE Insulated,Stee-tape Armoured,PVC Sheathed Control Cable |
0.75,1.0,1.5,2.5 |
7-61 |
Permanent installation indoors, in cable ditches,pipes or underground.Be able to withstand stronger external mechanical force |
4,6 |
4-14 |
||
10 |
4-10 |
||
|
Note:
Due to the limited space, all kinds of spec. can't be shown here. For more spec. request, please contact me freely.

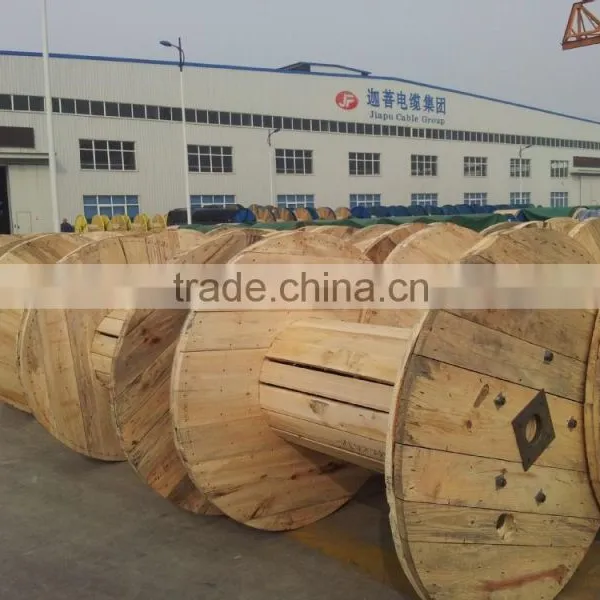

Packaging we used for wire or cable:
1) All wooden drum
2) Iron - wooden drum
3) All iron drum
Shipping by container.
We can design and manufacture wires & cables according to the standards of GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Our products have been widely supplied to power utilities, electrical materials distributors and dealers, construction and engineering firms, electrical contractors or industrial companies all over the world, as well as Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia and so on. Welcome your OEM and ODM orders.
Our main products are as follows:
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;

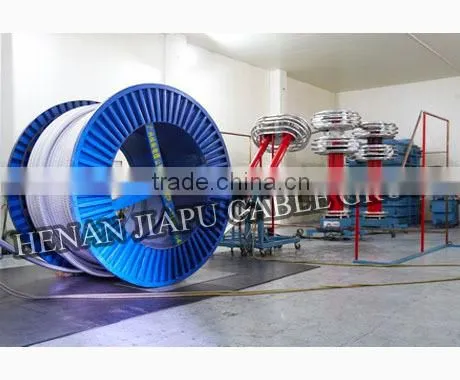

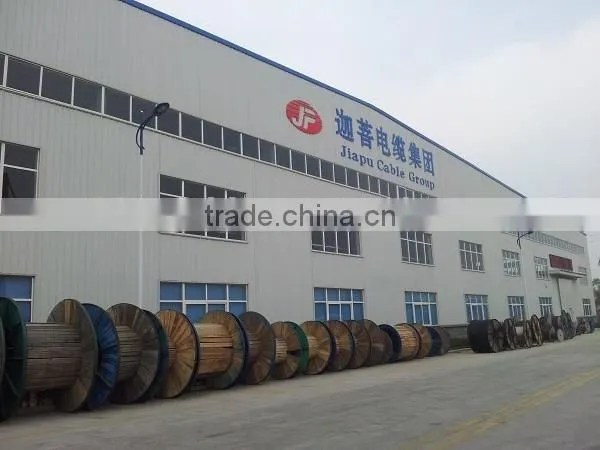

Workshop and Inspection
1. How many years has Henan Jiapu Cable Group been in production?
Founded in October 1998 by Mr. Gu, our facility has three separate manufacturing workshops within its 100,000-sq.-ft. building. In 2012, we operates in a new 666,000 sq. foot state-of-the-art facility in Xiaodian Industry Park.,Xinxiang, Henan ,China
2. What kinds of products does Jiapu Cable manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;

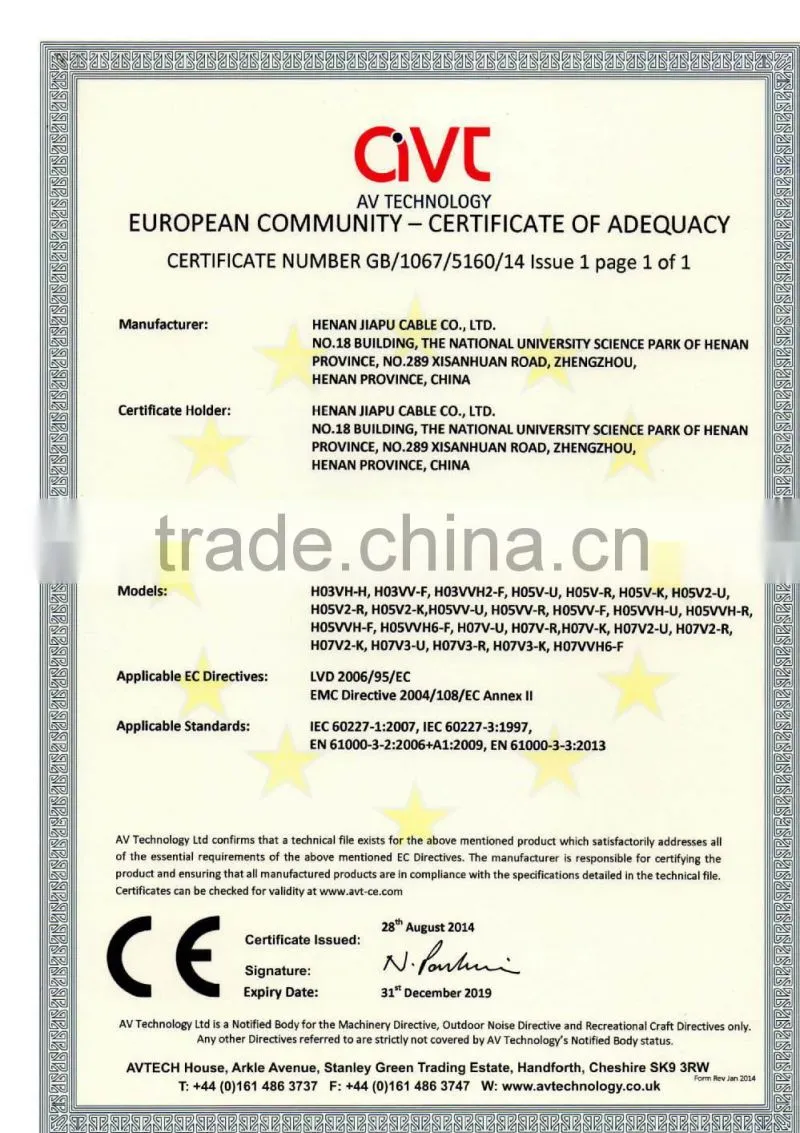

3. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS
4.Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc.
5. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
6. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.
7. What is the production capacity per week or per month ?
For the bare conductor, we can finish 3000 tons within one month. For power cables, that depends on the type and size. The total output value per month is approx. USD3,000,000.00 for insulated aluminum cables and that is approx. USD8,000,000.00 for insulated copper cables.
