control cable
Specifications
1) Copper conductor PVC/XLPE control cable
2) Widely used IEC products
3) Excellent performance and competitive prices
Application
450/750V copper conductor control cable is widely used for fixed wiring in control, monitoring and protection circuits of rated voltage 450/750V and below
Product Description
1) Conductor: solid / stranded copper
2) Insulation: PVC/XLPE
3) Screen: braided copper wire, copper tape or aluminum plastic composite tape
4) Armor: steel tape or steel wire
5) Sheath: PVC
6) Max. conductor DC resistance at 20°c:
| Sectional Area (mm2) | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 |
| Plain Copper (Ω/km) | 36.0 | 24.5 | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 |
| Tinned Copper (Ω/km) | 36.7 | 24.8 | 18.2 | 12.2 | 7.56 | 4.70 | 3.11 | 1.84 |
Product Models
| Code | Description | No. of Cores | Sectional Area (mm2) |
| KVV | PVC insulated and sheathed control cable | 2~61 | 0.75~10 |
| KVVP | PVC insulated and sheathed control cable with braided screen | 2~61 | 0.75~10 |
| KVVP2 | PVC insulated and sheathed control cable with copper tape screen | 4~61 | 0.75~10 |
| KVVP3 | PVC insulated and sheathed control cable with aluminum plastic composite tape screen | 4~61 | 0.75~10 |
| KVV22 | Steel tape armored PVC insulated and sheathed control cable | 4~61 | 0.75~10 |
| KVVP2-22 | Steel tape armored PVC insulated and sheathed control cable with copper tape screen | 4~61 | 0.75~10 |
| KVV32 | Steel wire armored PVC insulated and sheathed control cable | 4~61 | 0.75~10 |
| KVVR | PVC insulated and sheathed flexible control cable | 2~61 | 0.5~2.5 |
| KVVRP | PVC insulated and sheathed flexible control cable with braided screen | 2~61 | 0.5~2.5 |
| KYJV | XLPE insulated PVC sheathed control cable | 2~61 | 0.75~10 |
| KYJVP | XLPE insulated PVC sheathed control cable with braided screen | 2~61 | 0.75~10 |
| KYJVP2 | XLPE insulated PVC sheathed control cable with copper tape screen | 4~61 | 0.75~10 |
| KYJVP3 | XLPE insulated PVC sheathed control cable with aluminum plastic composite tape screen | 4~61 | 0.75~10 |
| KYJV22 | Steel tape armored XLPE insulated PVC sheathed control cable | 4~61 | 0.75~10 |
| KYJVP2-22 | Steel tape armored XLPE insulated PVC sheathed control cable with copper tape screen | 4~61 | 0.75~10 |
| KYJV32 | Steel wire armored XLPE insulated PVC sheathed control cable | 4~61 | 0.75~10 |
| KYJY | XLPE insulated polyolefin sheathed control cable | 2~61 | 0.75~10 |
| KYJYP | XLPE insulated polyolefin sheathed control cable with braided screen | 2~61 | 0.75~10 |
| KYJYP2 | XLPE insulated polyolefin sheathed control cable with copper tape screen | 4~61 | 0.75~10 |
| KYJYP3 | XLPE insulated polyolefin sheathed control cable with aluminum plastic composite tape screen | 4~61 | 0.75~10 |
| KYJY23 | Steel tape armored polyolefin insulated PVC sheathed control cable | 4~61 | 0.75~10 |
| KYJYP2-23 | Steel tape armored XLPE insulated polyolefin sheathed control cable with copper tape screen | 4~61 | 0.75~10 |
| KYJY33 | Steel wire armored polyolefin insulated PVC sheathed control cable | 4~61 | 0.75~10 |
Our main products are as follows:
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;

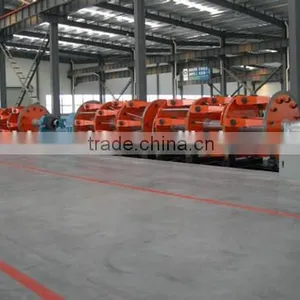

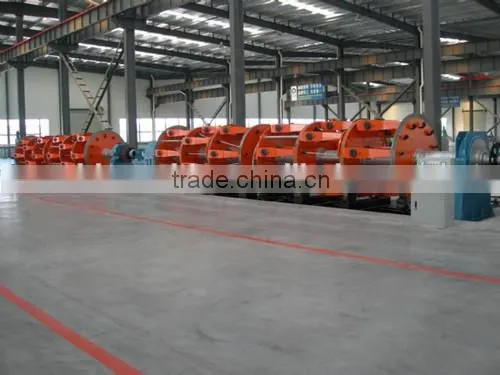

Workshop and Inspection
1. How many years has Henan Jiapu Cable Group been in production?
Founded in October 1998 by Mr. Gu, our facility has three separate manufacturing workshops within its 100,000-sq.-ft. building. In 2012, we operates in a new 666,000 sq. foot state-of-the-art facility in Xiaodian Industry Park.,Xinxiang, Henan ,China
2. What kinds of products does Jiapu Cable manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on;
3. What kind of certifications do you have?
SABS, CE, ISO9001-2000, SGS
4.Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc.
5. Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
6. What is the min.order quantity ?
It depends on the type and size of electrical wires and cables. For some small electrical wires, 100 meters can be accepted .But for the power cables with medium or high voltage, that should comply with the property of installed equipments. Anyhow,we will try our best to solve the problem and meet with the requirement If you have special request.
