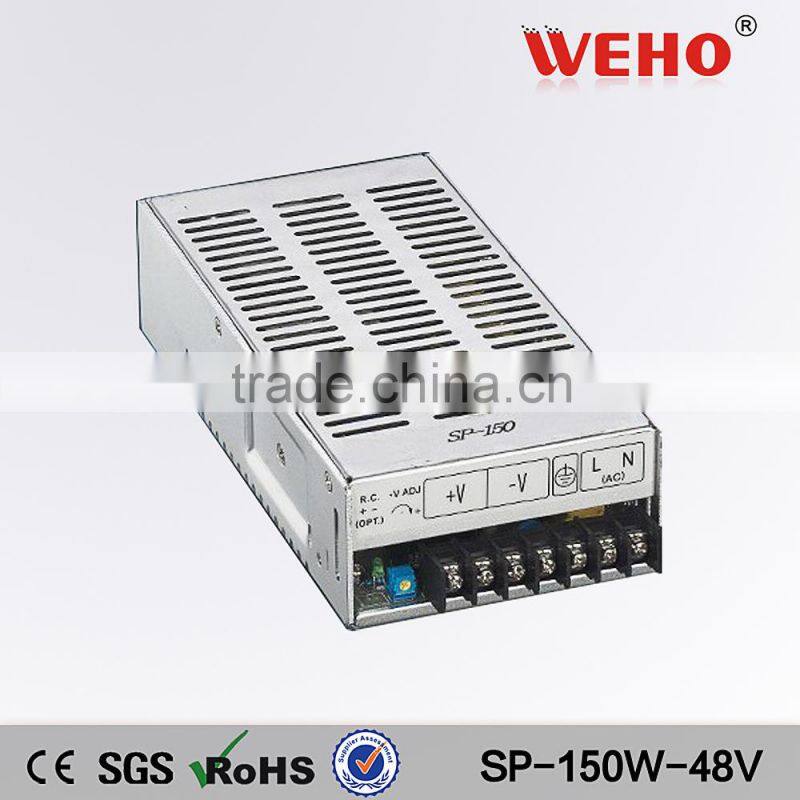

150w Led SP-150-48 48v 3a Power Supply With PFC

Name: 150w Led SP-150-48 48v 3a Power Supply With PFC
Brand: weihao
SKU: 120498511
Availability: InStock

Zhejiang Weihao Electronic Co., Ltd.

US$ 23 - 26 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

weihao

Model Number:

SP-150-48

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name weihao

Model Number SP-150-48

Output Power 101 - 200W

Output Type Single

Input Voltage Other, 110/220V

Output Voltage 48V

Output Frequency 47-63HZ

Output Current 3.2A

150w Led SP-150-48 48v 3a power supply with PFC

Notice:

a.We do have enough ability to produce your customized order

b.Samples are available

c.High quality and competive price .

d.If need samples, pls click this link of our aliexpress shop, much more discount on our store./store/200977

e.2 years warrenty ,buy with confidence

Model	SP-150-5	SP-150-12	SP-150-24	SP-150-48
DC Voltage	5V	12V	24V	48V
Rated Current	30A	12.5A	6.3A	3.2A
Current Range	0-30A	0-12.5A	0-6.3A	0-3.2A
Rated Power	150W	150W	150W	153.6W
Ripple & Noise	100mVp-p	100mVp-p	150mVp-p	250mVp-p
DC Adjustment Range	-5%,+10%	-5%,+10%	-5%,+10%	-5%,+10%
Voltage Tolerance	±2%	±2%	±1%	±1.0%
Line Regulation	±0.5%	±0.5%	±0.5%	±0.5%
Load Regulation	±0.5%	±0.5%	±0.5%	±0.5%
Setup, Rise, Hold Up Time	600ms,30ms,20ms at full load
INPUT
Voltage Range	85~264 VAC47-63Hz;120~370VDC
Efficiency	75%	80%	83%	84%
Inrush Current	Cold start 40A/230VAC
Leakage Current	<2mA/240VAC
Over Load	105%-150%
Over Load	Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage	110%~135%
Over Voltage	Protection type: Shut down o/p voltage, re-power on to recover
Over Temp.	TSW1(Power transistor) When temp .in 95±5 °C shutdown o/p voltage temp . <95±5 °CO/I auto-recovery.

Working Temp. Humidity	-10°C~+50°C; 20%~90%RH
Storage Temp. Humidity	-20°C~+85°C; 10%~95%RH
Temp. Coefficient	±0.03%/°C(0~50°C)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P:3KVAC I/P-O/P:1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC
STANDARD
Safety Standard	Design refer to UL1950,TUV EN60950
EMC Standard	Design refer to EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024
OTHERS
Dimension	1999950mm(LWH)
Weight	0.76Kg
