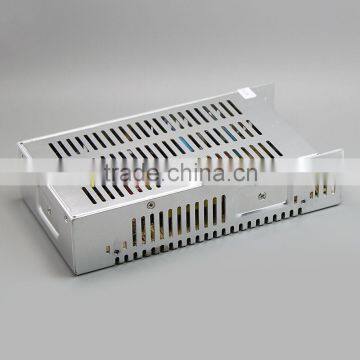

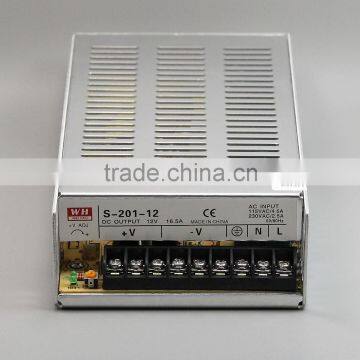

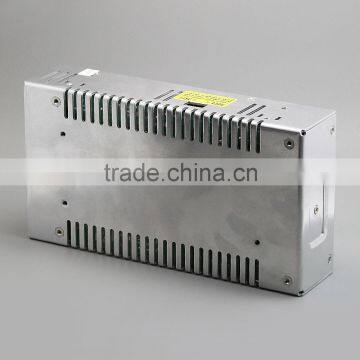

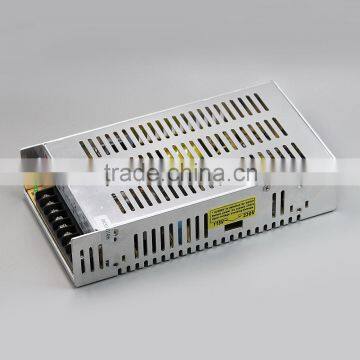

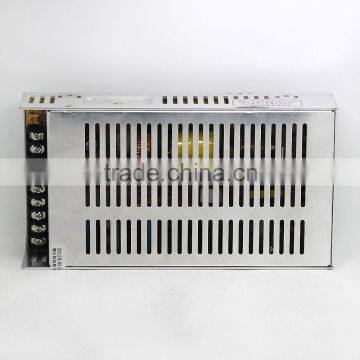

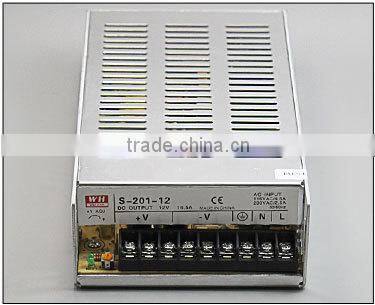

201W Load Switch Manufacturers S-201-48 48v 4.2a Power Supply

Model

S-201-5

S-201-12

S-201-15

S-201-24

S-201-27

S-201-48

output

DC voltage

5V

12V

15V

24V

27V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

±1%

Rated current

40A

16.5A

13.4A

8.3A

7.4A

4.2A

Current range

0~40A

0~16.5A

0~13.4A

0~8.3A

0~7.4A

0~4.2A

Rated power

200W

198W

201W

199.2W

199.8W

201.6W

Ripple&noise

120mvp-p

150mvp-p

150mvp-p

180mvp-p

180mvp-p

200mvp-p

DCvoltage ADJ.range

±10%

±10%

±10%

±10%

±10%

±10%

input

Voltage range

90~132VAC/180~264VAC(selected by switch),255~373VDC

frequency

47~63HZ

AC current

4.5A/115VAC,2.5A/230VAC

efficiency

78%

80%

80%

82%

82%

83%

Inrush current

Cold start current 25A/115VAC,50A/230VAC

Leakage current

< 3.5mA/240VAC

protection

overload

Rated output power105%~135%  start over load protection

protection type :rated current limit ,auto-recovery after fault condition is removed

Over voltage

6.8~8.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

33.2~35.6V

54.8~56.6V

Protection type:hiccup mode,auto-recovery after fault condition is removed

Over temperature

inner temperature≥85°C start over temperature protection

Protection mode:cutoff output,auto-recovery after temperature become normal

environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

FitEN55022,CLASSA

others

Dimension

215*115*50mm (L*W*H)

Weight/packing

0.87kg/24pcs/22kg/0.049 m³/1.72CUFT
