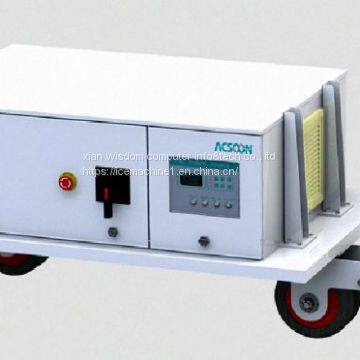

AF400W Series Solid-State GPU / 400Hz Frequency Converter

Acsoon® AF400W series is one of the most popular static frequency converter. AF400W is designed to change the power at 50Hz or 60Hz to aircraft quality power at 400Hz.

It integrates IGBT and other modules made by Mitsubishi,Siemens and Infineon with PWM switching technology and combines micro controller (digital signal control) design for quick response and higher reliability.

Acsoon ® AF400W as a power source to develop aircraft quality 400hz Power. It is mostly used in aircraft production manufacturing,aviation R&D,military/Civil hangar,maintenance plant,aerospace

equipment,military airport tarmac and wells,aviation factories.

Main Features：

★ Automatically voltage compensation system,ideal voltage at aircraft connector

★ Self diagnose system which would show error code/faulty explanation on the VFD screen

★ Memory stores 10 events.

★ Galvanically isolated, low harmonic distortion

★ Thoroughly proven advanced SPWM and IGBT technology.

★ Pure Sine wave output.

★ Eco-friendly, high efficiency, low noise

★ 28VDC military interlock

Models Selection

The Acsoon® AF400W series power supply model designation is shown below：
