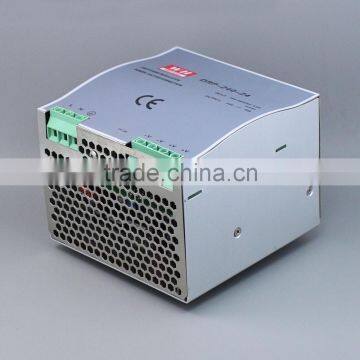

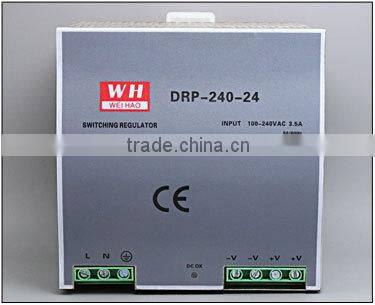

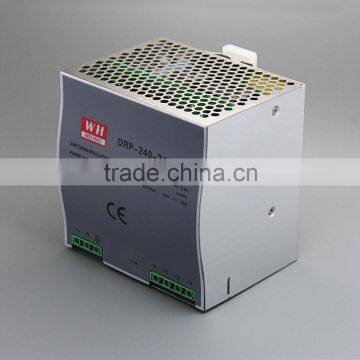

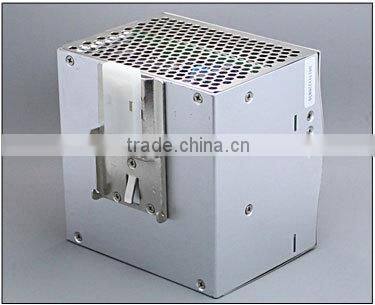

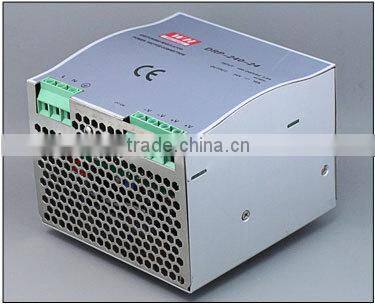

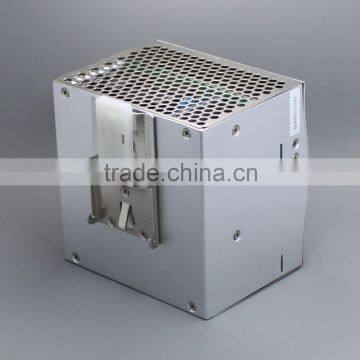

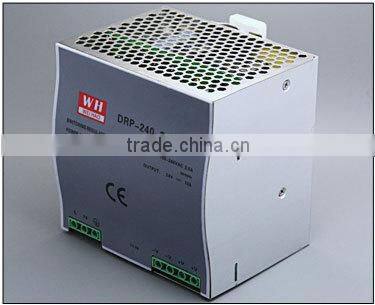

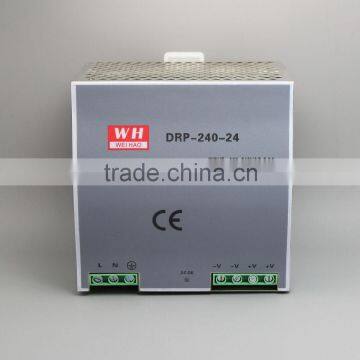

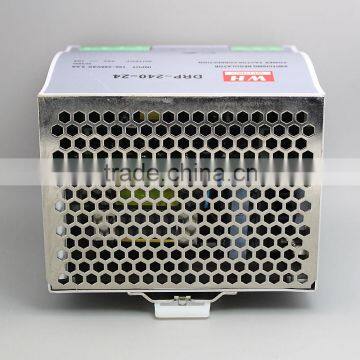

5amp Transformer DR-240-48 48v dc Din Rail Power Supply 240v

Name: 5amp Transformer DR-240-48 48v dc Din Rail Power Supply 240v
Brand: weihao
SKU: 120498631
Availability: InStock

Zhejiang Weihao Electronic Co., Ltd.

US$ 41 - 48.9 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

weihao

Model Number:

DR-240-48

Payment & Shipping

Payment Methods:

Port of Shipment:

NingBo / ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name weihao

Model Number DR-240-48

Output Power 201 - 300W

Output Type Single

Input Voltage Other, AC85~264V 124~370VDC

Output Voltage 48V

Output Frequency 47~63HZ

Output Current 5A

5amp transformer DR-240-48 48v dc din rail power supply 240v

Notice:

a.We do have enough ability to produce your customized order

b.Samples are available

c.High quality and competive price .

d.If need samples, pls click this link of our aliexpress shop, much more discount on our store./store/200977

e.2 years warrenty ,buy with confidence

Model	DR-240-24	DR-240-48
DC output voltage	24V	48V
Output voltage range(Note:2)	±1%	±1%
Rated output current	10A	5A
Output current range	0-10A	0-5A
Wave and noise(Note:3)	80mVp-p	150mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%
Load stability(Note:5)	±1%	±1%
DC output power	240W	240W
Efficiency	84%	85%
Adjustable range for DC voltage	21.6~26.4V	43.2~52.8V%
AC input voltage range	88~264VAC 47~63Hz;120~370VDC
Input current	3.5A/115V 1.8A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery
Over-voltage protection	30~34V	54~60V
High-temperature protection	100°c±5°c(TSW1)
Temperature coefficient	±0.03%/°c(0~50°c)
Setup, rise , hold up time	800ms, 40ms,20ms/230VAC 800ms, 40ms, 20ms/115VAC
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	125.5×125.2×100m
Weight	1.2Kgs 20PCS/14Kg/1.1CUFT
Safety standards	Meet UL 1012 requiement (Not apply for the mark)
EMC standards	Meet FCC PART 15 J Conduction class B
