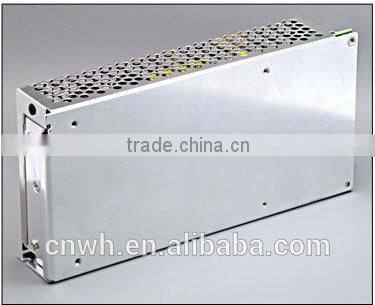

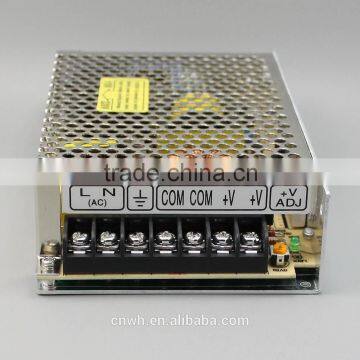

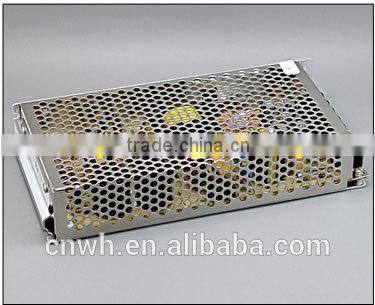

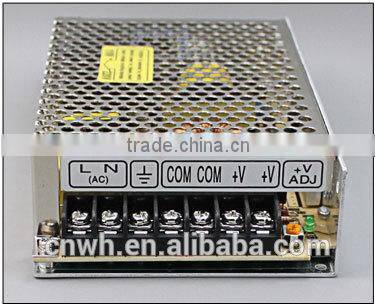

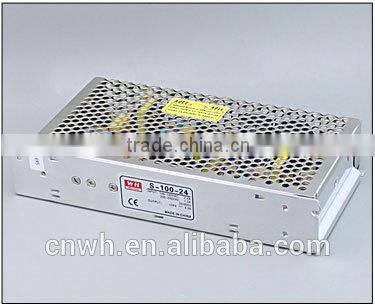

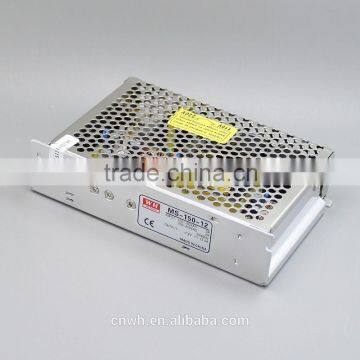

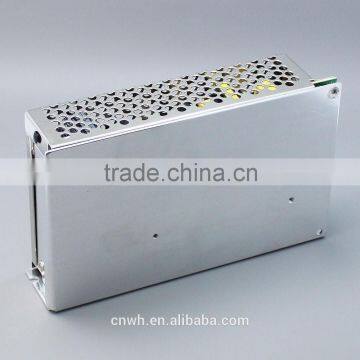

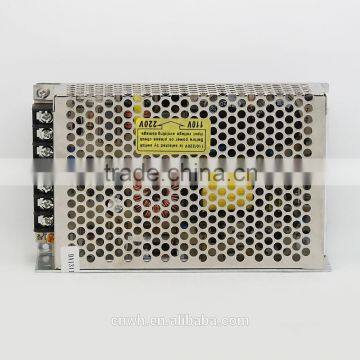

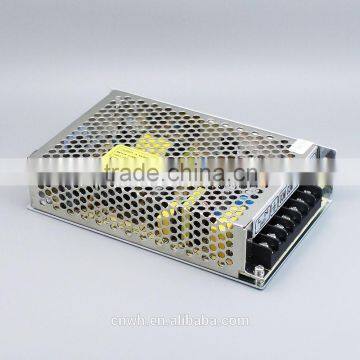

Made in China Auto Voltage Stabilizer Switch Power Supply (ce+rohs)

Name: Made in China Auto Voltage Stabilizer Switch Power Supply (ce+rohs)
Brand: weho
SKU: 120487989
Availability: InStock

Zhejiang Weihao Electronic Co., Ltd.

US$ 2 - 15 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

weho

Model Number:

MS-100-15

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name weho

Model Number MS-100-15

Output Power 51 - 100W

Output Type Single

Input Voltage Other, 110v/220v, 110/220VAC

Output Voltage 15V

Output Frequency 50/60HZ

Output Current 7A

Made in china Auto Voltage Stabilizer Switch Power Supply (ce+rohs)

(Model) (Specification)	MS-100-5	MS-100-12	MS-100-15	MS-100-24
DC output voltage	5V	12V	15V	24V
Output voltage range	2%	1%	1%	1%
Rated output current	20A	8.2A	6.6A	4.2A
Output current ranqe	0-20A	0-8.2A	0-6.6A	0-4.2A
Wave and noise	75mVp-p	75mVp-p	75mVp-p	75mVp-p
Inlet stability	0.5%	0.5%	0.5%	0.5%
Load stability	1%	0.5%	0.5%	0.5%
DC output power	100W	100W	100W	100W
Efficiency	75%	78%	78%	82%
Adjustable range for DC voltage	+10,-5%	10%	10%	10%
AC input voltage range	AC 170-264VAC 47-63Hz,240-370VDC
Input current	0.65A/230V
AC Inrush current	Cold-start current 36A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%-150% Type: pulsing hiccup shutdown Reset: auto recovery
Over-voltage protection	....
High-temperature protection	....
Temperature coefficient	0.03%/C(0~50C)
Setup, rise, hold up time	200ms,100ms,30ms
Vibration	10~500Hz, 2G 10min,/1 cycle. Pariod for 60min,Each axes
Withstand voltage	Input and output internal:1.5KvAC,Input and enclosure:l.5KvAC,Output and enclosure:0.5KvA
Isolation resistance	input and output internal : input and enclosure, Output and enclosure:500VDC/100M
Working temperature and humidity	-10C~+60C,20%~90%RH
Store temperature and humidity	-20C~+85C,10%~95%RH
Overall dimension	157X97X38mm
Weight	0.5kgS
Safety standards	Meet UL 1012 requirement(Not apply for the mark)
