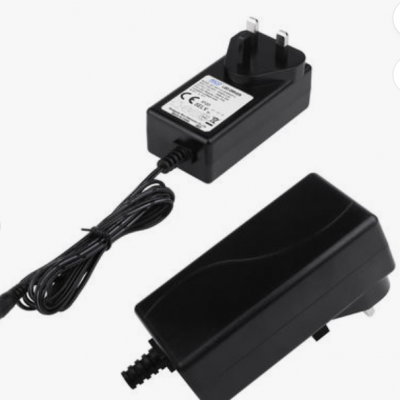

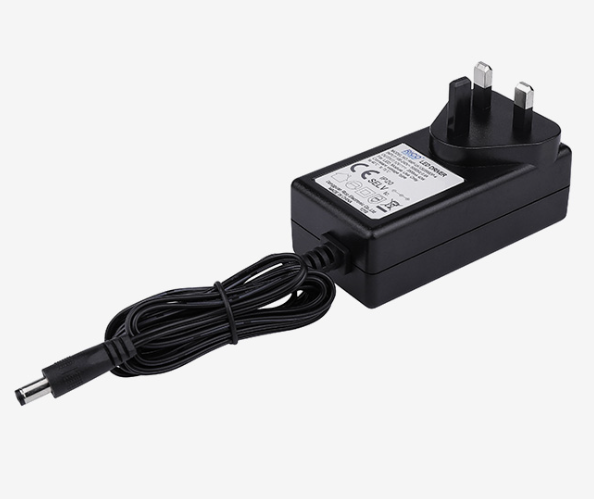

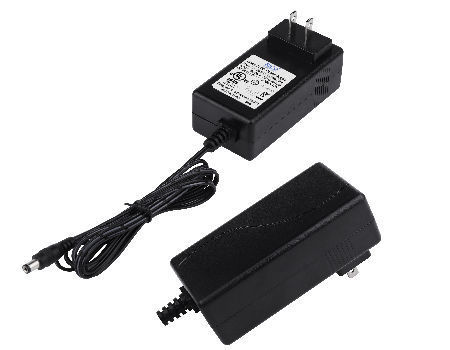

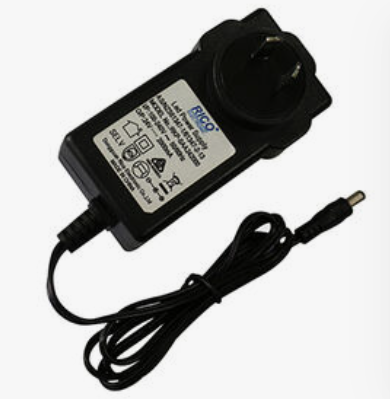

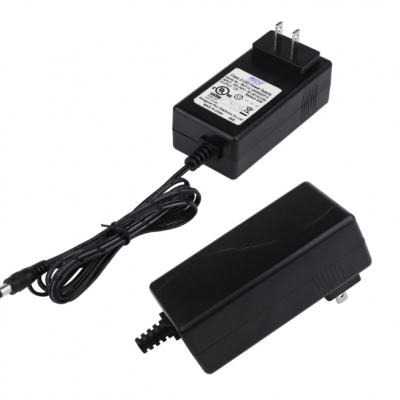

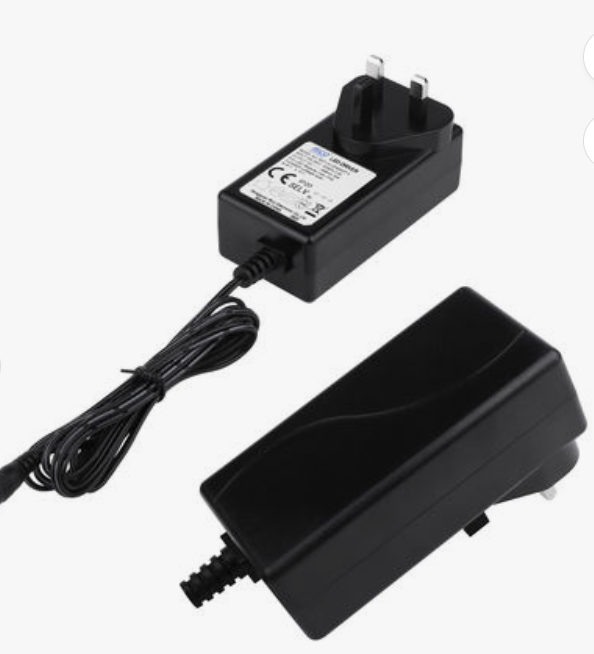

42W 12VDC 3500mA UL/CUL IP20 Indoor Use AC DC Switching Power Supply for LED Lighting Motor Faucets

Input voltage: 100-240VAC

Input frequency range: 50/60Hz

Input current: 0.9A

Input with NEMA 1-15P injection on enclosure

Efficiency: more than 80%

Output voltage: 12VDC

Output current: 3500mA

Output power: 42W

Output with UL 2468, UL 2464, 300V, 80C, 20AWG Min

No loading power consumption: less than 0.1W

With 2-4 hours full load burn-in test and 100% hi-pot test

Operating temperature: -30 to 60℃

Storage temperature: -40 to 80℃

Humidity range: 35 to 80% RH

Constant voltage precision: ±5%

MTBF: ≥ 60000 hours at 25℃

Dimansions: 98x53x56mm

Weights: 0.17kg

Lead time: 15-18 days

Universal AC input/full range

Certificates: UL/CUL

Efficiency standard: DOE VI, NRCan, ERP, CEC, CoC V5 Tier2

Protections: SCP, OVP, OCP and OTP

Safety standard: UL 8750, UL1310 FCC part 15 Subpart B, CEC Level VI, Nrcan:amendent 14 ICES-005: 2018(issue 5) For dry,Damp,location use

Safety compliance: UL1310+UL8750

Primary to secondary with safety isolated

High sturdyness and light weight

Low working temperatures

Low noise, energy saving and eco-friendly

Fire-proof plastic case and cooling by free air convection

Compact size and low cost

Low ripple design

3 years lifespan(working time: 2-5 years)

OEM/ODM orders are accepted

Home appliances

POS machines

CCTV camera

Medical equipment and more
