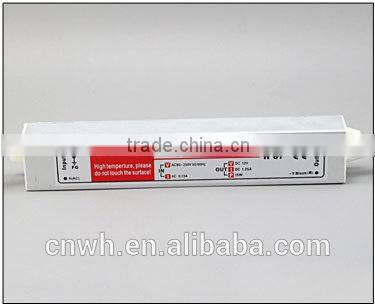

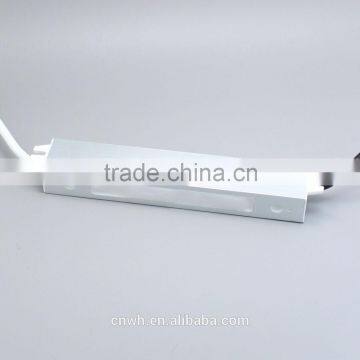

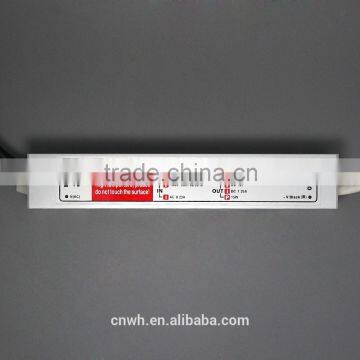

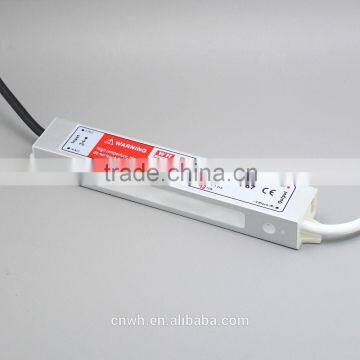

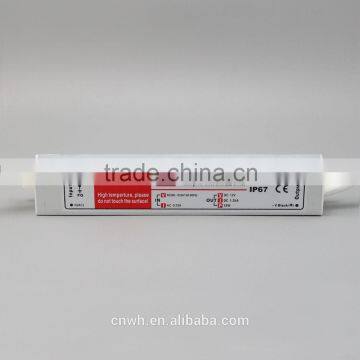

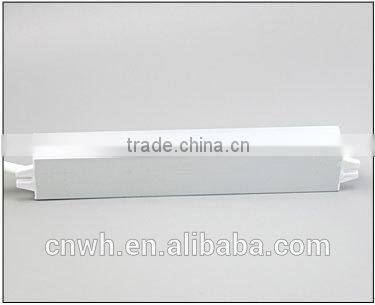

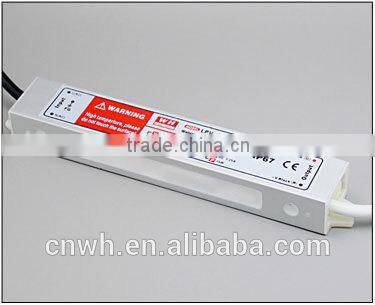

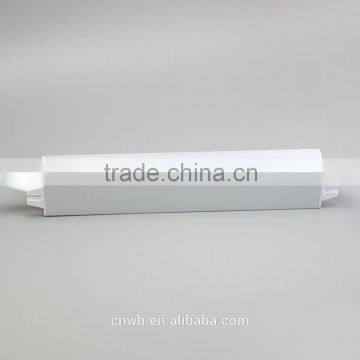

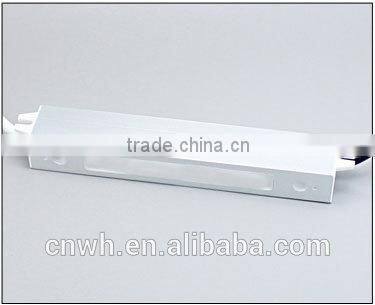

light weight 15w single output waterproof power 220v 15v transformer

FOB Price

USD $14.99 - $18.99 / Piece

1 Piece(Min.Order)

Product Details

POWER SUPPLY

Model	LPV-15-12	LPV-15-24
DC output voltage	12V	24V
Output voltage error	±1%	±1%
Rated output current	1.25A	0.63A
Output current range	0-1.25A	0-0.63A
Wave and noise	80mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%
Load stability	±0.5%	±0.5%
DC output power	15W	15W
Efficiency	81%	83%
AC input voltage range	85-264VAC
Input current	0.5A/115V 0.25A/230V
AC impulse current	Cold-start current 13A/115V 26A/230V
Leakage current	<0.5mA/240VAC
Over load protection	105%~150% rated output power
	Protection:Hiccup mode,recover automatically
Over voltage protection	13~16V	28~32V
	Protection:Shut down output voltage
Short circuit protection	Protection:Hiccup mode
Temperature coefficient	±0.03%(050)
Setup rise hold up time	100ms,60ms,30ms
Vibration	10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH
Working temperature and humidity	-10~+60°C, 20~90%RH
Store temperature and humidity	-20~+85°C, 10~95%RH
Overall dimension	116×29×20mm 126PCS/CARTON
Weight	0.12KG
Safety standards	Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved
EMC	EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547

we use 4 trips to reinforce our carton,the international standards package methods guaranteed our goods safety during transportation

we are a professional manufacturer of power supplies ,all of our products have approved CE ROHS and ISO9001:2008
