Specifications

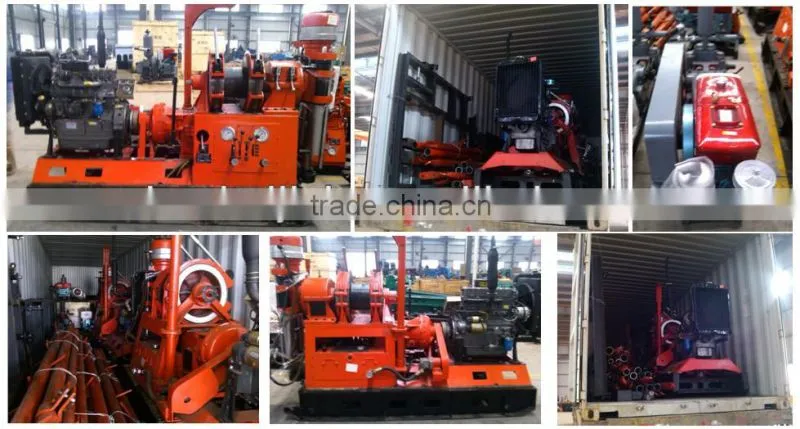

drilling rig XY-42A is mainly adapted to water well, core sampling, engineering exploration, foundation piles with mud pump1, It is an improved product based on XY-42 drilling rig.
2, It adopts guide rod structure besides all the technical characteristic and advantages of XY-42 model.
3, it is a kind of hydraulic-driven spindle, diamond-bit or tungsten-carbide bit, small-diameter core drill with fairly powerful drilling force.
4, It is mainly suitable for water well and exploration of metal or non-metal solid mineral ore bed.
5, It is widely applied in core drill with diamond bit or hard tungsten-carbide-tipped bit in the field of geology, metallurgy, coal mine, hydrological and engineering drilling.
6, It can also be used in the fields of superficial-zone petroleum and natural gas mining, mine workings ventilation and water discharge tunnel drilling as well as foundation pile construction in large diameter.
7, the structure is compact, light weight, powerful capacity, multiuse, steady performance, high responsibility and high standardization and generalization.
| Bore depth | core drilling 500~1100m |
| foundation pile 100m | |
| water well 200m | |
| spindle rotation angle | 0~360° |
| spindle rotary speed | forward 82, 151, 215, 313, 251, 463, 661, 961 rpm |
| reverse 67, 205 rpm | |
| spindle max. rotary torque | 3200N.m |
| spindle stroke | 600mm |
| ID of spindle | 93mm |
| power | electric motor 30kW, diesel 42KW |
| spindle max. lifting force | 80KN |
| spindle max. pressuring force | 60KN |
| overall dimension (L X W X H) | 2730 x 1100 x 1860mm |
| steel wire diameter | 16mm |
| steel wire length in winding drum | 90m |
| max. hoist force | 30KN |
| Weight (without power unit) | 2000kg |
