XY-1A is mainly adapted to solid mineral deposit exploration, engineering geology survey and concrete structure inspection hole
It can choose diamond, tungsten carbide or steel granular drill bit according to different strata.
When the end hole is 75mm and 46mm, the max. hole depth is 100m and 180m. the max. open hole diameter is 150mm.

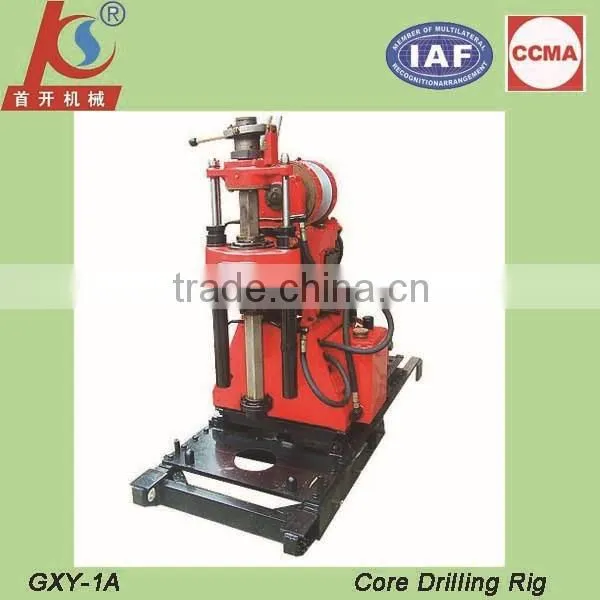

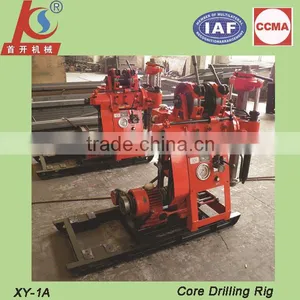

The characters of XY-1A core drilling rig are listed below:
1, it has oil hydraulic automatic feeding system, improved the drilling efficiency and reduce the labor intensity.
2, adopts ball clamp device rather than chuck and assembled with clamp positioning device to withdraw rods without turn off
3, It has the pressure gauge to monitor the situation inside the hole.
4, centralized hand shanks make operation easy.

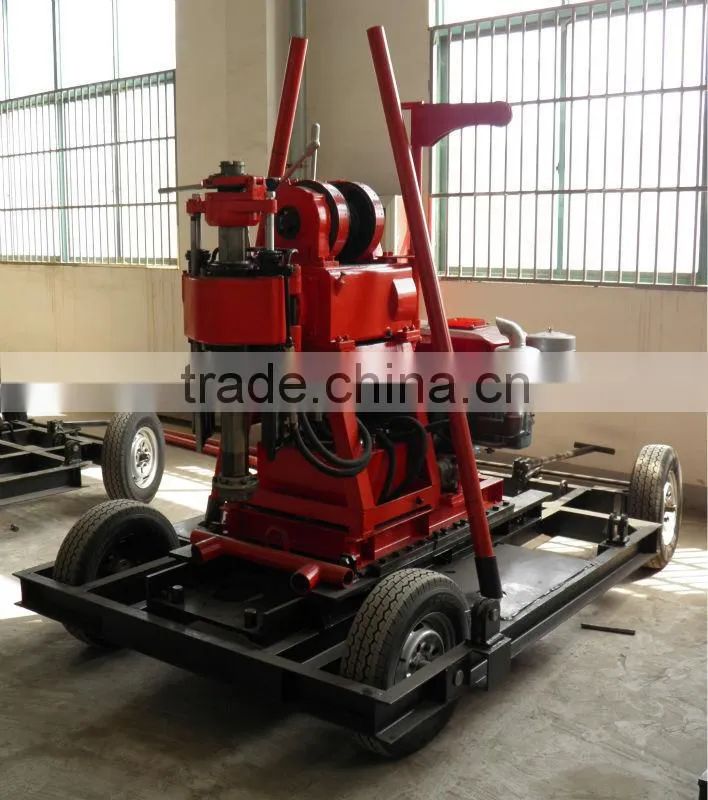

5, compact structure, drilling rig and engine are installed on one chassis. small occupying area.
6, light weight, good disassembling, easy to transport, suitable for working on plain and mountain.
Main specification
bore depth 100m, 180m
max. open hole diameter 150mm
end hole diameter 75mm, 46mm
drill rod diameter 42mm
hole inclination angle 90~75°
drilling rig dimension 1433 x 697 x 1273mm
driling rig weight 420kg
hoist
max. lifting force (single wire) 11KN
drum rotation speed 121, 76, 36 rpm
drum diameter 140mm
steel wire diameter 9.3mm
steel wire length 35m
rotation
spindle rotary speed 1010, 790, 470, 295, 140 rpm
spindle stroke 450mm
spindle max. feeding force 15KN
spindle max. lifting force 25KN
electric motor power 11KW, 1460 rpm
diesel power 12KW, 2200 rpm
