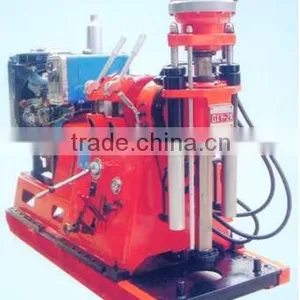

Help CenterSK GXY-2K Portable Water Well Drilling Rig for Sale
Related Products
-
GXY-2 Portable Water Well Drilling Rig for SaleNegotiableMOQ: 1 Set -
SK GXY-2 200m Depth Portable Water Well Drilling Rigs for SaleNegotiableMOQ: 1 Set
-
SK XY-44A Portable Deep Water Well Drilling Rig for SaleNegotiableMOQ: 1 Set
-
SK XY-200 Portable Water Well Drilling Rigs for SaleNegotiableMOQ: 1 Set
-
SK XY-42A Portable Deep Water Well Drilling Rigs for SaleNegotiableMOQ: 1 Set
Specifications
drilling rig GXY-2K is mainly adapted to water well, engineering geology exploration, survey of solid ore deposit, etc.GXY-2k model drilling rig is suitable for water well drilling, industrial and civilian construction, road, railway, bridge foundation, dam site, mine exploration and other engineering exploring works, as well as small diamter foundation piles. It can choose tungsten-carbide, diamond, auger drill bit according to various strata. This rig features compact structure, light weight, small size and easy disassembling.
Basic Specification
drill depth: 200m
drill rod diameter: 42mm / 50mm
hole inclination: 0~3600
dimension: 1856 x 780 x 1460mm (L X W X H)
weight: 800kg (without power machine)
Gyrator
vertical shaft hole diamter: 46mm
vertical shaft rotation speed:
forward low speed: 56, 97, 153, 211 rpm
high speed: 264, 458, 722, 996 rpm
reverse low speed: 44 rpm
high speed: 206 rpm
vertical shaft stroke: 500mm
vertical shaft rated lifting force: 49KN
vertical shaft rated pressure force: 36KN
vertical shaft max. torque: 1800N.m
Hoist
max. lifting ability (low speed single rope): 20KN
reel speed: 34, 59, 94, 129 rpm
steel rope lifting speed( single rope): 0.38, 0.66, 1.05, 1.44 m/s
steel rope OD: 9.3mm
steel rope length: 465m
Moving device
moving cylinder stroke: 465mm
gap between rig and hole: 330mm
power:
Y160L-15-4 electric motor 15Kw, 1470rpm
2100 diesel 14.6Kw, 1500rpm
