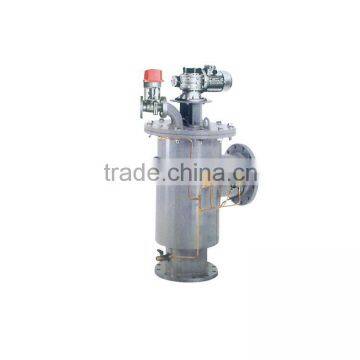

Help CenterPlastic Self-clean Filter for Water Sus304 Mechanical Filter Housing Made in China
Related Products
-
Professional Mechanical Filter Self-clean Filter for Water With CE CertificateUS$ 1,000 - 10,000MOQ: 1 Set -
New Design Mechanical Cleaned Filters High Quality Mechanical Sand Filter With Great PriceUS$ 1,000 - 10,000MOQ: 1 Set
-
Hot Selling Water Filtration Swimming Pool Filter Portable With Low PriceUS$ 1,000 - 10,000MOQ: 1 Set
-
New Design Mechanical Water Filter High Quality Mechanical Sand Filter With Great PriceUS$ 1,000 - 10,000MOQ: 1 Set
-
Multifunctional Back Flush Cooling Circuits Water Automatic Filter Automatic Self-cleaning Strainer for WholesalesNegotiableMOQ: 1 Set
DFM Series Mechanical Internal Scraping Self cleaning Filter
Brief Introduction
DF series scraping self-cleaning filter (DF filter for short), automatically removes particles from the filter element surface by the efficiently mechanical scraping, can work on-line continuously, consumes no disposal filter media, requires no frequent manual cleaning, is capable of the filtration for both normal and high viscous liquids.
DF filter has 3 sub-series: A series, the pneumatic cylinder drives the scraper up and down to remove the particles on the filter element internal surface, good at the normal viscous liquid and high filtration degree application, has the highest cleaning efficiency; X series, the motor drives the scraper to rotate and remove the particles on the filter element external surface; M series, the motor drives the scraper to rotate and remove the particles on the filter element internal surface; the X series and M series are good for the high viscous liquid.
The conventional manual filter gets frequently clogged when filtering viscous liquid or removing viscous contaminant. so that customer has to accept the larger filter and clean the filter frequently. It takes expensive investment, requires hard maintenance and discharges lot of waste liquid. DF filter is the ideal solution for such problems, always keep the filter element cleaning, and discharges the liquid with high solid content and result in less valuable liquid loss. With its obvious advantage, DF filter is taking the places of conventional ones such as the vibrating screens, bag filters, basket filters and some back-flushing filters, etc..
Applicable Typical Industries and Liquids
| Applicable industries | water treatment, pulp and paper, petro-chemical, biopharmaceutical, coatings, inks, oil refinary, food and beverage |
| Applicable liquids | wax, coal oil, monomer, polyer, water, citric acid, fermentation broth, protein, soap, wet end additive, coating, ink, adhesive, rubber, ethanol, chocolate, confectionary, juice, coolant, etc. |
| Filtration function | remove large particles, fixed-size screening, purify liquids, protect key equipment |
| Filtration type | mechanical scraping filter, automatic continuous online filtration |
Self Cleaning Scraper Filters Main Specifications
| Sub-series | Pneumatic A series, Electromotive X series and M series |
| Models | A7, A22, A41, A71, A123, X11, X22, X55, X71, X100 |
| Filter Element | V-SLOT Series, POR Series |
| Ratings (μm) | 25-3000 |
| Filter Area (cm2) | 720~12300 |
| Housing Material | 304, 316L |
| Viscosity (cp) | 1-800000 |
| Temperature (°C) | 200 |
| Design Pressre (MPa) | 1.0 |
| Cleaning Start Mode | Time or Pressure Drop |
