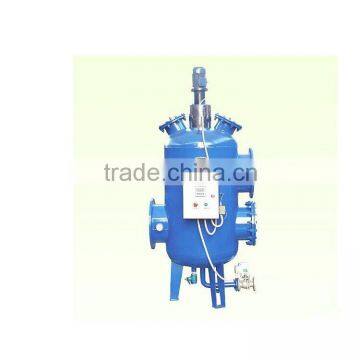

DF M41 Sereis Mechanical Rotary Scraping Self-cleaning Filter
DF M series mechanical rotatry self-cleaning filter (DF filter for short), automatically removes particles from the filter element surface by the efficiently mechanical scraping, can work on-line continuously, consumes no disposal filter media, requires no frequent manual cleaning, is capable of the filtration for both normal and high viscous liquids.
DF filter M series, the motor drives the scraper to rotate and remove the particles on the filter element internal surface.
The conventional manual filter gets frequently clogged when filtering viscous liquid or removing viscous contaminant. so that customer has to accept the larger filter and clean the filter frequently. It takes expensive investment, requires hard maintenance and discharges lot of waste liquid. DF filter is the ideal solution for such problems, always keep the filter element cleaning, and discharges the liquid with high solid content and result in less valuable liquid loss. With its obvious advantage, DF filter is taking the places of conventional ones such as the vibrating screens, bag filters, basket filters and some back-flushing filters, etc..
Applicable Typical Industries and Liquids
| Applicable industries | water treatment, pulp and paper, petro-chemical, biopharmaceutical, coatings, inks, oil refinary, food and beverage |
| Applicable liquids | wax, coal oil, monomer, polyer, water, citric acid, fermentation broth, protein, soap, wet end additive, coating, ink, adhesive, rubber, ethanol, chocolate, confectionary, juice, coolant, etc. |
| Filtration function | remove large particles, fixed-size screening, purify liquids, protect key equipment |
| Filtration type | mechanical scraping filter, automatic continuous online filtration |
Main Specification
| Sub-series | Pneumatic A series, Electromotive X series and M series |
| Models | M7, M22, M41, M71, M123 |
| Filter Element | V-SLOT Series, POR Series |
| Ratings (μm) | 25-3000 |
| Filter Area (cm2) | 720~12300 |
| Housing Material | 304, 316L |
| Viscosity (cp) | 1-800000 |
| Temperature (°C) | 200 |
| Design Pressre (MPa) | 1.0 |
| Cleaning Start Mode | Time or Pressure Drop |
