LA-1AD Compact Portable 2 way Active Line Array PA Speaker System

SPE Line Array Speaker, High Quality, Suitable for Touring Show, Music Hall, Stage, Project Installation, etc... All could be choosed Active or Passive!!

LA-1AD

Specification

Passive(LA-1)

LF Rated Power: 300W

LF Program Power: 600W

HF Rated Power: 60W RMS

HF Program Power: 120W

Components: LF2*6.5"/ HF1*1.7"

Connections: 2*NL4 1+/1-LF 2+/2-HF

Max. SPL: 124dB

Impedance: LF16 Ohm/ HF8 Ohm

Freq. Range: 70Hz-20kHz

Dimension: 530*285*192mm

Active(LA-1AD)

Nominal LF Power Amplifier: 600W

Input Type: Balanced

Input Impedance: Line 20k Ohm

Snesitivity: Line 0.775V(-0.28dBU)

Freq. Range(-10dB): 70Hz-10kHz

Connectors Input: Loop. THRU: male. XLR

                                   AC. Input: Power. Con

                                   AC. Output: Power. Con

AC Power Requirements: 220V. 502Hz/60Hz

Description

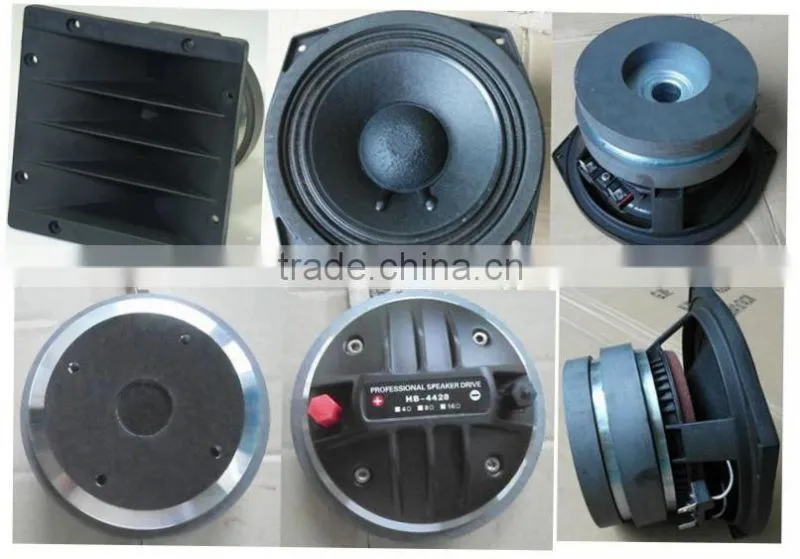

LA-1/LA-1AD, is a 2 way Mini passive or active line array speaker. Use 2 pcs 6.5 inch Low Frequency driver and 1 pcs 1.7 inch High frequency driver. Output is 300W RMS. High frequency driver's dispersion angle is 100 degree. LA-1/LA-1AD is a small size , strong output power speaker. HF is permeability delicacy. MF is sweetest fluidity tenor. Cabinet use multilayer birch plywood, and wear -resisting spray. LA-1/LA-1AD have a build-in high effciency class D amplifier board which could perdorms very stable. Could choose Active or Passive!
