SPE Audio, Loudspeaker,LA-6 600W Dual 12 Inch Passive Line Array Neodymium

SPE Audio, Loudspeaker,LA-6 600W Dual 12 Inch Passive Line Array Neodymium photo-1
US$ 1 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SPE/OEM
Model Number:
LA-6
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name SPE/OEM
Model Number LA-6
Product Description

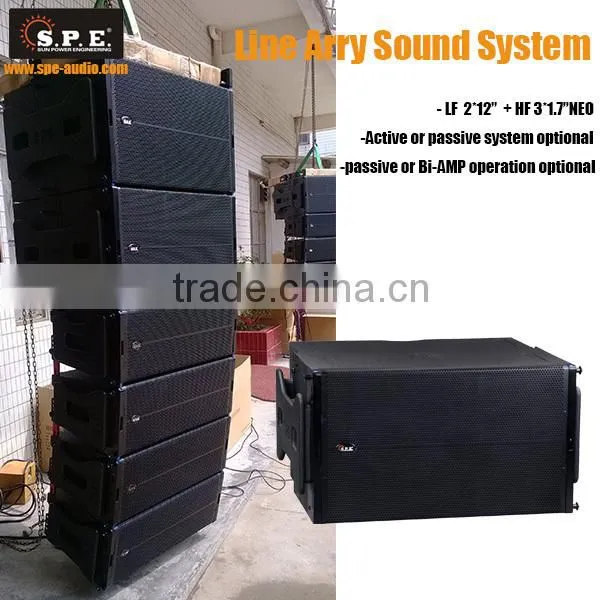

SPE Line Array Speaker, High Quality, Suitable for Touring Show, Music Hall, Stage, Project Installation, etc... All could be choosed Active or Passive!!

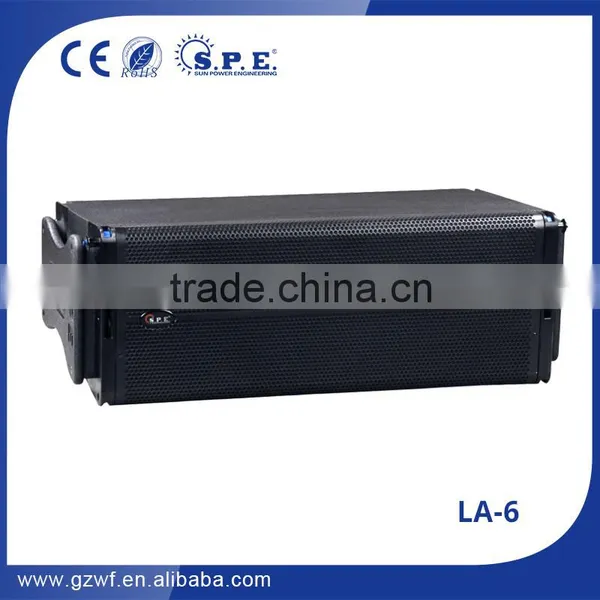

LA-6

Specification



Passive(LA-6)

LF Rated Power: 600W

LF Program Power: 1200W

HF Rated Power: 180W RMS

HF Program Power: 360W

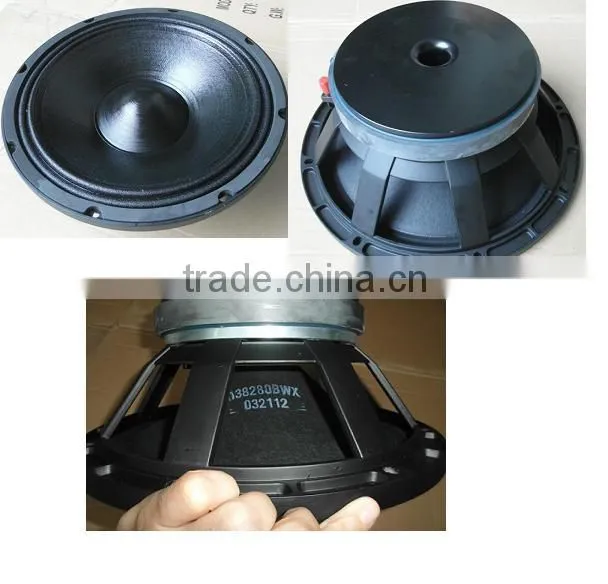

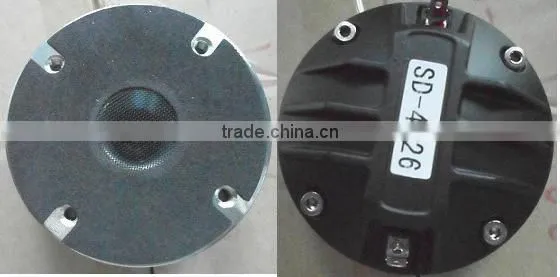

Components: LF2*12"/ HF3*1.7" Neo

Connections: 2*NL4 1+/1-LF 2+/2-HF

Max. SPL: 134dB

Impedance: LF16 Ohm/ HF8 Ohm

Freq. Range: 55Hz-20kHz

Dimension: 997*468*353mm



Active(LA-5AD)

Nominal LF Power Amplifier: 600W

Nominal MF Power Amplifier: 600W

Nominal HF Power Amplifier: 200W

Input Type: Balanced

Input Impedance: Line 20k Ohm

Snesitivity: Line 0.775V(-0.28dBU)

Freq. Range(-10dB): 70Hz-10kHz

Connectors Input: Loop. THRU: male. XLR

                                   AC. Input: Power. Con

                                   AC. Output: Power. Con

AC Power Requirements: 220V. 502Hz/60Hz



Description

LA-6/LA-6AD is a 3 way line array speaker designed for professional outdoor performance. Use 2 pcs 12 inch driver for low frequency and middle frequency and 3 pcs 1.7 inch Neo driver for high frequency. LA-6/LA-6AD designed according to physical resonance principle, have 3 independent chamber. Every speaker driver works in a independant chamber. LA-6/LA-6AD have a build-in high efficiency 3 channel class D amplifier board which is protected by a special metal case. The amplifier board have a fan for heat dissipation let the amplifier board works very steady. LA-6/LA-6AD could use together with LA-6B as a acitve system. LA-6/LA-6AD is suitable for large scale outdoor show, concert hall or stadium



Detail





 LA Series





Click me to browse more: LA Series
