Help CenterSPE Audio LA-5AD 2-way Portable Powered Line Array
Related Products
-
SPE Audio Dual 10inch Passive Line Array Speaker, Professional Audio System, Outdoor PerformanceUS$ 100 - 500MOQ: 2 Pieces -
Line Array LA-2 12" Line Array Speakers, 350W RMS Line Array Speaker Box, Speaker Box Line Array System, Line ArrayUS$ 1 - 1,000MOQ: 1 Piece
-
SPE Audio, Loudspeaker,LA-6 600W Dual 12 Inch Passive Line Array NeodymiumUS$ 1 - 1,000MOQ: 1 Piece
-
Professional Double 8inch Mini Line Array Speaker New ProductUS$ 100 - 500MOQ: 2 Pieces
-
Spe Audio LA-H6 + SP-118B Professional Passive Line Array ColumnUS$ 10 - 100MOQ: 2 Pieces
SPE Line Array Speaker, High Quality, Suitable for Touring Show, Music Hall, Stage, Project Installation, etc... All could be choosed Active or Passive!!

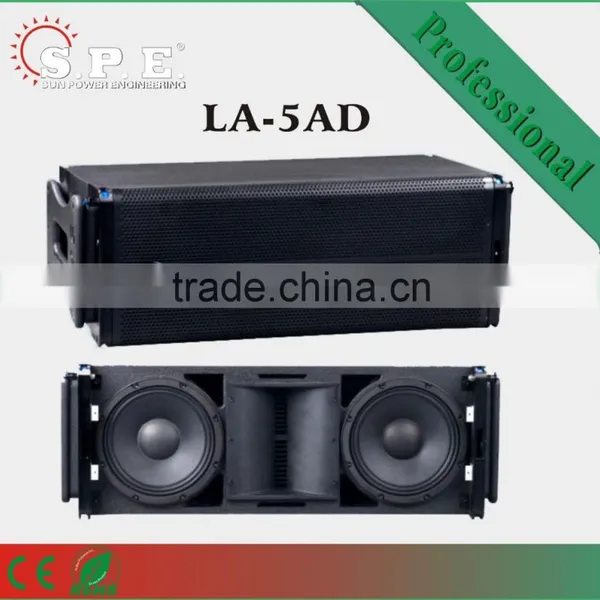

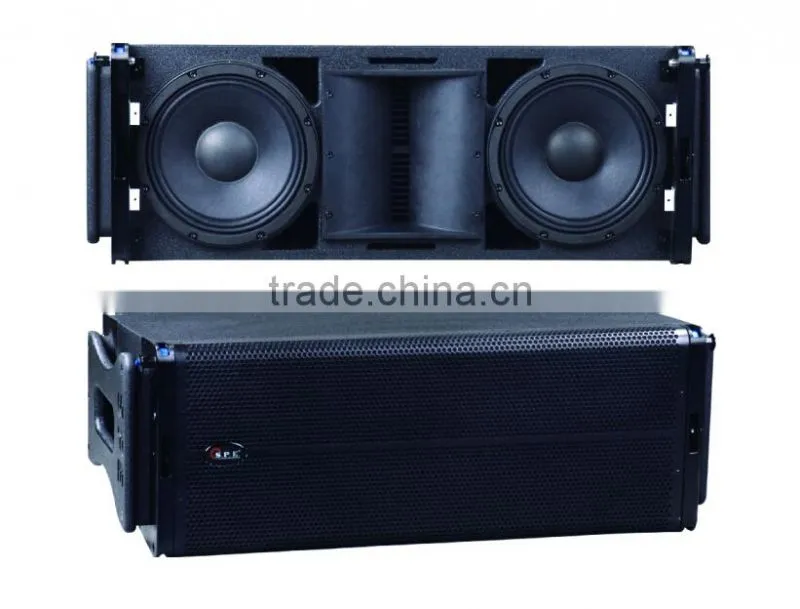

LA-5AD
Specification
Passive(LA-5)
LF Rated Power: 500W
LF Program Power: 1000W
HF Rated Power: 120W RMS
HF Program Power: 240W
Components: LF2*10"/ HF2*1.7" Neo
Connections: 2*NL4 1+/1-LF 2+/2-HF
Max. SPL: 132dB
Impedance: LF16 Ohm/ HF16 Ohm
Freq. Range: 60Hz-20kHz
Dimension: 892*465*314mm
Active(LA-5AD)
Nominal LF Power Amplifier: 600W
Nominal MF Power Amplifier: 600W
Nominal HF Power Amplifier: 200W
Input Type: Balanced
Input Impedance: Line 20k Ohm
Snesitivity: Line 0.775V(-0.28dBU)
Freq. Range(-10dB): 70Hz-10kHz
Connectors Input: Loop. THRU: male. XLR
AC. Input: Power. Con
AC. Output: Power. Con
AC Power Requirements: 220V. 502Hz/60Hz
Description

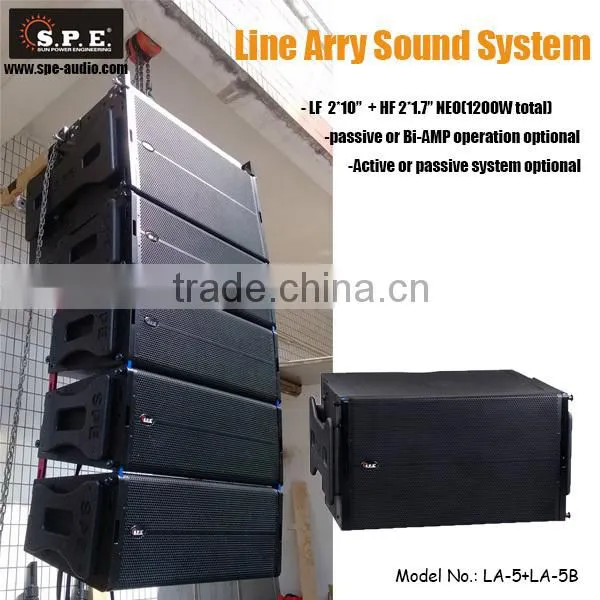

LA-5/LA-5AD is a 3 way line array speaker designed for professional performance. Use 2 pcs 10 inch driver for low frequency and middle frequency and 2 pcs 1.7 inch Neo driver for high frequency. LA-5/LA-5AD designed according to physical rexonance principle, have 3 independent chamber. Every speaker driver works in a independant chamber. LA-5/LA-5AD have a build-in high efficiency 3 channel class D amplifier board which is protected by a special metal case. The amplifier board have a fan for heat dissipation let the amplifier board works very steady. LA-5/LA-5AD could use together with LA-5B as a acitve system. LA-5/LA-5AD is suitable for large scale outdoor show, concert hall or stadium.
Detail
LA Series
Click me to browse more: LA Series
