line array LA-2 12" line array speakers, 350W RMS line array speaker box, speaker box line array system, line array

SPE Line Array Speaker, High Quality, Suitable for Touring Show, Music Hall, Stage, Project Installation, etc... All could be choosed Active or Passive!!

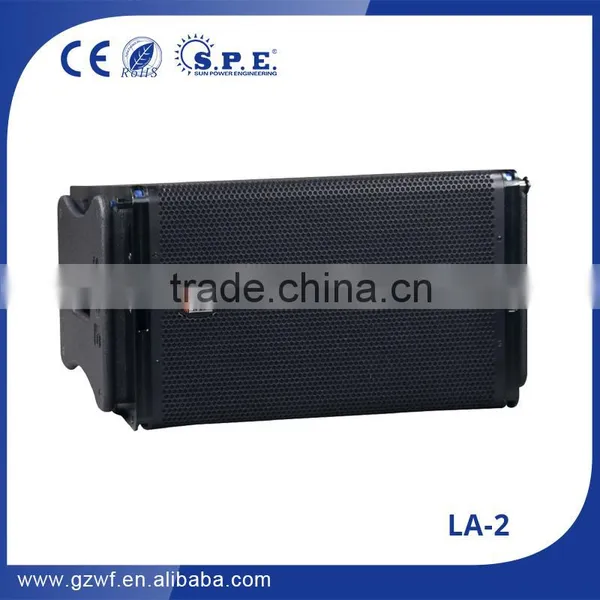

LA-2

Specification

Passive(LA-2)

LF Rated Power: 350W

LF Program Power: 700W

HF Rated Power: 120W RMS

HF Program Power: 240W

Components: LF1*12"/ HF1*1.7" Neo

Connections: 2*NL4 1+/1-LF 2+/2-HF

Max. SPL: 126dB

Impedance: LF8 Ohm/ HF16 Ohm

Freq. Range: 60Hz-20kHz

Dimension: 672*430*364mm

Active(LA-2AD)

Nominal LF Power Amplifier: 600W

Input Type: Balanced

Input Impedance: Line 20k Ohm

Snesitivity: Line 0.775V(-0.28dBU)

Freq. Range(-10dB): 70Hz-10kHz

Connectors Input: Loop. THRU: male. XLR

                                   AC. Input: Power. Con

                                   AC. Output: Power. Con

AC Power Requirements: 220V. 502Hz/60Hz

Description

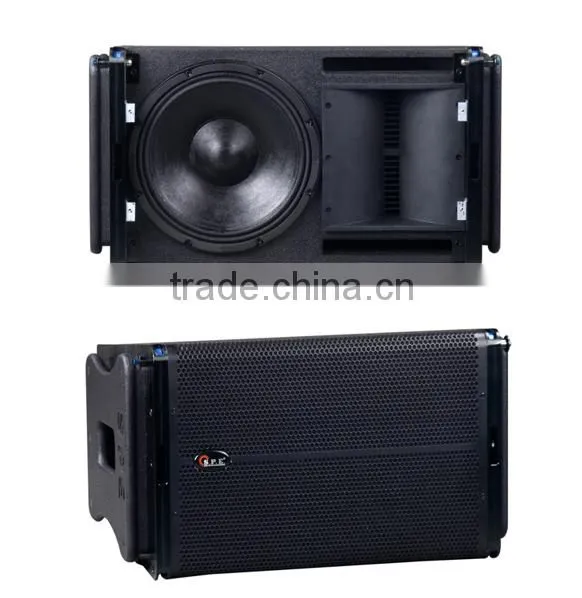

LA-2/LA-2AD, is a 2 way Mini passive or active switchable line array speaker. Use 1 pcs 12 inch as the LF driver and 1 pcs 1.7 inch Neo driver as the HF driver. LA-2/LA2AD have high sensitivity and could carry large output power. Ranging structure could adjust from 0 degree to 10 degree. Could use leveled or upright. Also could use together woth LA-2B as a small system. LA-2/LA-2AD have buil-in high effciency class D amplifier board, which performance church or concert hall. Could choose Active or Passive!

Detail

 LA Series

Click me to browse more: LA Series
