US$ 0.55 - 0.58
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
CRYSTAL SOLAR
Model Number:
CS-P60W18V -1
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
CRYSTAL SOLAR
Model Number
CS-P60W18V -1
Material
Monocrystalline Silicon
Size
835*540*30mm
Number of Cells
72
Max. Power
60W
Quick Details
| Place of Origin: | Brand Name: | Model Number: | |||
| Material: | Size: | Number of Cells: | |||
| Max. Power: | solar cells: |
Packaging & Delivery
| Packaging Detail: | Normal packing. |
| Delivery Detail: | Contact us for details |
Specifications
30W 18V solar panel polycrystalline
Solar panel-polycrystalline silicon-30W
Solar PV module-polycrystalline silicon-30W

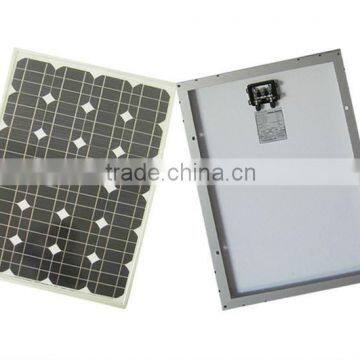

60W 18V solar panel Monocrystalline
| Model No. | CS-P853540-1 |
| Maximum Power | 60Wp |
| Efficiency Of Cell | 15.5-16.8% |
| Cell Brand | German/Taiwan |
| Power Tolerance | 1%~3% |
| Optimum Operating Voltage | 18.0V |
| Optimum Operating Current | 3.33A |
| Open Circuit Voltage | 21.5V |
| Short Circuit Current | 3.67A |
| Maximum System Voltage | 1000V DC |
| Voltage Temperature Coefficient | -155±10mV/°C |
| Current Temperature Coefficient | +0.06±0.01%/°C |
| Power Temperature Coefficient | -0.5±0.05%/°C |
| Dimension | 530*530*30mm |
| Weight | 2.8Kg |
| Frame Material | Clear anodized aluminium frame |
| Operating Temperature | -40°C~+85°C |
| Storage Temperature | from-40°C~+85°C |
| Voltage Standoff | AC200V DC3000V |
| Maximum Wind Resistance | 60m/s |
| Surface Maximum Load Capacity | 200Kg/ |
| Maximum Hail Load Capacity | 25mm,80km/h |
