Quick Details

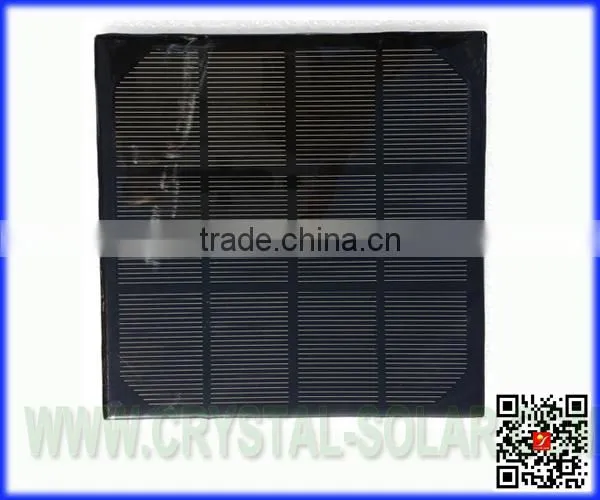

Place of Origin: ShenZhen China (Mainland) Brand Name: crystalsolar Model Number:CS-P175175-1
Material: Polycrystalline Silicon Size: 175X175X2.4 mm Number of Cells: 6PCS
Packaging & Delivery
Packaging Detail: carton packing
Delivery Detail: 20 days after confirming
Specifications
Module Type CS-P175175-1
Dimensions 175*175*2.4mm
Peak Power (Pmax) 3.5W+3% Module Efficiency 15.69%
Cell Efficiency 16.01% Power Tolerance ±3%
Open Circuit Voltage(Voc) 3.6V
Short Circuit Current(Isc) 1.27A
Max Power Voltage(Vmp)3V
Max Power Current(Imp)1.167A
Max System Voltage DC 1000V
Operating Temperature -40°C~85 °C
Nominal Operating Cell Temp. 47±2 °C
Temp. coefficient Isc(TK Isc) 0.06%/ °C
Temp. coefficient Voc(TK Voc) -0.34%/ °C
Temp. coefficient Power(TK Pmax) -0.42%/ °C
Our Service
1) Reply your enquiry within 24 working hours.
2) Experienced staffs answer all your questions in fluent English.
3) Customized design is available. OEM are welcomed.
4)We supply the Flashing list based on the container quantity order .
5) Exclusive and unique solution ,well-trained and professional engineers and staffs.
6) Special discount and protection of sales area provided to our distributor
7)As an expert in Shipping area, provide you with unique and professional service.
FOB, CIF & DDU term as per your choice
Why Choose Hilight Solar ?
1)High Conversion Efficiency Solar Module.

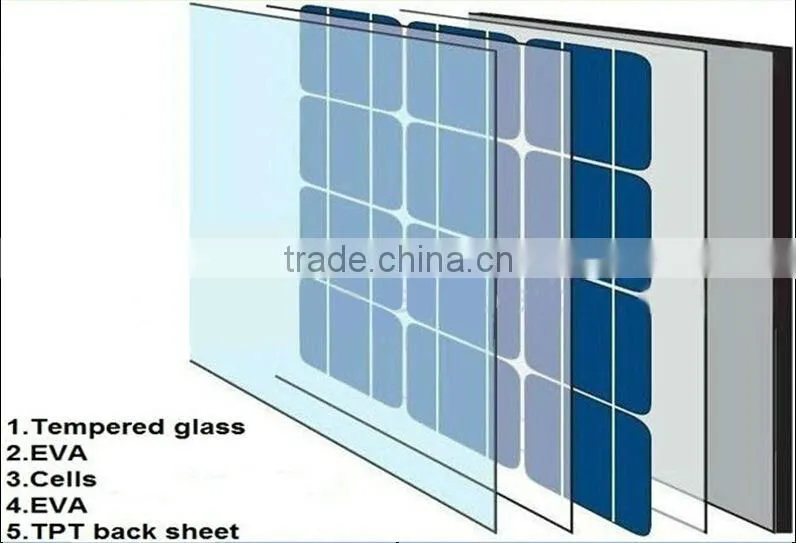

2) High transmission Iow iron tempered glass, strong mechanical resistance.
3) Anti-ageing EVA and excellent anti-climate back sheet .
4) Anodized aluminum frame improves load resistance capabilities for heavy wind loads.
5)High endurance of different weather, be resistant to atmospheric exposure and effects of delamination
6) Strict quality control and power classification of modules
7)Ready to use with standard waterproof junction box , cabling and connectors.
8) )Manufactured according to international quality and Environment Management
System (ISO9001, ISO14001), Certificated with TUV , IEC61215/IEC61730, CE, CEC.
9) Good and friendly package with less transportation and storage space.
10)25years Warranty , 90% of original efficiency in 10years, and 80% in 25years.
Waranty
1)10 years for product defects in materials & workman ship
2)10 years at 90% of the minimal rated power output
3)25 years at 80% of the minimal rated power output
"Hilight Solar" Panels Widely Used All Over The World
1. Large or small on-grid or off-grid solar panel systems.
2. Commercial and industrial building roof-top solar panel systems
3. Residential roof-top solar panel systems
4. Commercial or industrial ground mounting solar panel systems
5. Other industrial or commercial applications

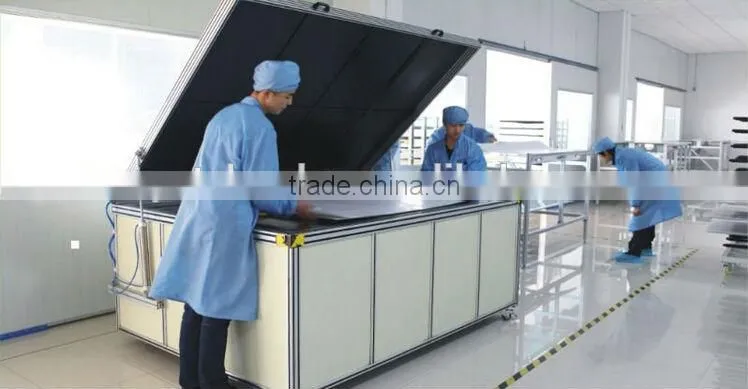

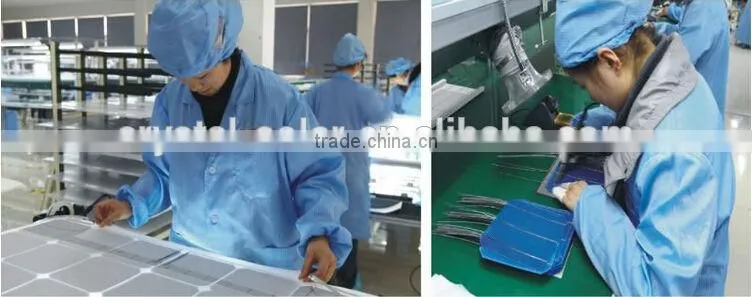

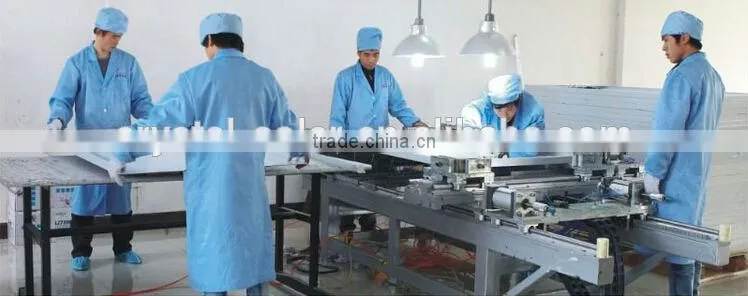

Our Wok Shop

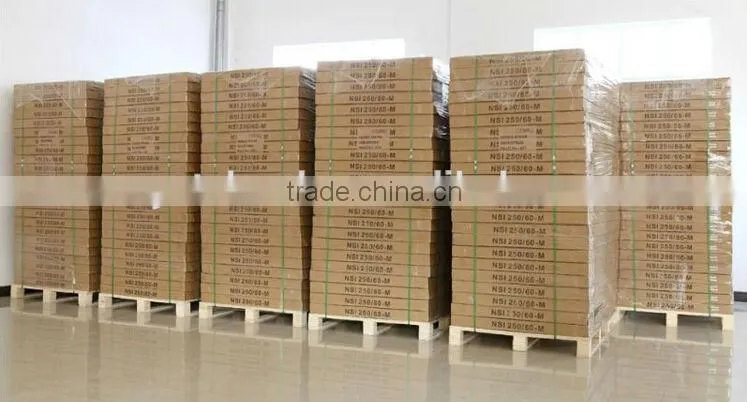

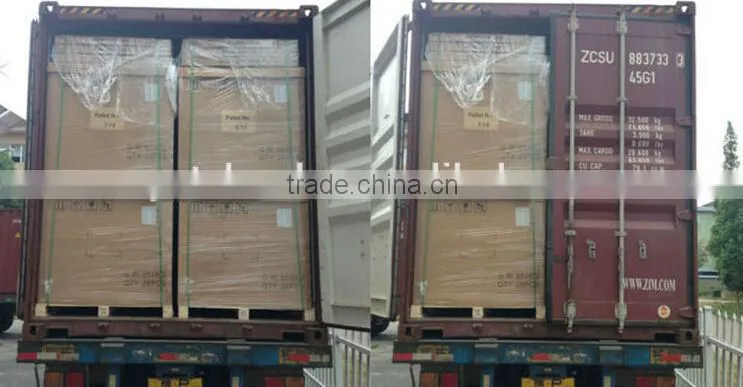

OUR PACKING
