Specifications
1.3.5mm jack wireless transmitter2.Frequency:2.4-2.483GHz
3.Channels:30 channel
4.Sample ratios:64K

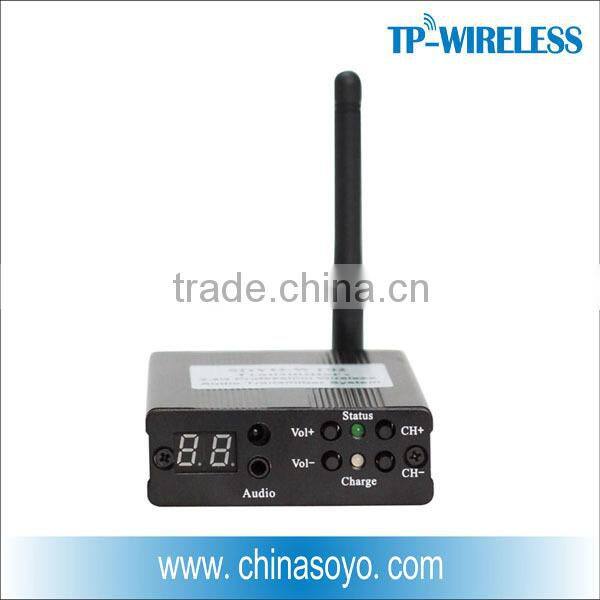

2.4g Digital Wireless Transmitter Receiver
1 |
Frequency |
2.4-2.483GHz |
2 |
Latency |
<0.5ms |
3 |
Sample Ratio |
64K @16 bit x 2 |
4 |
Modulation |
GFSK |
5 |
Frequency Response |
20-20000Hz |
6 |
SNR |
95db |
Features:
Frequency: 2.400-2.483Ghz
Effective range: 30 metres without any block, all corner is clear within effective range.
Effect: Hi-Fi, strong anti-interference
Digital transmission
Built-in infrared remote control.
Supporting the real-time online cut of audio frequency, common microphone and audio input.
Channels: The channels number could be customized on special application, no matter what number will be chosen for your available within 30 channel.
The highest sampling ratios in the field: 64K @ 16bit x 2, HDCD sound effect acoustic effect
The shortest latency in the field (<0.5ms)
Frequency response 20-20000Hz
Additional 20dB selection can be available with microphone input (for the high-sensitivity microphone, eavesdropping, monitoring applications).
Audio muting function: when receiving weak signals or no signals.
Fixed ID working mode: point to point and point to multi point, automatic scan channel function to avoid interference easily.
Interference resistance: Wi-Fi Optimization version support working with Wi-Fi networking without any interference with each other.
Interference resistance: Wi-Fi Optimization version support working with Wi-Fi networking without any interference with each other.
Botton adjustment function:
ON/ OFF: Noise elimination circuit switch on power switch, which could eliminate the noise of power on/ off
Standby: The receiver particular standby dormancy function when no signals; and the standby current is less than 0.5mA
Mic/ music: Supporting audio frequency, common microphone and audio input, moreover, switching it each other.
Number screen: Two digital number display and ability to real time display the channel transform.
Channel set: Function of auto channel scanning or manual channel selection. (Guide for placing an order)
Volume: Adjust low and high voice.
Package Included:
- 1 x 2.4G transmitter
- 1 x 2.4G receiver
- 2 x adapter
- 1 x remoter control
- 1 x audio cable
