Micro Sim Card Antenna With Hdsdi Bnc Connector
- shenzhen
- T/T L/C D/P D/A Credit Card
You May Like
-
Telecopic Hd-sdi Video Antenna Usb Bnc Connector Types Chart
-
Coaxial to Xlr Cable Electricla Wiring Jwt Video rf Bnc Connector
-
Video to Wifi Hdsdi Xlr Bosch Ev1 Injector Bnc Connector
-
Speaker Cable Hdsdi Vga Bnc Component Connector Pcb Mount
-
Packard Micro Bnc Connector to Coaxial Hdsdi Gsm Antenna Bnc Connector
-
Dosin Hdmi Video rf Aircraft Electrical Waterproof Bnc Connector
Product Details
| Place of Origin | Guangdong, China | Brand Name | Dosin/OEM | |
| Model Number | Dosin-801-0058 | Type | Other, BNC, bnc connector | |
| Application | Other, PCB, PCB,RF | Gender | Other, Female, Female |
Product Description
Specifications
micro sim card hdsdi bnc connectorCertification:ISO9001:2008
Impedance:50ohm 75ohm
Frequency Range:0-4GHz low reflection

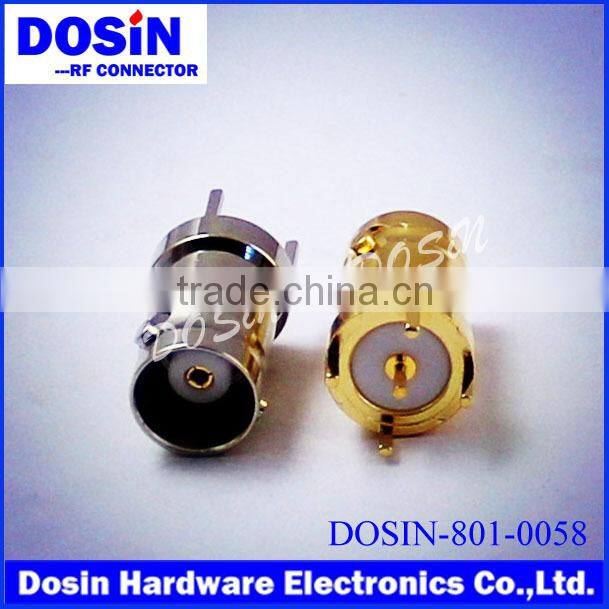

micro sim card antenna with hdsdi bnc connector
Packing&Delivery
| Packaging Detail: | micro sim card antenna with hdsdi bnc connector 1.100 pieces/box and according as your request or standard packing 2 Neutral or customized packing also accepted |
| Delivery Detail: | 7-10 days after received the payment |
| • | Bayonet coupling mechanism provides quick mating and unmating |
| • | 50 Ω and 75 Ω impedance designs allow customers to match impedance to system requirements |
| • | 50 Ω and 75 Ω connectors are intermateable to ensure non-destructive mating |
| • | Three grades of connectors are available for military, industrial and commercial applications |
Applications
| • | Antennas | • | Automotive | • | Base Stations |
| • | Broadcast | • | Cable Assemblies | • | Cable Modems |
| • | Components | • | Computers/LANs | • | Instrumentation |
| • | Oscilloscopes | • | Medical Equipment | • | Mil-Aero |
| • | Radios | • | Satcom | • | Surge Protection |
| • | Telecom |

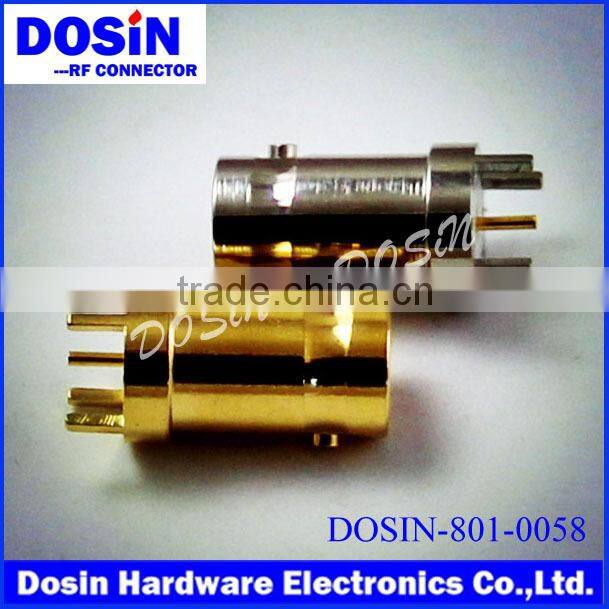

micro sim card antenna with hdsdi bnc connector
Specifications
| Electrical | |
| Impedance | 50 Ω 75 Ω nominal |
| Frequency Range | 0-4 GHz with low reflection |
| Voltage Rating | 500 volts peak |
| Dielectric Withstanding Voltage | 1,500 volts rms |
| VSWR | M39012 straight connectors: 1.3 max 0-4 GHz M39012 right angle connectors: 1.35 max 0-4 GHz |
| MIL-C-39012 Contact Resistance | Center contact: 1.5 mΩ; Outer contact: 0.2 mΩ |
| MIL-C-39012 Insulation Resistance | 5,000 MΩ |
| MIL-C 39012 Braid to Body | 0.1 milliohm |
| MIL-C-39012 RF Leakage | -55 dB min at 3 GHz |
| MIL-C-39012 Insertion Loss | 0.2 dB min at 3 GHz |
| Mechanical | |
| Mating | 2-stud bayonet coupling per M39012 |
| Braid/Jacket Cable Affixment | All crimps are hex braid; clamps are screw-thread net and braid clamp |
| Center Conductor Cable Affixment | Crimps are crimp or solder; all other are solder only |
| Captivated Contacts | All crimps unless specified otherwise |
| Cable Retention | Crimps: 20-100 lbs; All others: 30-70 lbs |
| Material | |
| Male Contact | Brass |
| Female Contact | Beryllium copper or phosphorous bronze, silver or gold-plated |
| Other Metal Parts | Brass, nickel finish; M39012 is silver finish |
| Insulator | TFE, copolymer of styrene, glass-TFE (hermetically sealed) |
| Crimp Ferrule | Copper/brass |
| Environmental | |
| Temperature Range | TFE insulators: - 65°C to + 165 °C Copolymer of Styrene: - 55°C to + 85°C |
| Weatherproof | Clamps with clamp gaskets; crimps with heat-shrink tubing |
| Hermetic Seals | Pass helium leak test of 2x10 -8 cc/second |
| Shock | MIL-STD-202 method 202 |
| Vibration | MIL-STD-202 method 202, test condition D |
| Moisture Resistance | MIL-STD-202 method 106 |
| Corrosion | MIL-STD-202 method 101, test condition B |
| Temperature Cycling | MIL-STD-202 method 102, test condition D |
| Altitude | MIL-STD-202 method 105, test condition C |
| Military | |
| MIL-C-39012 | Where applicable |
Note: These characteristics are typical but may not apply to all connectors.
micro sim card antenna with hdsdi bnc connector
Our Quality:Quality is the life of DOSIN We use only the best quality (original) components to ensure the standard of our product range is of the highest caliber. All products we sold out are strictly selected and tested by our QC department.
Warranty: We provide comprehensive after-sales service, including quality service, guidance services, We focus on customer needs in every detail. Please contact us if you need our detail warranty term.
Payment: We accept payment via TT (Bank transfer), Western Union, Escrow. We accept bank transfer for large orders. For small order, you'd better pay via Western union or Escrow.
Shipping:We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS. Do you have any question? Contact me now! We look forward to cooperating with you.
