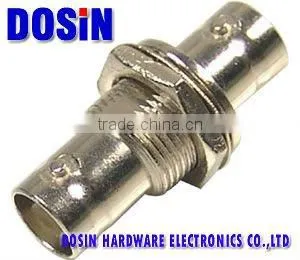

Bnc Female to Bnc Bulkhead Adapter

Name: Bnc Female to Bnc Bulkhead Adapter
Brand: DOSIN
SKU: 120147743
Availability: InStock

US$ 0.1 - 1.5 MOQ: 200 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

DOSIN

Model Number:

DOSIN-8140

Dongguan Dosin Hardware Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shen zhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DOSIN

Model Number DOSIN-8140

Type Adapter

Application RF

Gender Female

Specifications

BNC Connector
1.High Performance
2 Easy Installation
3.Material:zinc or copper

Features:

Applications:

Electronical Specifications

Impedance	50Ω	75Ω
Frequency Range	0-4 GHz	0-2 GHz
Working Voltage	500 VRMS max. at sea level	500 VRMS max. at sea level
Dielectric Withstanding Voltage	1500 VRMS min. at sea level	1500 VRMS min. at sea level
VSWR	Straight: 1.3 max., R/A: 1.5 max.	Straight: 1.3 max., R/A: 1.5 max.
Contact Resistance	Center Contact: 3 milliohm Max.	Center Contact: 3 milliohm Max.
Contact Resistance	Outer Contact: 2 milliohm Max.	Outer Contact: 2 milliohm Max.
Insulator Resistance	5000 megaohms min.	5000 megaohms min.

Material Specificions

Parts Name		Material	Finish
Center Contact	Male	Brass	3u" Gold or Silver per requirement
Center Contact	Female	BeCu or P. Bronze	3u" Gold or Silver per requirement
Body, Metal Parts		Brass	Nickel
Insulators		PTFE, Delrin, PBT	None
Clamp Gaskets		Silicone rubber	None
Crimp Ferrules		Annealed copper	Nickle or Silver per requirement
