High strength with tight connection pu sandwich panel

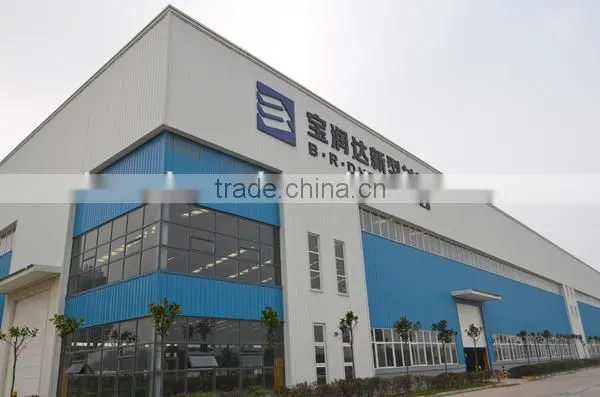

Company introduction:
Henan B.R.D New Materials Co.,Ltd, a subsidiary of Henan Baoyuan Steel Group, has been engaged in steel trade, steel structure & new materials manufacturing since 1995 when established as a large private enterprise. Its main products include polyurethane(PU)sandwich panel, steel structure, container house, prefabricated house, colorcoated sheet, galvanized sheet processing & promoting as well as steel frame building designing & processing & installation.
1. The advantages of pu cold room panels:

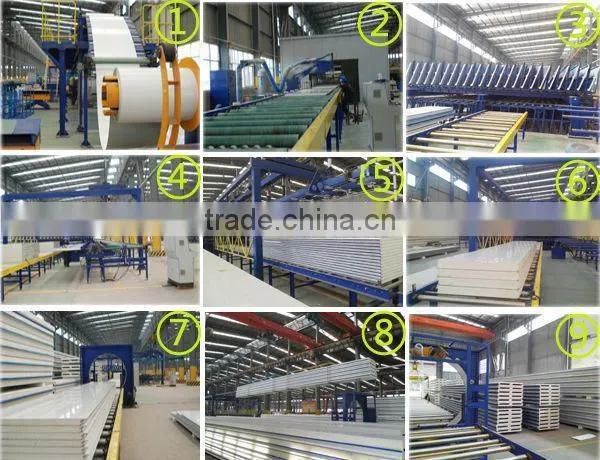

1) Advanced equipment makes excellent products: Our factory chooses the world's most advanced Italy's third generation equipment, the whole equipment costs more than 8,000,000USD. It is fully controlled by computer robot, without any manual operation.
2) U.S. imported raw material: All raw materials are imported from the United States, global brand ranks No.1, with 100% zero defect, in order to make our customers feel relieved.
Other advantages of pu cold room panels:
1) Light self weight: 10 to 14kg/sq.m
2) easy to install fast
3) high strength and high rigidness
4) good temp-keeping and heat insulation
5) average thermal conductivity: 0.023W/m.K
6) inflaming retarding
2. Main features of pu cold room panels:
1) Good chemical resistance, waterproof & fire resistant,anti-corrosion, etc.
2) The colored steel sandwich panel usually use parallel clasp to install on site. It has the advantages of being easy to install, time efficient, material efficient, even more, high in strength, etc. It is especially applicable to suspended ceiling and partition systems, Installation is convenient and flexible without the large-size lifting devices so that the construction period is limited with the lower comprehensive costs.
3) The PU panels we offer are also used in making of the containers which are used mostly for the storing of the food items including Poultry, Fruits, vegetables etc.
3.Specifications of pu cold room panels:
Steel Thickness |
0.3~0.6mm |
Panel thickness |
50/75/100/125/150/200 mm |
Effective width |
(1) 950/mm ---for roof (2) 950/1150mm---for wall or ceiling |
Length |
According to customer's request,less than 11.8m |
Materials |
Inner is PU/Rockwool, two sides is Color steel tile |
Structure |
three layers: (1)upper layer is steel sheet, (2)the inner layer is PU sandwich, (3)the bottom layer is also steel sheet |
Rockwool density |
30-50(kg/m³),etc |
color |
blue,white grey or other colors . |
Parts |
Steel line for easy connect one by one Film covering in order to protect the steel of panels |
Lifetime |
15~20 years |
Character |
Light in weight, heat insulation, fireproof and waterproof,environmental |
Usage |
various roofs and walls referring to the large size factory buildings,storages, exhibition halls, gymnasiums ,etc |
Packing |
Packed by shipping Container or according to your demands |
4. Characters of pu cold room panels:
•Heat insulation
•Durable-more than 30 years
•Good quality- ISO 9001:2000
•Waterproof and fireproof
•Light weight
•Cost-saving-the lowest price of sandwich panel
•Environment protection- highly recommend by the government
•Large span and most area saving

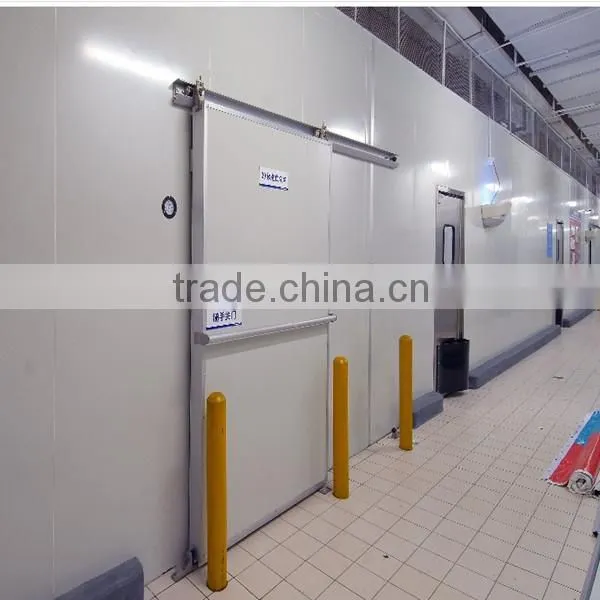

5. Application of pu cold room panels:
Steel house, suburban housing, villa, kindergarten, model house for apartment, commercial building, remodeling of old structures, warehouse, steel structure house, workshop, work plant, airport, cold storage, mobile house, etc.
6. Transportation and installation of pu cold room panels:
7. Henan B.R.D company culture,Oversea customers:
Believing, Respecting, Doing the best, B.R.D you deserve it!!!
Leave your mail address, we will send you free samples / 100:1 model product!!!
