Specifications
wall panel1.Easy to install
2.Heat insulation and sound insulation
3.Fireproof
4.Light weight

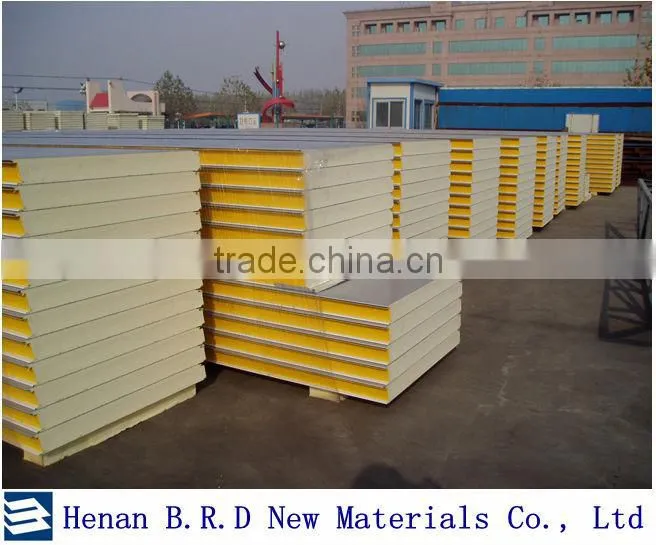

Removable light weight PU sandwich wall panel
1. Advantages of PU board
PU Sandwich panel (Polyurethane sandwiched panel )is composed of 2 layers of weather-proof colored steel sheets and jetted the hard forms of polyurethane between 2 layers which feature fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
1) Light Weight, strong strength
2) Sound Insulation
3) Heat Insulation,Preservation
4) Environmental protecion
5) Waterproof and damp resistant
6) Fire,Water Proof
7) Fast, Easy to install
8) Good appearence
2.Specification
Steel Thickness |
0.2~0.6mm |
Panel thickness |
50/75/100/125/150/200 mm |
Effective width |
(1) 950/mm ---for roof (2) 950/1150mm---for wall or ceiling |
Length |
According to customer's request, less than 11.8m |
Materials |
Inner is Rockwool, two sides is Color steel tile |
Structure |
three layers: (1)upper layer is steel sheet, (2)the inner layer is PU sandwich, (3)the bottom layer is also steel sheet |
Rockwool density |
30-50(kg/m³),etc |
color |
blue, white grey, or other colors . |
Parts |
Steel line for easy connect one by one Film covering in order to protect the steel of panels |
lifetime |
15~20 years |
Character |
Light in weight, heat insulation, fireproof and water proof, environmental |
Use |
various roofs and walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums ,etc |
Packing |
Packed by shipping Container or according to your demands |
If you are interested in our products, pls feel free to contact me !
