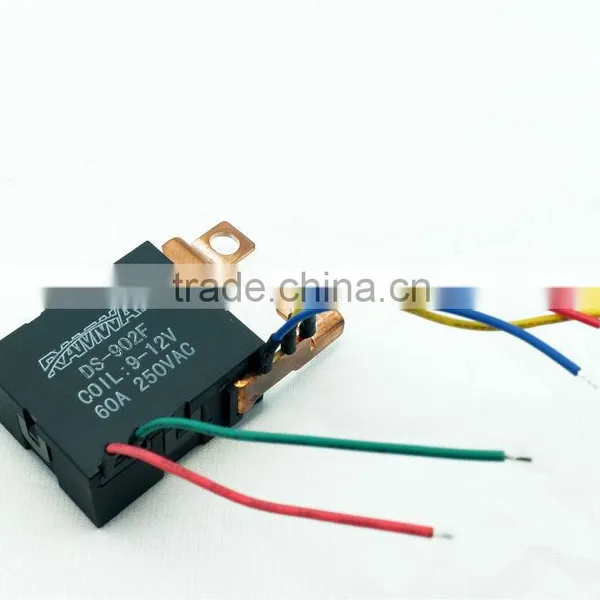

DS902F-A-60A Wireless Remote Control Relay Switch

DS902F-A-60A Wireless Remote Control Relay Switch thumbnail-1
DS902F-A-60A Wireless Remote Control Relay Switch photo-1
US$ 1.5 - 2.12 MOQ: 400 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
RAMWAY
Model Number:
DS902F-A-60A
Contact Supplier Request Quote Chat Now
Guangxi Ramway Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangxi, China
Brand Name RAMWAY
Model Number DS902F-A-60A
Theory Electromagnetic Relay
Usage Other, Electric Meter,Energy Meter, Electric Meter,Energy Meter
Size Miniature
Protect Feature Epoxy
Contact Load High Power

DS902F-A-60A Relay 250vac with shunt for prepaid energy meter

Contact Data

Contact arrangement

 1A,1B

Contact resistance

 2mΩ(1A,12VDC)

Contact material

Silver alloy

Contact rating(Res.load)

60A 250VAC

Max.switching current

60A

Max.switching power

15000VA

Electrical life

1x104 OPS

Mechanical life

1x106 OPS

 Charactericstic

Insulation Resistance

1000MΩ(500VDC)

Dielectric strength

Between coil&contacts

4000VAC 1 min

Between open contacts

1500VAC 1min

Operate time(at nomi.volt)

Max.20ms

Free time(at nomi.volt)

Max.20ms

Shock resistance(stability)

98m/s2

Virbration resistance

10Hz~55Hz 1.5mm

Humidity

98%RH,40°C

Ambient temperature

-40°C~+70°C

Coil Data

Nominal Coil Voltage

Nominal Coil Voltage

Dual Coil Voltage

6VDC

36Ω

2x18Ω

9 VDC

75Ω

2x40Ω

12VDC

120Ω

2x70Ω

24VDC

550Ω

2x280Ω

 Ordering Information



DS902F

60A

A

9VDC

S

Series Name







100A







Load Current

60A ,80A

Connecting Form

A,B,C,D,E,etc

Welding accessories according to customer requirements

Coil rated volt

6VDC,9VDC,12VDC,18VDC,24VDC

Coil driving way

D=Double coils   S=Single coil



Shipping&payment



1.MOQ:400 PCS



2.Samples:(1)1~5 PCS Free.



               (2)samples freinght should be paid by buyers.



3.Packing detail:(1)400 PCS per carton



                       (2)carton size:40x35x35(cm)



                       (3)gross weight:26kg



4.Lead time:35 days after sample confirmed and deposit paid.



5.Delivery:FOB Shenzhen



6.Payment details:30% T/T deposit,balance paid by copy of B/L.West Union



Latching relay models

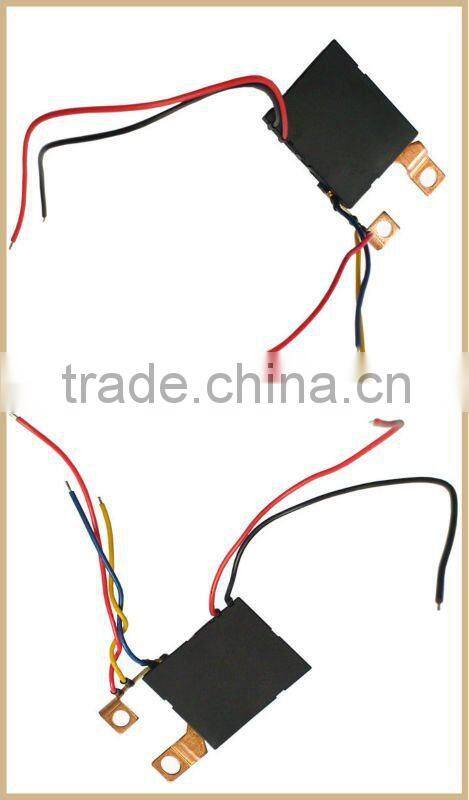

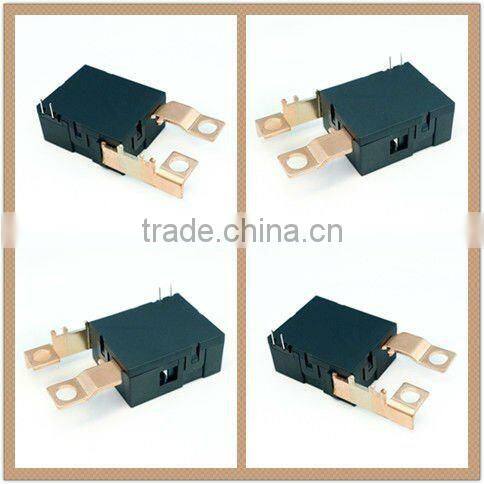

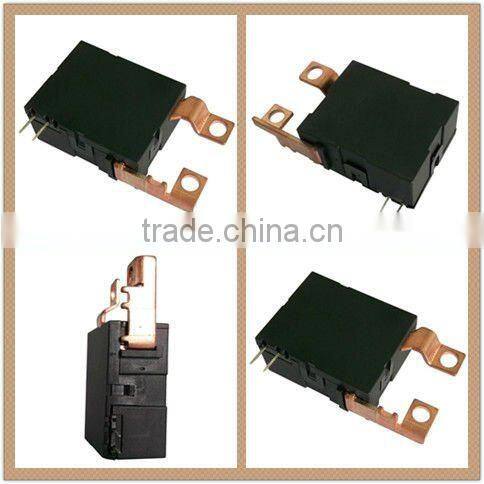

DS902F-A-60A wireless remote control relay switch

DS902F-A-60A Relay 250vac

DS902F-A-60A wireless remote control relay switch

DS902F-A-60A wireless remote control relay switchDS902F-A-60A wireless remote control relay switch

Packaging

DS902F-A-60A wireless remote control relay switch

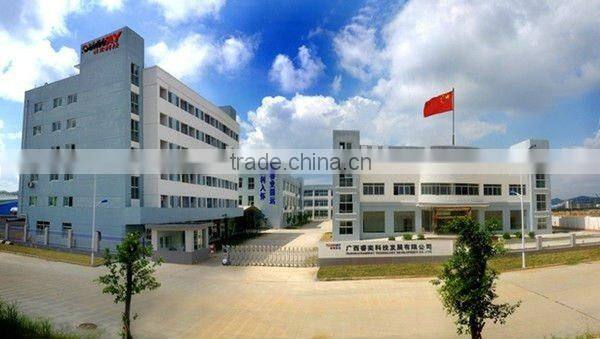

 Factory

DS902F-A-60A wireless remote control relay switch

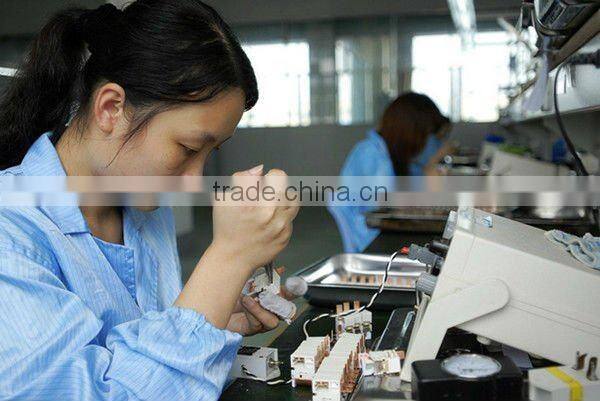

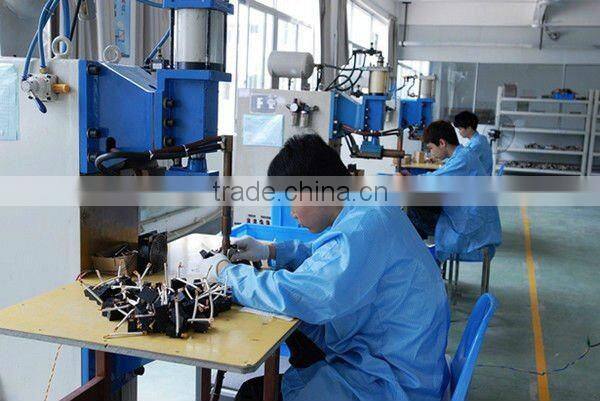

Workshop

DS902F-A-60A wireless remote control relay switch



DS902F-A-60A wireless remote control relay switch

DS902F-A-60A wireless remote control relay switchDS902F-A-60A wireless remote control relay switch
