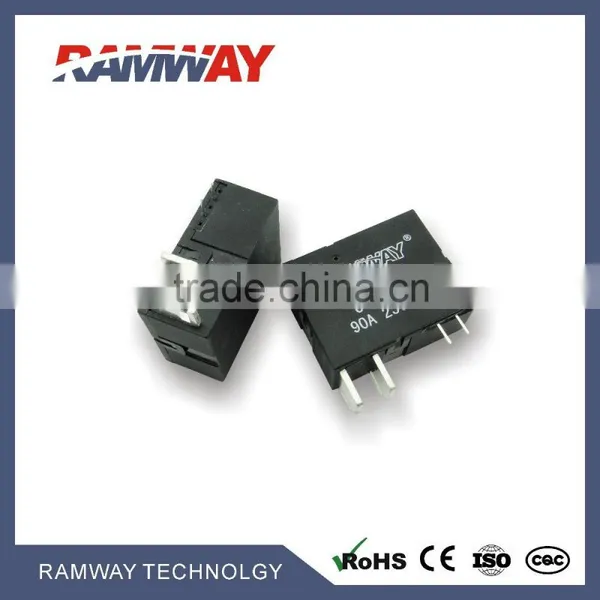

RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay

RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay thumbnail-1
RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay thumbnail-2
RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay thumbnail-3
RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay thumbnail-4
RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay thumbnail-5
RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay thumbnail-6
RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay photo-1
RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay photo-2
RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay photo-3
RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay photo-4
RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay photo-5
RAMWAY DS903C 90A Latching Relay 250VAC,latch Relay 90A,250VAC Relay photo-6
US$ 1.85 - 4.25 MOQ: 400 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
RAMWAY
Model Number:
DS903C-90A
Contact Supplier Request Quote Chat Now
Guangxi Ramway Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangxi, China
Brand Name RAMWAY
Model Number DS903C-90A
Theory Electromagnetic Relay
Usage Protective
Size Miniature
Protect Feature Epoxy
Contact Load High Power

 RAMWAY DS903C 90A latching relay 250VAC,latch relay 90A,250VAC relay

RAMWAY DS903C 90A latching relay 250VAC,latch relay 90A,250VAC relay





Product Description



CONTACT DATA

Contact form

1A & 1B

Contact resistance

Max.1mΩ(12VDC 1A)

Contact material

Silver alloy

Resistance load

90A/250VAC

Max. switching current

90A

Max. switching power

22500VA

Electrical life

1x104 cycles

Mechanical life

1x106 cycles























CHARACTERISTICS

Insulation resistance

1000MΩ (at 500VDC)

Dielectric

strength

Between contact & coil

4000VAC 1min

Between contacts

2000VAC 1min

Operation time

Max.20ms

Comeback time

Max.20ms

Vibration resistance

10-55Hz, 1.5mm(DA)

Humidity

98%RH, +40°C

Termination

PCB&QQC

Weight

42g

























COIL DATA

Nominal coil voltage

Single coil resistance

Dual coil resistance

6VDC

36Ω

2X18Ω

9VDC

75Ω

2X40Ω

12VDC

120Ω

2X70Ω

24VDC

550Ω

2X280Ω



















ORDER INFO

-----------------------

DS903C

A

90A

6V

D

T

Relay Model













Connecting form

A/B/C/D/E

Terminal Type

80A   90A

Coil Voltage

6/9/12/24VDC

Coil Type

Single-No mark   Double-D

Contact Material

D – AgCdO12 T – AgSnO2

























Other Data

1.Size(mm): 38x30x16.5

2.Space between pins (mm): 5

3.Coil polarity: Positive/ Negative

4.Coil type: Single coil(two pins)/ Double coil(three pins)



Advantages

1.Only need pulse excitation and can be single or double coils working.

2.Small volume and PCB installation.

3.Low power consumption and strong load capacity.

4.Security, reliable and long working life.





Usage



Be fit for Prepayment energy Meter and AMR system Combination switch, reactive power compensation devices and automatic control.



RAMWAY DS903C 90A latching relay 250VAC,latch relay 90A,250VAC relay











Our Services



1.Free SAMPLE for testing(1-5pcs);

2.Factory price, FOB Shenzhen;

3.Welding accessories according to clients requirement;

4.If clients have special requirement on size of other dimension, please sent us the details or drawings;

5.Delivery: within 30 days after receiving the payment(this is for MOQ, any problem or special requests, contact us).

6.Provide OEM and ODM service.

7.Our brother company have combined with us, so now we also manufacture LITHIUM PRIMARY BATTERY.


Packaging & Shipping

If customer have special requirements, please contact us and provide info in details. Thank you.

Inner box(normal:19x16x6cm)→Carton(normal:40x35x35cm) → Pallet for free fumigation(if necessary) → waterproof plastic packing



RAMWAY DS903C 90A latching relay 250VAC,latch relay 90A,250VAC relay




Company Information


Ramway is a professional high-tech enterprise which is invested by Singapore Ramway Science and Technology Group specialize in electronic components including latching relay,lithium battery R&D, production, Marketing, and related technical services. We have built our first modern factory production plant with 20,000 square meters for manufacturing,development and associated production.

Our all staffs warmly and sincerely provide the best quality products and professional services for global partners with mutual benefit, common prosperity and innovative ideas.

RAMWAY DS903C 90A latching relay 250VAC,latch relay 90A,250VAC relay

RAMWAY DS903C 90A latching relay 250VAC,latch relay 90A,250VAC relay

RAMWAY DS903C 90A latching relay 250VAC,latch relay 90A,250VAC relay

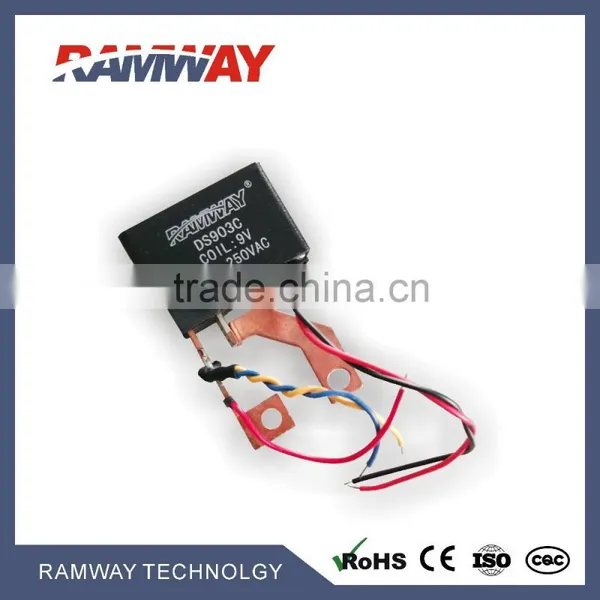

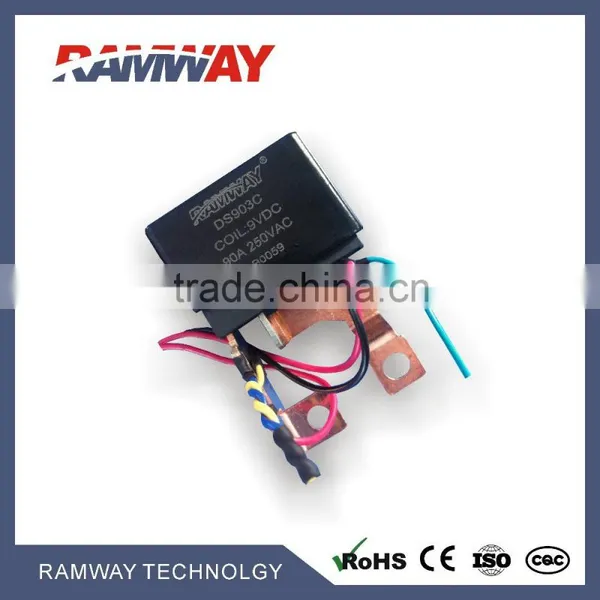

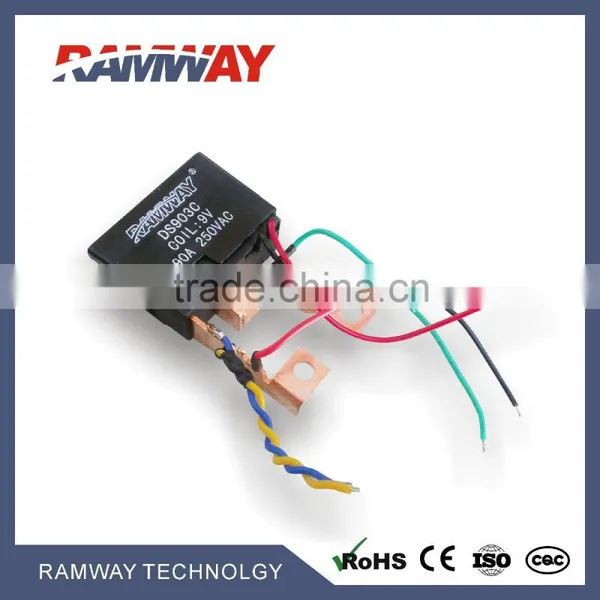

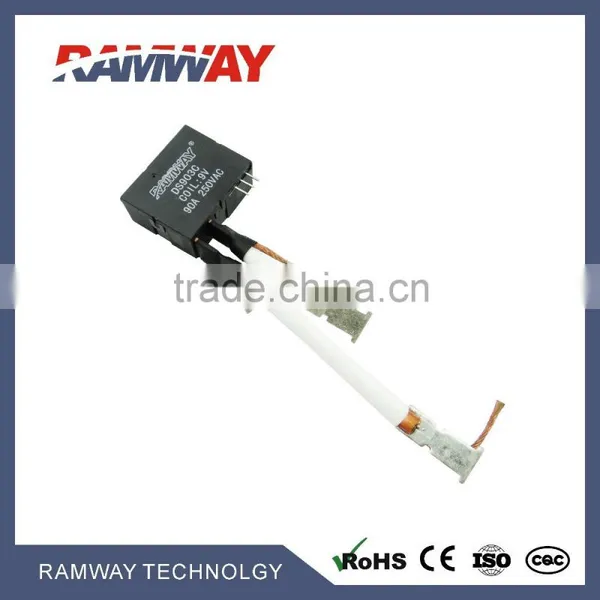

With accessories



(The dimension of accessory could be customized as drawings)
