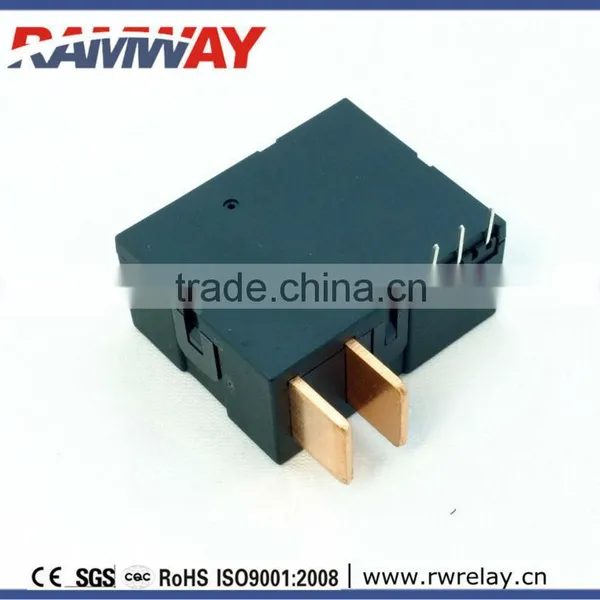

DS903C 90A 6v Relay, Latching Relay

DS903C 90A 6v Relay, Latching Relay thumbnail-1
DS903C 90A 6v Relay, Latching Relay photo-1
US$ 1.7 - 2.12 MOQ: 400 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
Ramway
Model Number:
DS903C 90A
Contact Supplier Request Quote Chat Now
Guangxi Ramway Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangxi, China
Brand Name Ramway
Model Number DS903C 90A
Theory Electromagnetic Relay
Usage Other, Energy Meter,Compoud Switch, Energy Meter,Compoud Switch
Size Miniature
Protect Feature Epoxy
Contact Load High Power

DS903C 90A 6v Latching Relay for Energy Meter,Compound Switch

Specification

Contact Data

Contact Current

90A 250VAC

Contact Form

1A,1B

Contact Resistance

Max 2mΩ(12VDC 1A)

Max.Switching Current

90A

Max.Switching Voltage

440 VAC/110 VDC

Max.Switching Power

20000VA

Electrical Life

5x104OPS

Mechanical Life

1x106OPS



Characteristic

Insulation resistance

1000 MΩ(at 500 VDC)

Dielectric Strength

Between Contact &coil

4000VAC 1min

Between Contacts

1800 VAC 1 min

Operation Time

Max.20ms

Comback Time

Max.20ms

Ambient Temp.

-40~+70°C

Humidity

98%RH,+40°C

Vibration Resistance

10-55HZ,1.5mm(DA)

Termination

Quick connect

Dimension

39.2x31.7x17.9(mm)

Weight

48g(without accessories)



Ordering info

DS903C

Relay model

A

90A

6V

D

T



A,B,C,D,E etc.



Connecting form

Terminal type

60A,80A,100A

Coil voltage

6,9,12,24VDC

Coil type

S=single,D=double

Contact material

D-AgCdO(12)   T-AgSnO2



Shipping&payment

1.MOQ:400 PCS

2.Samples:(1)1~3 PCS Free.

               (2)samples freinght should be paid by buyers.

3.Packing detail:(1)400 PCS per carton

                       (2)carton size:40x35x35(cm)

                       (3)gross weight:26kg

4.Lead time:35 days after sample confirmed and deposit paid.

5.Delivery:FOB Shenzhen

6.Payment details:30% T/T deposit,balance paid by copy of B/L.West Union



Latching relay usage:prepaid energy meter,smart meter,compound switch,intelligent switch,AMR system.

Provide:OEM and ODM service.



DS903C 90A Latching relay for Energy Meter,Compoud Switch
