Specifications
This machine can be applied to various industrial fieldsPipe intersecting line cutting machine
Scope of application:

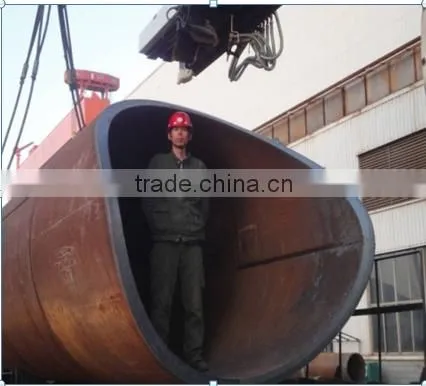

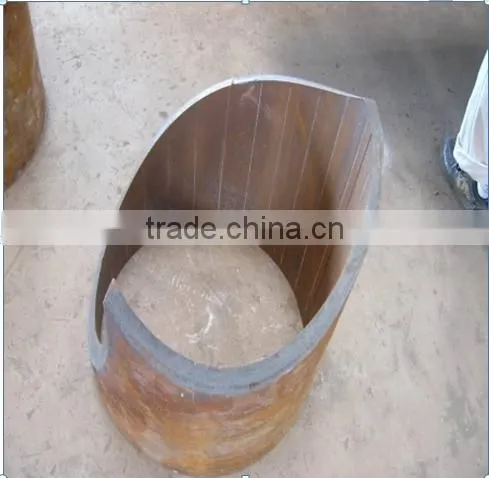

This machine can be applied to various industrial fields,such as Ocean engineering, Steel structure, Chemical pressure container and Bridge etc.It can be applied to tube square groove cutting,include multi-tube space intersecting and small angle cutting in Ocean engineering,especially suitable for super long and superheavy tube and tube with fixed length in Ocean engineering and Bridge. The cutting groove meet the AWS welding standard.
Our equipment has completed the first domestic self-elevating offshore platform construction of pipe intersecting line cutting. Our company has been committed to steel structure cutting in Ocean engineering, and has accumulated a large number of engineering experience in cutting industray,can provide applicable solutions to our customer.
Performance characteristics:

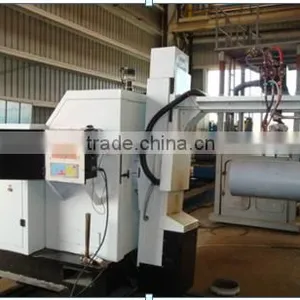

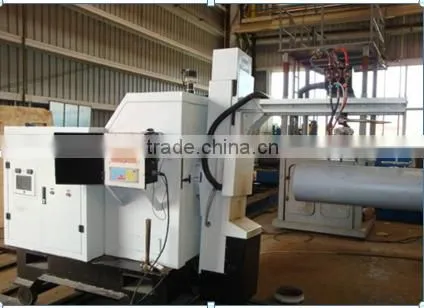

• This machine is a mutiple-axis CNC intersecting line cutting system,it can cut tubes of various complex intersection form in Ocean engineering and steel structure cutting.

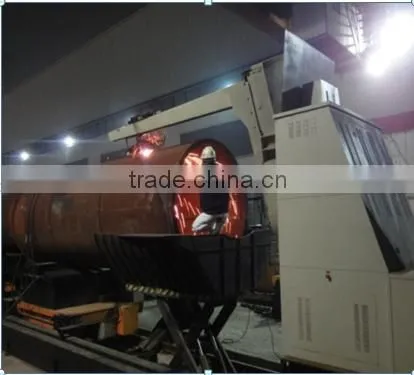

•With the original cutting mode of fixed pipe and equipment rotation,we uccessfully avoid cutting defects caused by pipe of non-standard,achieve high cutting precision.

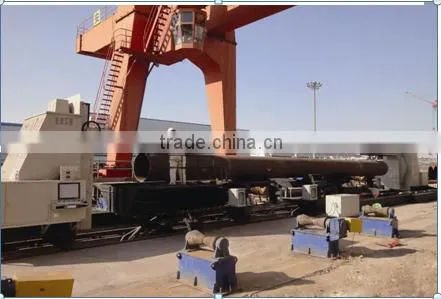

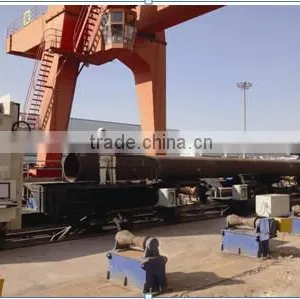

•No cutting zone, saving in material , infinitized by length and weight of pipe etc make it especially suitable for super long and superheavy tube and tube with fixed length in Ocean engineering and Bridge.
•Compact structure, handling without dismounting, the overall transport

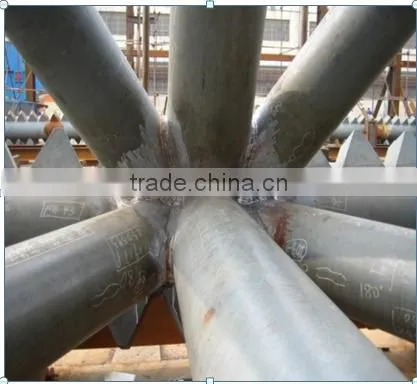

• Can be used for square tube multi-pipe intersection and circular pipe small angle cutting
• Technical parameters :
Type |
GD800 |
GD2000 |
The cutting diameter |
φ100-800 mm |
φ400-2000 mm |
Groove angle |
±65° |
±65° |
Length of the end |
1200 mm |
2500 mm |
Volume of the equipment |
3400mm×1200mm×2500 mm |
5500 mm×1500 mm×3210 mm |
Weight |
2300 kg |
6000 kg |
