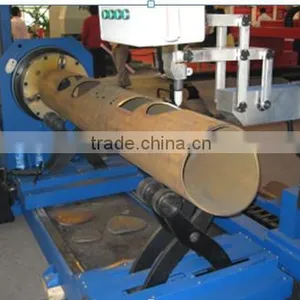

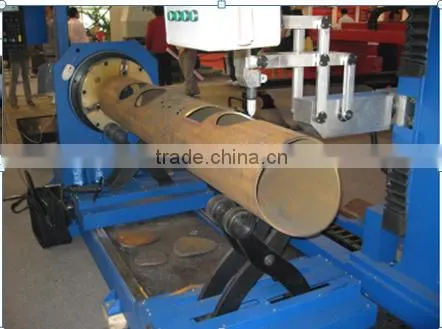

this is a formed cutting equipment used for fully automatic incising intersecting lines with slope on pipes and cutting pipe endPipe Intersecting Lines Cutting Robot
Scope of application
The machine is a formed cutting equipment used for fully automatic incising intersecting lines with slope on pipes and cutting pipe end, for example, one-time molding cutting intersecting lines or opening holes on bearing steel pipes and gas and liquid transporting steel pipes by flame or plasma with high precision and high efficiency. It can be widely used in oil drilling platform, shipbuilding industry, chemical industry, industrial boiler and power station boiler, pressure vessel, electrical power transmission tower, water conservancy, water supply, bridges, crane, construction and other industries.
Features
Self-developed 5-7 axis CNC system; Ac-servo control
3D graphical display, simulation function, simulate processing
Parametric programming of graphic database or special intersecting line software
online test or demonstration for steel pipe, real-time dynamic tracking compensation
Compensation function of cutting gap, thickness, ellipse, groove angle.
Nesting of pipe fittings, continuous cutting, long pipe separate into short slabs.
Main technical parameters
|
Model
|
CPC series(Blocking plate), FWPC series(Friction wheel) |
||
|
Cutting diameter
|
Φ50~1500 mm (customizable) |
Cutting length |
3000~12000m mmcustomizable) |
Cutting manner |
flame/plasma is optional |
Rotation driving |
Blocking plate (Friction wheel is optional) |
Cutting thickness |
flame 6~50mm plasma 3~30mm |
Length localization precision |
0.3mm/2000mm |
Groove angle |
flame±60°/plasma±45° |
Angle localization precision Angular positioning precision |
0.1~0.2°/360° |
Cutting speed |
50~6000mm/min |
Auxiliary function |
pipe ellipticity modification |
Rapid travel rate |
≤12000mm/min |
Controlling Axis |
X,Y,Z,A,B,W+ detection |
Programming method |
Parametric programming of graphic database /Special programming software supporting |
||
