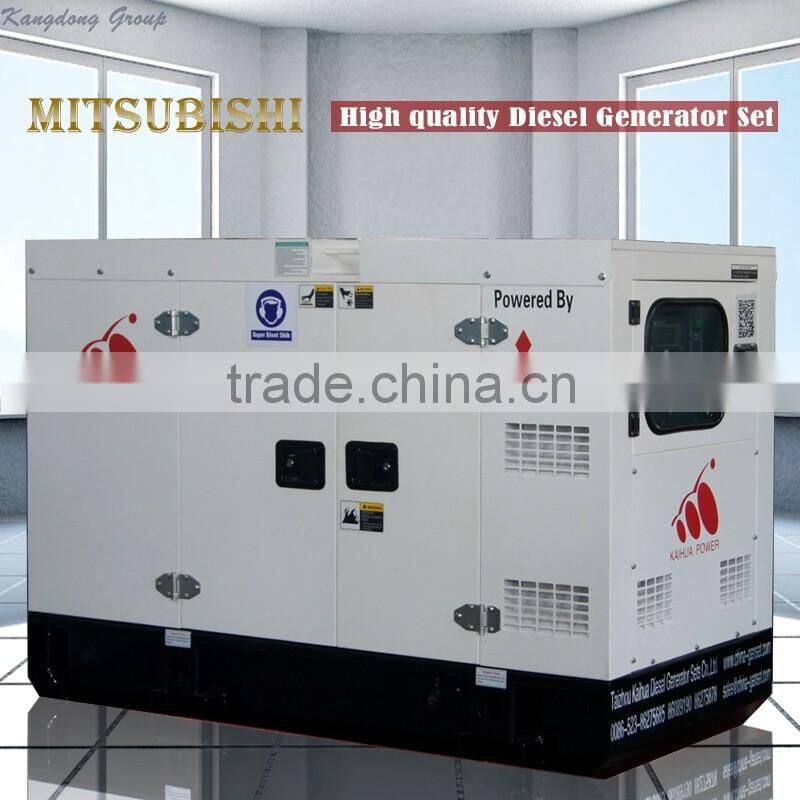

Original japanese 30kva Mitsubishi diesel power generator
the advantage of our genset:
1.high quality reliable and complete power unit.
pact design.
3.easy start and maintenance possibility.
4.our generating set is subject to a comprehensive test program which includes full load testing checking and provision of all contral and safety shut down functions testing.
Technical data | |
Genset Model |
KH-24GF |
Genset Output Power |
30KVA |
Rated Voltage |
400/230V |
Frequency |
50Hz |
Power Factor |
0.8(lagging) |
Dimension (L×W×H) (mm) |
1450*600*990 |
Net weight (kg) |
520 |
Diesel Engine | |
Brand |
Mitsubishi |
Model |
S4S |
Engine Structure |
In line 4cylinder, 4 stroke, Turbo, Air/Air Cooling |
Rotating Speed |
1500r/min |
Engine Cooling Method |
Radiator for ambient temp 40OC, belt driven cooling fan with cover |
Governor System |
Precise electrical governor system |
Starting Method |
24V DC, with Silicon commutating charging motor |
Engine Filter System |
Dry type air filter, fuel filter, oil filter, coolant filter |
Displacement(L) |
3.31 |
Compression Ratio |
15.0:1 |
Bore×Stroke(mm) |
94*120 |
100% load fuel consumption (L/h) |
50 |
Lube capacity(L) |
37 |
Alternator | |
Brand |
Kaijieli(China-French joint venture Leory Somer technology) |
Model |
314BC |
Excite Type |
Brushless ,Self-exciting, AVR automatic voltage regulating |
Connecting Type |
3 Phase and 4 Wires |
Steady Frequency Change |
0~5% |
No load voltage |
≥95%~105% |
Steady voltage |
≤±1% |
Insulation degree |
H degree |
Enclosure degree |
IP21 |
The components of the genset | |
(1) Diesel engine; (2) Generator; (3) Control panel | |
The Accessories | |
Wave pipe , curved pipe , muffler , accumulator and the connecting lines , shock-absorbing spacer , and data . | |
Control Panel | |
The control panel is standard control panel with AMF, with the display of voltage,current, frequency, water temperature, oil pressure. And the protection functions of charge fail, fail to start, low oil pressure, high temperature, over speed and emergency stop. | |
PE Plastic wrapped or plywood cases for option
Warranty
Warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).
Service
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have
distributors all over World that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
FAQ:
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
