150kva Silent Type Generator Set

150kva Silent Type Generator Set thumbnail-1
150kva Silent Type Generator Set thumbnail-2
150kva Silent Type Generator Set thumbnail-3
150kva Silent Type Generator Set thumbnail-4
150kva Silent Type Generator Set thumbnail-5
150kva Silent Type Generator Set thumbnail-6
150kva Silent Type Generator Set photo-1
150kva Silent Type Generator Set photo-2
150kva Silent Type Generator Set photo-3
150kva Silent Type Generator Set photo-4
150kva Silent Type Generator Set photo-5
150kva Silent Type Generator Set photo-6
US$ 10,200 - 17,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
KAITONG
Model Number:
KH-120GF
Contact Supplier Request Quote Chat Now
Jiangsu Kangdong International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or other ports
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name KAITONG
Model Number KH-120GF
Output Type AC Three Phase
Speed 1500RPM
Frequency 50HZ
Rated Power 120KW
Rated Voltage 400/230V
Rated Current 216A

 150kva silent type powered by Cummins generator set

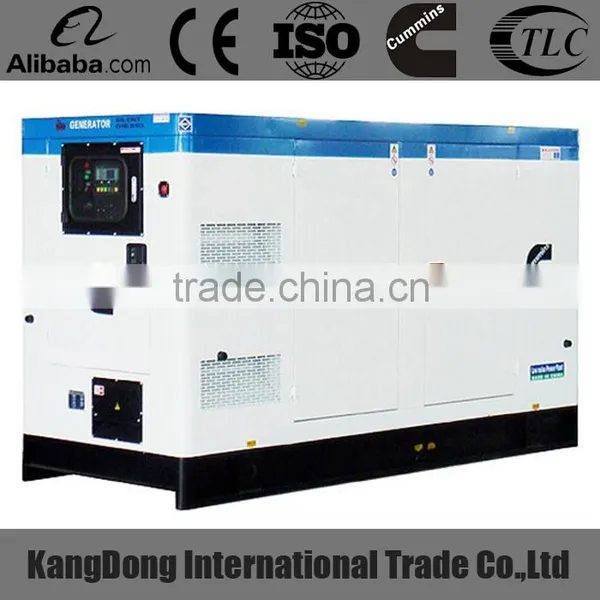

150kva silent type generator set



Product Description





Safety
Design, production and testing of the generator sets comply with EU CE safety standard;
Equipped with circuit breaker to avoid possible electric risk at re- startup when engine stops in emergency.
The controller has a historical operation recording function for troubleshooting and inspection.



Powerful Engines

Adopts world-famous engines,with low noise and low emission.
Rugged structure ensures lowest vibration.
Common rail system: (for some models) significantly lowers the combustion temperature, and also leads to cleaner exhaust.
For the turbocharged machines, the carbon dioxide (CO2) emission is reduced.



Control System

Micro-processor cored digital system.
Multiple languages, automatic control.
Connected with the mains through ATS, which can help realize automatic transfer between the mains and the generators. Also, multiple generators can be paralleled for bigger power needs.





1.Genset Technical Data for  150kva silent type generator set
Gensets model KD-120GF
Prime power 120KW/150kVA
Stangby power 132KW
Rated speed 1500RPM
Output frequency 50Hz

Power Factor(COS

)

 0.8(lagging)
Phase 3
Rated voltage 400/230V
Dimensions(mm) (L×W×H) (silent) 3050*1300*1820
Genset Weight(kg) (sielnt) 1750
2. Specification of diesel engine:
Engine brand Cummins
Engine model 6BTAA5.9-G2
Number of Cylinders 6
Cylinder arrangement Vertical in-line
Cycle Four stroke
Aspiration Turbocharged and Water/Air cooling
Fuel System AD type fuel pump
Bore×Stroke (mm×mm) 102 x 120
Displacement (Liter) 5.9
Compression Ratio 17.0:1
Speed Governor Electrical
Cooling System Forced Water Cooling Cycle
Speed Stability (%) ≤1%
Total lubrication system capacity (L)                      16.3
Fuel Consumption at 100% Load (g/kwh) 211
Starting Method DC24V Electrical starting
3. Specification of alternator
Alternator brand Kaijieli
Alternator model TWGII274EC
Number of Phase 3
Connecting Type 3 Phase and 4 Wires
Number of Bearing 1
Protection Grade IP21
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class H
Telephone Influence Factor (TIF)                            ≤50
THF ≤2%
Voltage Regulation, Steady State                              ≤±1%
Transient State Voltage                                    ≤-15%~+20%
4. Specification of Control Panel(with KAIXUN LCD controller)
The control panel is AMF LCD control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
The features of KAIXUN LCD controller
KAIXUN LCD controller is a new generation Automatic control module for single Genset, which adopts bran-new outline configuration, focus on the requirements of customers, and perfectly improves the performance of controller. It fully meets the auto control requirements of different kinds of Genset for user or special assembly factory.
• True RMS measure of voltage and current.
• Multi-Language menu.
• 128 x 64 pixel LCD display.
• 4 analog inputs for kinds of optional sensors that can be used for measuring oil pressure, coolant
temperature, fuel level and so on; parameters can be configured by user.
• More outputs of configurable auxiliary control relays.
• More configurable isolated digital inputs.
• Buttons on control panel are used for selecting control modes, starting and stopping the operating
procedure, displaying data and modifying the parameters. LED indicators are used for indicating
the operation mode of controller and the running status of
• Flexible equipped with RS485, RS232 and USB, realizing remote monitor; or communicated with
PC, fully realizing functions of remote signaling, telemetering and remote control, can read and set
the running parameters of controller.
• With GPRS-DTU or Ethernet-DTU for remote communication instead of RS485, RS232, or USB
port for remote communication.
• Optional CANbus, read and control the parameters for ECU engine.
• All connections of the controller are by secure plug and socket, for ease and convenience to connect, move, maintain and replace the device.







Packaging & Shipping

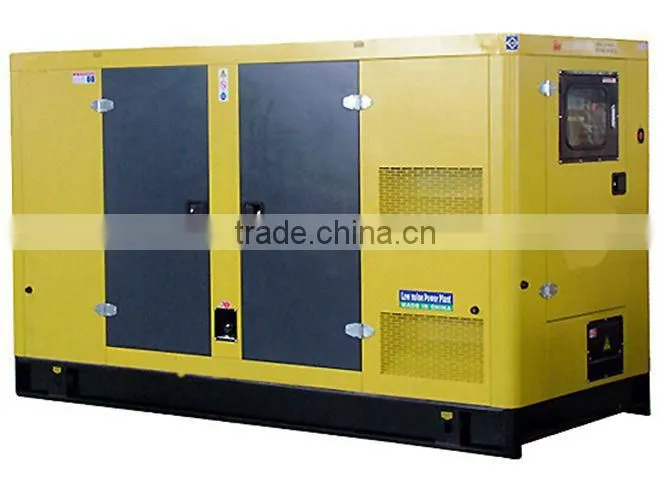

150kva silent type generator set

A. Exporting plywood case  for optional choose if needs packaging

B. Delivery Time Detail:  have generator sets in stock



Genset Installation

Workshop

Jiangsu Kangdong International Trade Co., Ltd is a professional leading Company of diesel gensets in China, We mainly supply:

Engine:                                               Alternator:                                              Control System:

Cummins (USA )                                  Original and OEM stamford                        Deep sea

Deutz Engine(Germany)                        Marathon                                                   Harson

Volvo Engine(Sweden)                          Engga                                                        Smartgen

Doosan Engine(Korea)                                                                                           ComAp

Perkins(UK)   MTU(Germany)

Weichai Engine(China)

Shanghai Engine (China)

Yuchai Engine (China)



Our Services

Warranty

Warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).



Service
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.

2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.

3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have
distributors all over World that support after sale service.

4. Spare parts supply:
We provide all kinds of spare parts and technical support.

5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.

FAQ

FAQ:

1.Q:What's the power range of your generator sets?

A:The main products are ranging from 5KW to 2500KW.



2.Q:How many types of the generator sets do you have?

A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.



3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.

It's near Shanghai & Ningbo port.


4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.


5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
