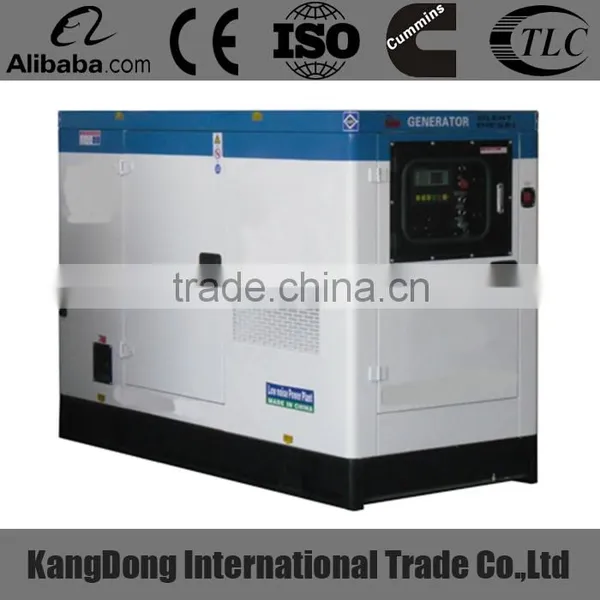

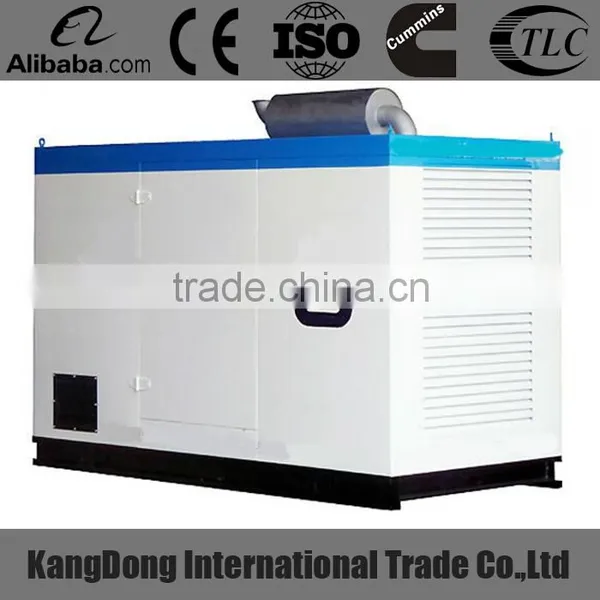

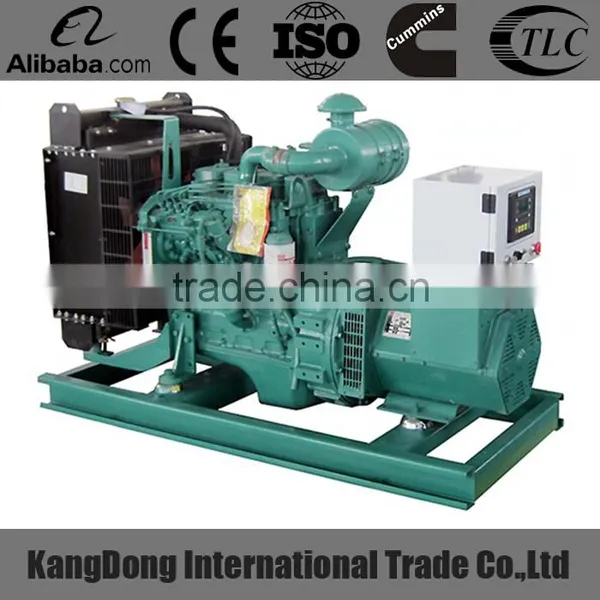

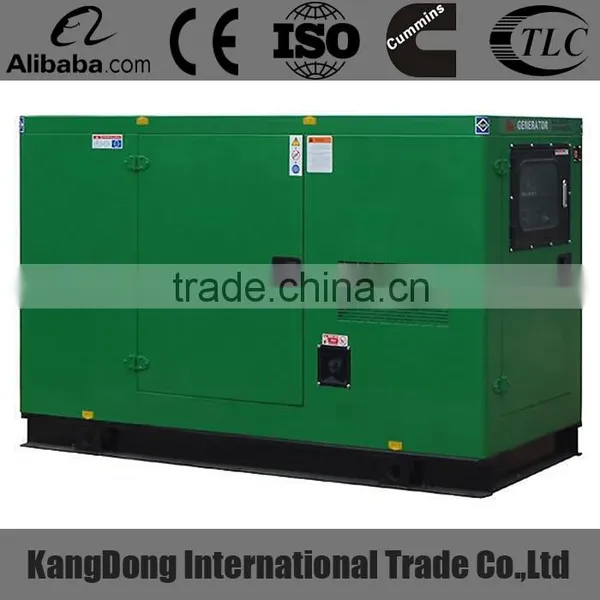

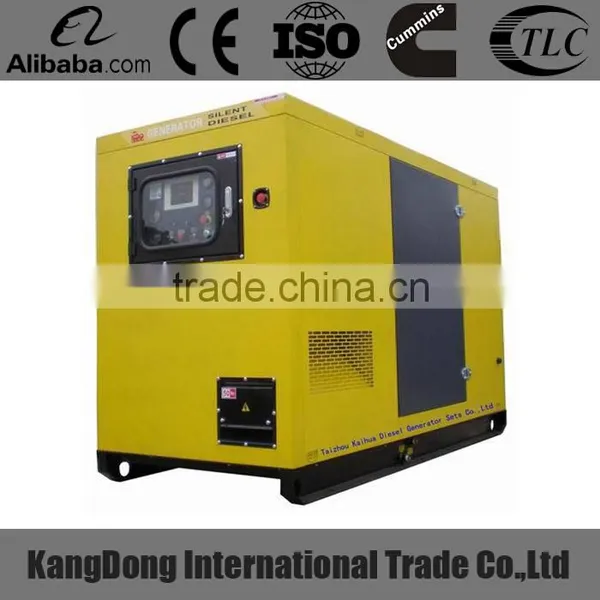

30kva Silent Type CE Approved Diesel Generator

Name: 30kva Silent Type CE Approved Diesel Generator
Brand: KangDong
SKU: 120030899

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

KangDong

Model Number:

KD-24GF

Jiangsu Kangdong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name KangDong

Model Number KD-24GF

Output Type AC Three Phase

Speed 1500RPM

Frequency 50HZ

Rated Power 24kw/30kva

Rated Voltage 380V

Rated Current 45.5A

Specification of diesel engine:
Engine brand				Cummins
Engine model				4B3.9-G2
Number of Cylinders				4
Cylinder arrangement				4 Vertical in-line
Cycle				Four stroke
Aspiration				Natural aspration
Fuel System				A type fuel pump
Bore×Stroke (mm×mm)				102 x 120
Displacement (Liter)				3.9
Compression Ratio				16.5:1
Speed Governor				Electrical
Cooling System				Forced Water Cooling Cycle
Speed Stability (%)				≤1%
Total lubrication system capacity (L)				14.3
Fuel Consumption at 100% Load (g/kwh)				214
Starting Method				DC24V Electrical starting
Specification of alternator
Alternator brand				Kaijieli
Alternator model				TWGII184G
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP21
Altitude				≤1000m
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H
Telephone Influence Factor (TIF)				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%~+20%
Specification of Control Panel(with GU controller)
The control panel is AMF LCD control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
