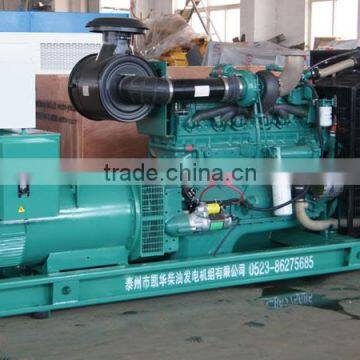

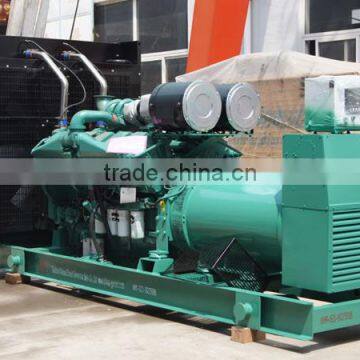

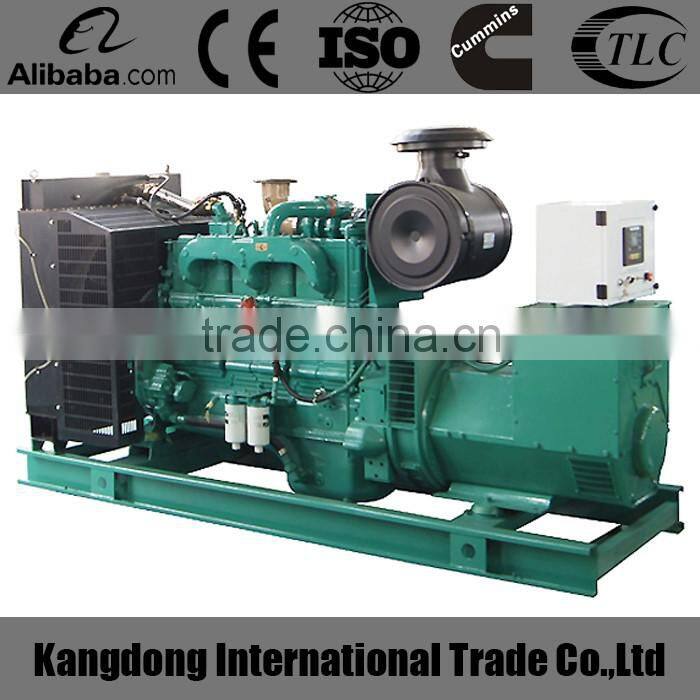

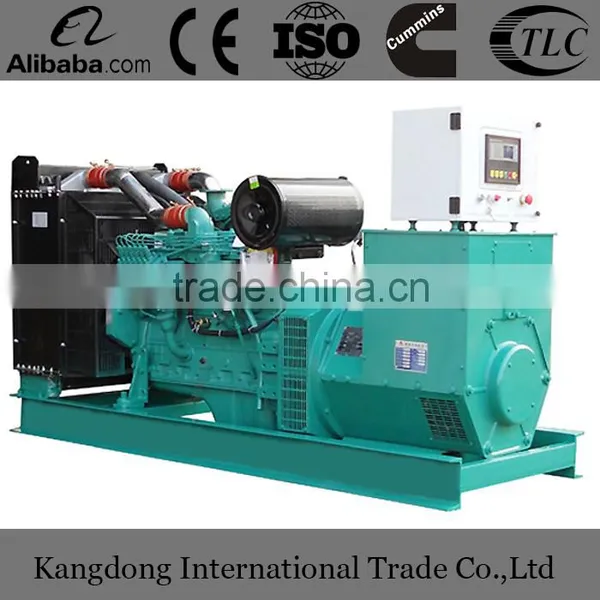

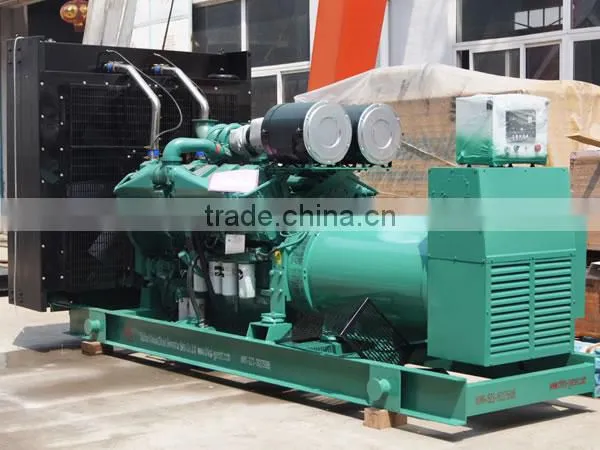

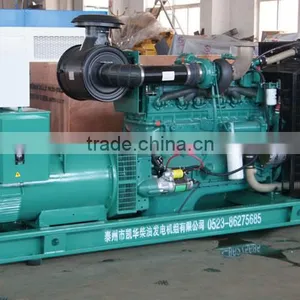

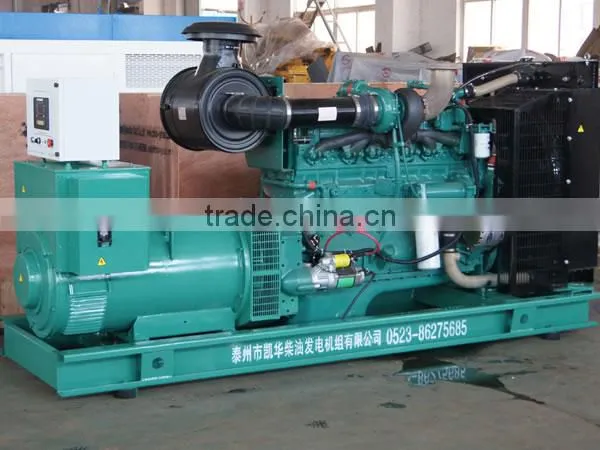

120kw CCEC waterproof diesel generator prices set
| Specification of diesel engine: | |
| Engine brand | CUMMINS |
| Engine model | 6BTAA5.9 |
| Number of Cylinders | 6 |
| Cylinder arrangement | 6 Vertical in-line |
| Cycle | Four stroke |
| Aspiration | Super charging |
| Fuel System | Directly fuel injection |
| Bore×Stroke (mm×mm) | 105 x 124 |
| Displacement (Liter) | 4.3 |
| Compression Ratio | 17.3:1 |
| Speed Governor | Electrical |
| Cooling System | Forced Water Cooling Cycle |
| Speed Stability (%) | ≤1% |
| Total lubrication system capacity (L) | 14.3 |
| Fuel Consumption at 100% Load (g/kwh) | 206 |
| Starting Method | DC24V Electrical starting |
| Specification of alternator | |
| Alternator brand | Kaijieli(China-French joint venture Leory Somer technology) |
| Alternator model | TWGⅡ224D |
| Number of Phase | 3 |
| Connecting Type | 3 Phase and 4 Wires |
| Number of Bearing | 1 |
| Protection Grade | IP21 |
| Altitude | ≤1000m |
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire |
| Insulation Class | H |
| Telephone Influence Factor (TIF) | ≤50 |
| THF | ≤2% |
| Voltage Regulation, Steady State | ≤±1% |
| Transient State Voltage | ≤-15%~+20% |
| Specification of Control Panel(with GU controller) | |
| The control panel is AMF LCD control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function. | |
.
Engine
A. More than 10-hours operation base tank( optional )
B. Deep-sea key start controller (Auto start is optional)
C. Open frame and soundproof canopy
D. Heavy duty industrial diesel engine
a. Compact size
b. Suitable for long time operation
c. Low maintenance cost
Cooling system
Combination cooling water tank fitted to meet the requirement of radiation at ambient.
Alternator
A. Optional permanent magnet generator system provides constant excitation under all conditions.
B. Easy paralleling with mains or other generators, standard 2/3 pitch winding. To avoids excessive neutral currents.
C. Dynamically balanced rotors with sealed for life ball bearings and single construction
D. Class "H" insulation system.
E. Wide range of flanges and adapters and disc couplings.
F. Conforms to all leading industrial and marine standards.
Control system
A. Auto alarm system
The unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current.
B. Operation display.
a. Unit voltage, tri-phase load current and frequency display
b. Water temperature, oil pressure display
c. Fuel level, fuel temperature display
d. Audible and visual alarm lamps and buzzers
Supply standard collocation
A. Diesel engine with all accessories, 3 filters and electric systems.
B. Alternator
C. Steel structure
D. Fan and water tank cooling system
E. Flange connector
F. 12/24V starting motor and charge engine
G. Air cleaner, fuel cleaner, oil cleaner
H. On-board control panel
I. MCCB air conservation switch
J. 12/24V starting accumulator and battery line.
K. Set shock absorber
L. High-efficient silencer
Optional Equipment

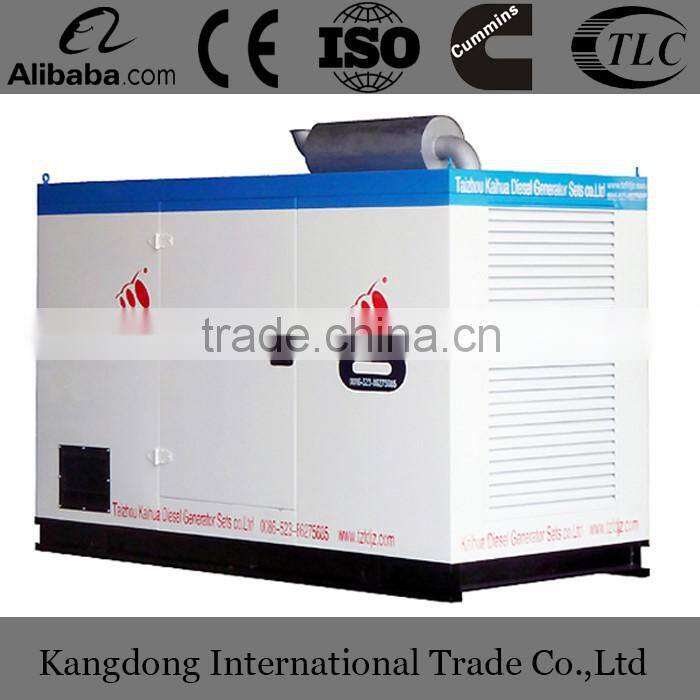

1. Soundproof enclosure
2. ATS Automatic Starting Switch
3. Trailer mounting
4. 3 phase protection breakers for voltage and high currency
All-weather performance
- Good ventilation system and prevent heat radiation measures to ensure that the crew always work in the appropriate temperature.
- Muffler materials used for noise reduction greatly inhibited the mechanical noise.
- Mufflers of antenna and sound-absorbing mode, to greatly reduce the emission of exhaust noise.
- Damping efficient measures to ensure the smooth operation of diesels generators.
- 65-85 (dBA) 7 meters from gen-set.
- Containerized structure, perfect shape, lifting convenient, rainproof, anti-snow-proof, sun-proof, suitable for outdoor operation.
Note: (Rating definitions)
- Continuous Power output
- These ratings are applicable for supplying continuous electrical power (at variable load) in lieu of commercially purchased power. There is limitation to the annual hours of operation and these ratings can supply 10% overload for 1 hour in 12 hours.
- Standby Power Output
- These ratings are applicable for supplying continuous electrical power (at variable load) in the event an ability power failure.
- No overload is permitted on these ratings, the alternator on these ratings is peak continuous rated (as defined in ISO8528-3) at 27°c
- Model with Suffix "S"

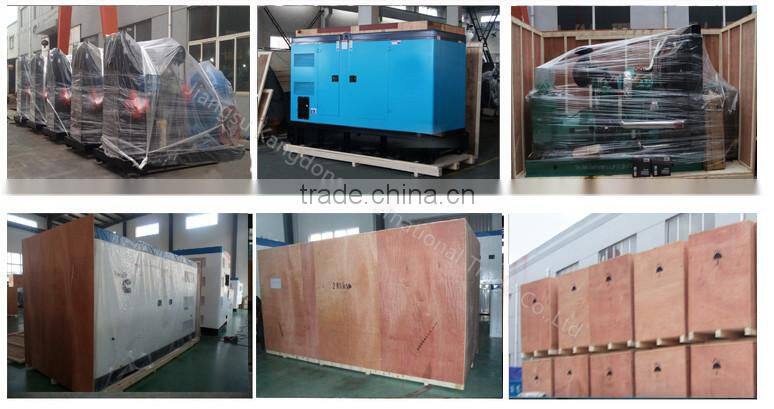

A. Exporting plywood case for optional choose if needs packaging
B. Delivery Time Detail: within 10 days to 28 days (2 or 4 weeks)
FAQ:
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
