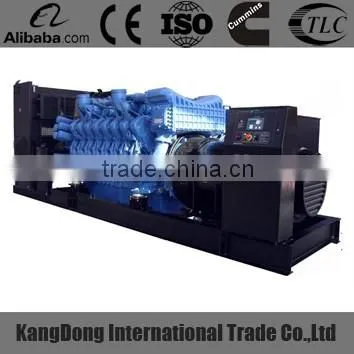

CE Approved Germany Mtu Diesel Generator Set 1800kw/2250kva

Name: CE Approved Germany Mtu Diesel Generator Set 1800kw/2250kva
Brand: Kaitong
SKU: 120025809

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Kaitong

Model Number:

KD-1800GF

Jiangsu Kangdong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Kaitong

Model Number KD-1800GF

Output Type AC Three Phase

Speed 1500rpm

Frequency 50Hz

Rated Power 1800KW

Rated Voltage 400V

Rated Current 3240A

CE approved germany mtu diesel generator set 1800kw/2250kva

1. Specification of genset
Gensets model				KD-1800GF
Prime power				1800kw/2250kva
Standby power				2000kw/2500kva
Rated Voltage				230V/400V
Rated frequency(HZ)				50HZ
Rated Speed				1500rpm
Power Factor				0.8(lagging)
Dimensions of silent type(mm) (L×W×H)				1204222882596
Dimension(mm)(packaged)(L×W×H):				1219224382896
Net Weight of silent type(kg)				1190
Gross weight (kg)				1290
2. Specification of diesel engine
Engine brand				MTU
Engine model				16V4000G63
Number of Cylinders				16
Max.standby power at rated rpm				2162kw
Cylinder arrangement				in"V"
Aspiration				Turbo charged
Bore×Stroke (mm×mm)				170*210
Displacement (Liter)				76.3
Compression Ratio				16.5:1
Speed Governor				Electronic
Cooling System				Forced Water Cooling Cycle
Fuel Consumption at 100% Load (g/kwh)				423.3
Starting Method				DC24V electrical starting
3. Specification of alternator
Alternator brand				SIEMENS
Alternator model				1FC2564-4
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP23
Altitude				≤1000m
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H
Telephone Influence Factor (TIF)				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%~+20%

1)MTU engine 2)SIEMENS alternator 3)AMF control panel 4)Silent Box
