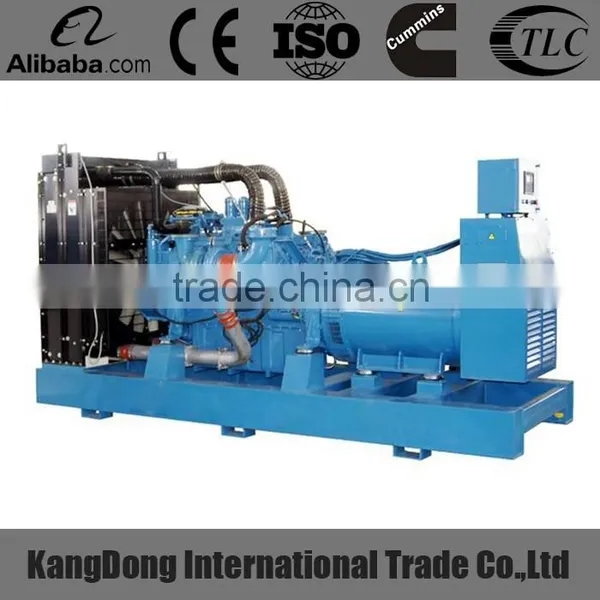

CE Approved 1000kva Mtu Engine Generator Set

Name: CE Approved 1000kva Mtu Engine Generator Set
Brand: KAITONG,KAIHUA
SKU: 120025823

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

KAITONG,KAIHUA

Model Number:

KD-800GF

Jiangsu Kangdong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai or other port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name KAITONG,KAIHUA

Model Number KD-800GF

Output Type AC Three Phase

Speed 1500RPM

Frequency 50HZ

Rated Power 800KW

Rated Voltage 380V

Rated Current 1520A

Diesel engine
Engine brand				MTU
Engine model				16V2000G65
Number of Cylinders				16
Cylinder arrangement				16 in V
Cycle				Four stroke
Aspiration				Turbocharged
Fuel System				Electonically controlled high-pressure injection with single unit injection pumps
Bore×Stroke (mm×mm)				130 x 150
Displacement (Liter)				31.84
Compression Ratio				16.0:1
Speed Governor				Electrical /ADEC
Max.Exhaust Back Pressure:(kPa)				8.5
Cooling System				Forced Water Cooling Cycle
Exhaust Gas Flow:(m³/h)				10620
Exhaust Gas Temperature:(°C)				530
Cooling Air Flow:(m³/h)				74160
Speed Stability (%)				≤1%
Oil Pan Capacity(L)				102
Fuel Consumption at 100% Load (g/kwh)				198
Starting Method				DC24V Electrical starting
Alternator
Alternator brand
Alternator model
Number of Phase				3
Connecting Type				3 Phase and 4 Wires
Number of Bearing				1
Protection Grade				IP21
Altitude				≤1000m
Exciter Type				Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire
Insulation Class				H
Telephone Influence Factor (TIF)				≤50
THF				≤2%
Voltage Regulation, Steady State				≤±1%
Transient State Voltage				≤-15%~+20%
Control Panel
The control panel is AMF LCD control panel, with the display of voltage,current, frequency, water temperature, oil pressure. The genset with low oil pressure,high water temperature,over speed,over load protection function.
