Home > Products > Gas Gensets > 250KVA Open Type Gas Generator Sets
250KVA Open Type Gas Generator Sets
- 15 Set / Sets per Month
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Place of Origin | Jiangsu, China | Brand Name | KangDong | |
Model Number | KD-200GF | Output Type | AC Three Phase | |
Speed | 1500rpm | Frequency | 50hz | |
Rated Power | 200kw | Rated Voltage | 400/230V | |
Rated Current | 360A |
Product Description

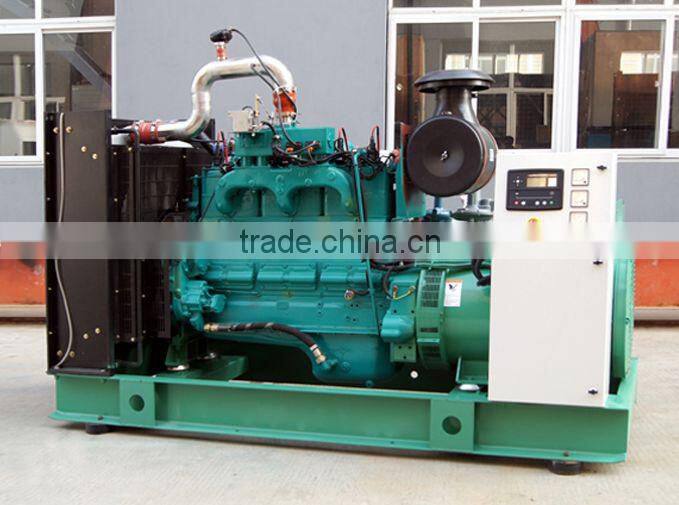

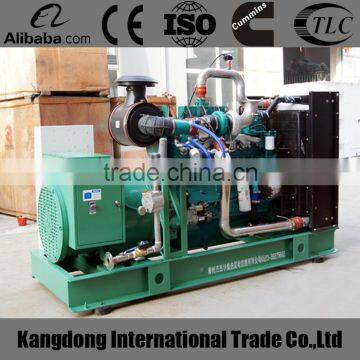

250KVA Open Type Gas Generator Sets
Specifications | Stangby power | KW | 200 |
Rated power | KW | 180 | |
Frequency | Hz | 50 | |
Rated voltage | V | 220/380 | |
Rated Anpere | A | 324 | |
Power Factor | COSΦ | 0.8 | |
Phase | — | 3 phase | |
Engine Specifications | Model | — | Cummins NTAA855NG |
Displacement | L | 14 | |
Speed | RPM | 1500 | |
Bore*Stroke | mm*mm | 140×152 | |
Starting method | — | DC24V electric start | |
cooling method | — | water-cooling | |
oil capacity | L | 36 | |
oil cololer | — | with | |
Alternator Specifications | Model | FARADAY FD3H | |
Phase | — | 3 phase | |
Connecting method | — | Direct connect | |
Wayof excitation | brushless self-exitation | ||
Insulation grade | — | lever H | |
Speed governor | — | WOODWARD | |
Gensets Specifications | Controller type | — | 9901 |
Display | — | LCD | |
ATS | — | without | |
Fuel | — | CNG | |
Gas inlet pressure | kPa | 3-10kPa | |
Fuel consumption | m³/h | 60 | |
Dimension | mm*mm*mm | 2900*1200*1850 | |
Net weight | kg | 2600 | |
Noise(7 meters) | dB(A) | <85 | |
Protection level | — | IP23 |
A. Exporting plywood case for optional choose if needs packaging
B. Delivery Time Detail: have generator sets in stock
Jiangsu Kangdong International Trade Co., Ltd is a professional leading Company of diesel gensets in China, We mainly supply:
Engine: Alternator: Control System:
Cummins (USA ) Original and OEM stamford Deep sea
Deutz Engine(Germany) Marathon Harson
Volvo Engine(Sweden) Engga Smartgen
Doosan Engine(Korea) ComAp
Perkins(UK) MTU(Germany)
Weichai Engine(China)
Shanghai Engine (China)
Yuchai Engine (China)
Warranty
Warranty is according to our standard conditions:12 months or 1,000 running hours, subject to the earlier one (artificial damage to be an exception).
Service
1. Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2. Service quality assurance:
Our sale staffs are all experience and professional,we can provide the most proper system design and optimized equipment for the customers.
3. After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance, We have
distributors all over World that support after sale service.
4. Spare parts supply:
We provide all kinds of spare parts and technical support.
5. Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
FAQ:
1.Q:What's the power range of your generator sets?
A:The main products are ranging from 5KW to 2500KW.
2.Q:How many types of the generator sets do you have?
A:Diesel,gasoline,natural gas,marine,water pump,high-voltage generator sets,etc.
3.Q:Where is your factory located?
A: Our factory is in Taizhou city, Jiangsu Province, China.
It's near Shanghai & Ningbo port.
4.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.
5.Q:How about quality control in your factory?
A:"Quality is the life".
We are always paying great attentions to
quality controlling from the beginning to the end. Every piece of goods is tested strictly one by one before packing.
We keep goods to meet the standard of CE,CCC, ISO9001:2000.
