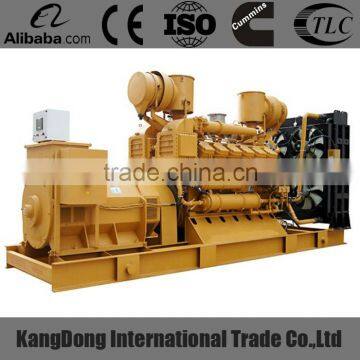

Help CenterCE Approved 200kw Natural Gas Generator With CHP System
Related Products
-
Natural Gas Electric Generators for Sale! 25kva-500kva Large RangesUS$ 60,000 - 80,000MOQ: 1 Set -
Promotion!500Kw Soundproof Natural Gas Generator With CHP SystemNegotiableMOQ: 1 Set
-
Main Technical Parameters 200kw Natural Gas Generator CE ApprovedNegotiableMOQ: 1 Set
-
Hot Sale! 100kw Natural Gas Generator With CHP SystemNegotiableMOQ: 1 Set
-
Promtion China Brand 400kw Natrual Gas Generator With CHP SystemNegotiableMOQ: 1 Set
General requirement of Gas Generator :
1. Gas source requirement:
Gas inlet pressure: 0.8-2.0kpa (higher water pressure must use decompression machine)
Caloric value : ≥5000 kcal/Nm3 or ≥21MJ/Nm3 (lower heat value will decrease the gen-set power output)
H2S ≤ 20mg/Nm3
Impurity granularity ≤ 5 μm
Impurity content ≤ 30 mg/Nm3
Water content ≤ 40mg/Nm3
CH4 content ≥ 50%
(The gas must be to desulfurize and dehydrate and dust removal before inlet methane generator)
2. Application area:
Biogas generator: dairy and poultry farm, food processing ( starch, alcohol, palm oil ),industrial waste, Bio garbage processing, landfill etc.
Natural gas generator : Pipeline natural gas, liquid natural gas (LNG),coal mine industry, crude oil industry.
LPG generator : Crude oil industry.
Main Technical Parameters of 200kw Natural Gas Generator
Genset | |
Model |
KD-200GF |
Rated power (KW/KVA) |
200KW |
Rated current (A) |
360A |
Rated voltage (V) |
400/230 |
Rated frequency (HZ) |
50/60 |
Rated speed(r/min) |
1500/1800 |
Phases arrangement |
3Phase 4Wire |
Excitation method |
Brushless |
Voltage regulation |
AVR(Automatic Voltage Regulation) |
Gas Engine | |
Type |
four stroke,ECU control high energy spark plug ignition, water cooled |
Cylinder No. and layout |
4/6/12 inline or Vee type |
Rated speed (r/min) |
1500/1800 |
Aspirated mode |
Natural or turbocharge intercooled |
Speed regulation mode |
Electronic governor |
Starting method |
DC 24V Electrical starting |
Cooling method |
Closed water cooling cycle |
Lubrication method |
Pressure and splash lubricating |
Fuel consumption(Nm3/kw.h) |
0.6 (biogas), 0.3(natural gas) |
Alternator | |
Brand |
Stamford or Marathon or Chinese brand |
Type |
Pure copper brushless |
Rated power (KW/KVA) |
from 10kw/12.5kva to 1000kw/1250kva |
Insulation class |
H |
Protection class |
IP22 |
Excitation mode |
Brushless with AVR |
Control Panel | |
|
Function : 1. Adopt Gen-set controller with LCD display, taking microprocessor as the core. 2. Adopt ATS( automatic transfer switch) to achieve the automatic transfer from the generated electricity to grid electricity 3. The monitor and display on the voltage, current, frequency, active/apparent power, power factor of the generated electricity /grid electricity etc. 4. The monitor and display on the gen-set’s water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts 5. Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc. | |
1) Valve seat materials are imported special steel, valve use wear-resistant materials and the latest technology.
2) Piston and cylinder head production using new materials, high-performance low-emission hybrid rapid combustion cylinder. Combustion control technology to protect machine film.
3) Change the duration of the ignition control,long-life spark plugs.
4) Intergrated control diagnostics, intergrated approach to control the explosion-proof technology.
1) Valve seat materials are imported special steel, valve use wear-resistant materials and the latest technology.
2) Piston and cylinder head production using new materials, high-performance low-emission hybrid rapid combustion cylinder. Combustion control technology to protect machine film.
3) Change the duration of the ignition control,long-life spark plugs.
4) Intergrated control diagnostics, intergrated approach to control the explosion-proof technology.
Standard Configuration of Gas Generator:
1. New gas engine
2. Radiator 40°C max,fans are driven by belt,with safety guard
3. 24V charge alternator
4. New Alternator(Stamford or Marathon),single bearing, IP22-23, insulation class H,brushless
5. Steel frame base, shock absorber
6. Gas pressure regulator(MADAS,Italy),air and gas mixer(IMPCO,USA)
7. Electronic speed governor and actuator
8. Back-fire relief valve
9. Dry type air filter, oil filter
10.Main line circuit breaker
11.Digital automatic control panel
12.Emergency stop button
13.Two 12V batteries,rack and cable
14.Ripple flex exhaust pipe,exhaust siphon, flange, muffler
15.Spare parts and tools, User manual etc.
Optional Equipment :
1.Oil/coolant heater
2.ATS(Automatic Transfer Switch)
3.Soundproof canopy
4.Parallel system
5.Grid-connect system
6.CHP/Cogeneration
Why Us?
1. We kandgdong professional gas generator set manufacturer over 10 years,one of the first batch to research and develop internal-combustion gas engine gensets in China.
2. One continous 8 years' supplier on ,and aslo certificated by world famous TUV Rheinland.
3. Reliable quality, all generators are test serious on 0, 25%, 50%,75%, 100%,110% load before delivery,to ensure the genset can run continuous with various conditions.
4. Service quality assurance, we maintain enough storage of spare parts for all the equipment that we sale, to ensure the supply in time.
5. The most fast delivery,within 5-7days on popular genset type.
When you are looking for gas gensets,you may get your ideal ones from us,pls contact us,let us talk more!
