Specifications
1.30years experience
2.ISO9001,ISO14001
3.Mini order:10boxes
4.FOB price:0.15-0.3USD/M
5.Copper:24AWG
Specifications:
1)d.c resistance (max): 9.50Ω/100m at 20°C
2) D.C. resistance unbalanced (max): 2.5%
3) Mutual capacitance (max): 5.6 nF/100m
4) Capacitance unbalanced (max): 330pF/100m
5)Dielectric strength between conductors(min):2.5kV/2s;
6)Impedence:1-100MHz 100±15Ω;
7)Operating temperature:-20~+60°c.
Pairs colors:
a) White/blue b) White/orange c) White/green d)White/grey
Materials:
a) Conductor: 24AWG copper
b) Insulation: solid HDPE
c) Sheath: PVC/PE/LSNHP
Packing:
1,000 feet (305m) per box 500m - 1000m per wooden reel Custom order lengths are available upon request
Transmission performance:
frequency |
attenuation |
NEXT |
PSNEXT |
ELFEXT |
RL |
PHASE VELOCITY |
PHASE DELAY |
1 |
2 |
65 |
62 |
64 |
20 |
0.585c |
570 |
4 |
4.1 |
56 |
53 |
52 |
23 |
--- |
552 |
10 |
6.5 |
50 |
47 |
44 |
25 |
0.611c |
545 |
16 |
8.2 |
47 |
44 |
40 |
25 |
--- |
543 |
20 |
9.3 |
46 |
43 |
38 |
25 |
--- |
542 |
31.25 |
11.7 |
43 |
40 |
34 |
24 |
--- |
540 |
62.5 |
17 |
38 |
35 |
28 |
22 |
--- |
539 |
100 |
22 |
35 |
32 |
24 |
20 |
0.620c |
538 |
cable structure:

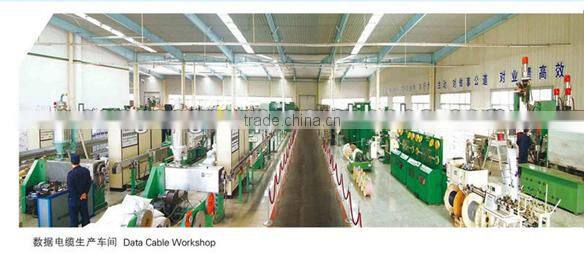

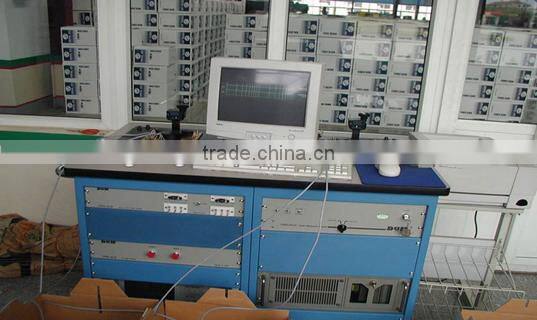

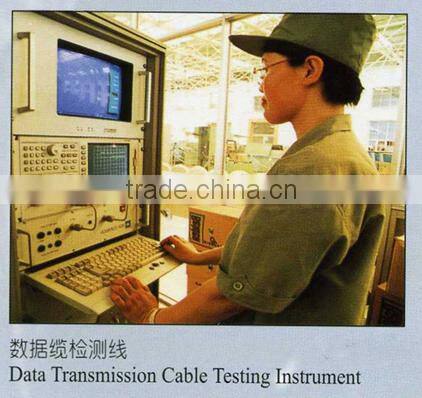

And also the production picture and testing:
Best regards,
David.li
Tel: +86-631-8353129 Phone:+86-13563191771
Skype:Wonderlishipeng
