Specifications
1.27 years experience2. ISO9001,ISO14001
3.IEC708,PE-22,ANSI/ICEAS-84-608
ecommunication cable
5.FOB price:$0.2-5/mete
Specifications:
1) Type: HYAT
2) Size: 5 - 2,400 pairs
3) Executive standard: .IEC708,PE-22,ANSI/ICEA-84-608
4) Certificated: ISO9001,ISO14001
Electrical characteristics:
D.C resistance 20°c(Max): Ø0.4mm-148.0Ω/km
Ø0.5mm-95.0Ω/km
D.Cresistance unbalance (Max) :5%(Average value not exceed)1.5%
Mutual capacitance(Avg): 52±2nF/km(more than 10pairs)
52±4nF/km(more than 10pairs)
Insulation resistance(Min): 3000MΩ.km(FILLING CABLE)
Insulation dielectric strength DC: 2kV/3s(Conductor to conductor),1kV/3s(conductor to shield).
Features:
1) Structure: annealed copper conductor, solid polyolefin insulation, filling compound, polyester coated aluminum tape (PAP) longitudinally wrapped, PE sheathed local communication cable
2) Installation temperature: not lower than -5°C
3) Operation temperature: -30°C - +60°C
4) Minimum bending radius: not less than 15 times the outer diameter when the outer diameter is 40mm or less and not less than 20 times the outer diameter when the outer diameter larger than 40mm
5) Usage: transmitting audio frequency signals, analog signals up to 150kHz or digital signals up to 2,048kbps
6) Application mode: aerial ,duct
Inner packing:
non-wooden-iron composite drums, strong enough for handling, long distance shipment and storage or according to customer's requirement.
Outer packing:
non-wooden battens used to protect the drummed cable or metal tape secured outside
Applications:
For transmission of audio signal, analog signal (not above 150KHz) and digital signal (not above 2048kbit/s), also for transmission of digital signal above 2048kbits/s under certain conditions.
Laying method: aerial.

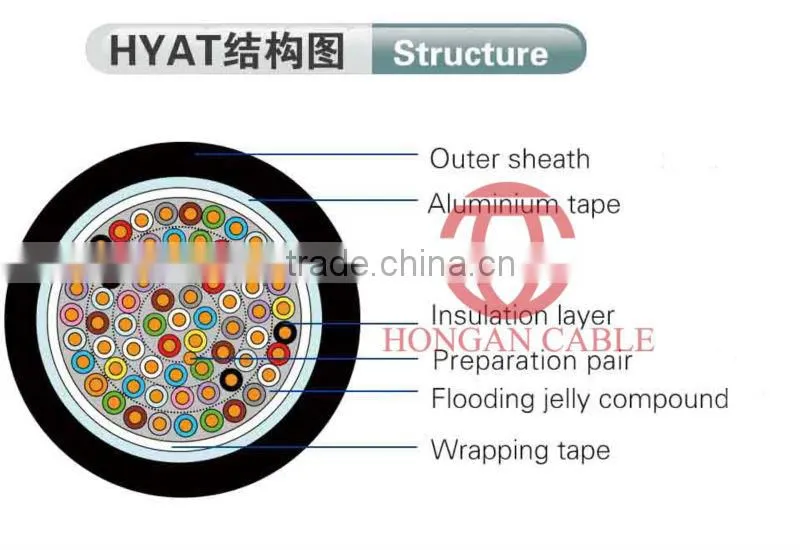

Structure:

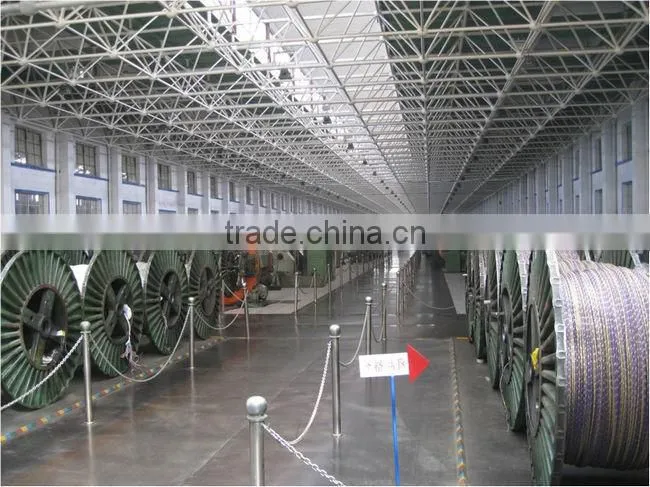

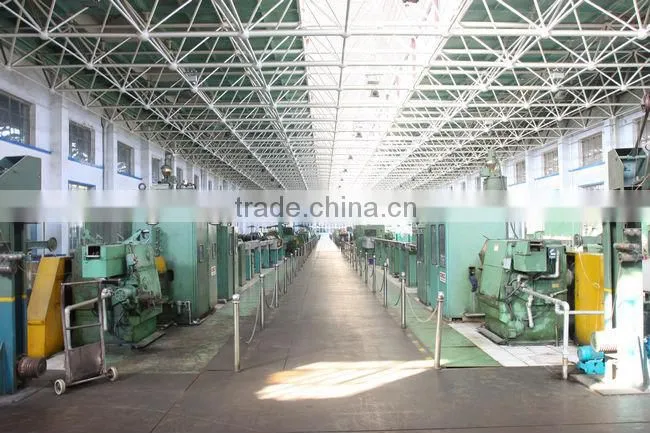

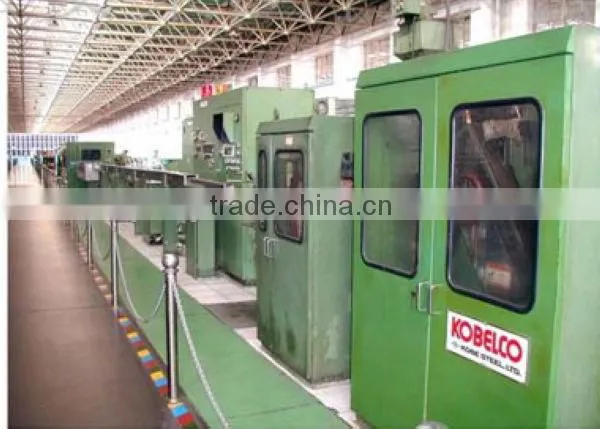

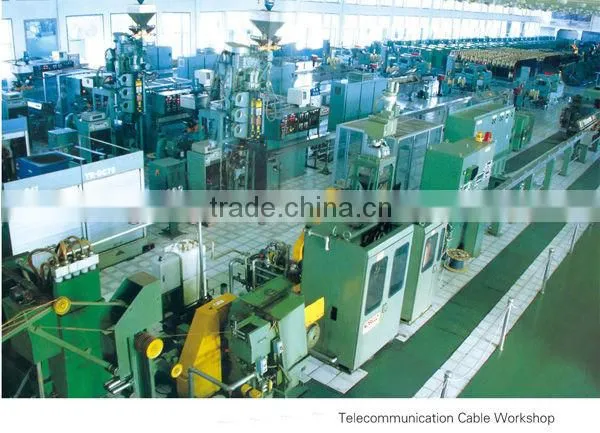

product lines:

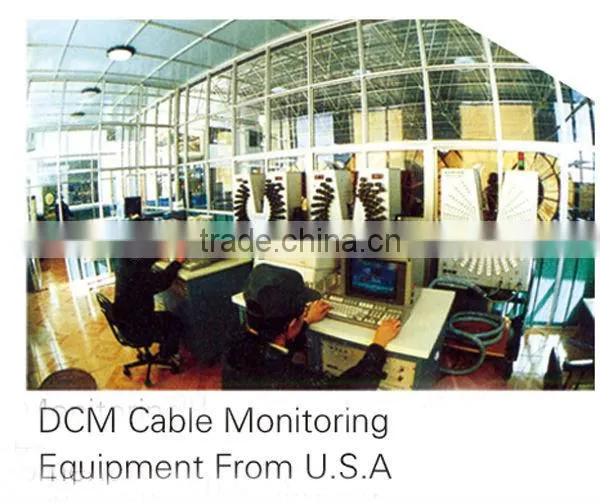

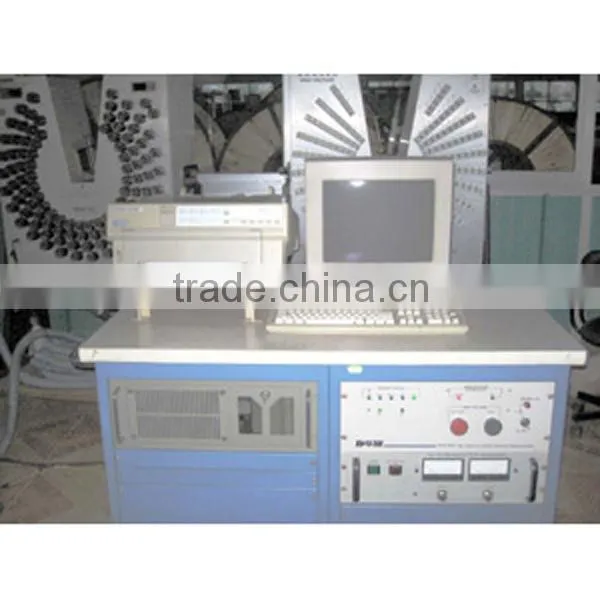

test equipments:
