Specifications
Copper Core, Solid Polyethylene Insulated, Aluminium Shielded, Poyethylene Sheathed Communication CableSpecifications
underground duct cable
1)Conductor: BC, 0.40,0.50, 0.60,0.80,0.90
2)PE insulation, Al tape armoured
3)PE jacket
4)OEM order accepted
Underground jelly filled cable
1. Type: Underground jelly filled and unarmoured cable HYAT
Size: 10-2400pairs
Referred Standard: IEC, ASTM, BS
2. Structure: annealed copper conductor, solid polyolefin insulation, Jelly filled, polyester coated aluminum tape (PAP) longitudinally wrapped, PE sheathed local communication cable
3. Min. bending radius: Not less than 15 times of the outer diameter when the outer diameter is not more than 40mm and not less than 20 times of the outer diameter when the outer diameter larger than 40mm
4. Usage: Transmitting audio frequency signals, analog signals up to 150kHz or digital signals up to 2048kbit/s and in certain condition can carry digital signals, which is higher than 2048kbit/s
5. Application mode: conduit, direct buried

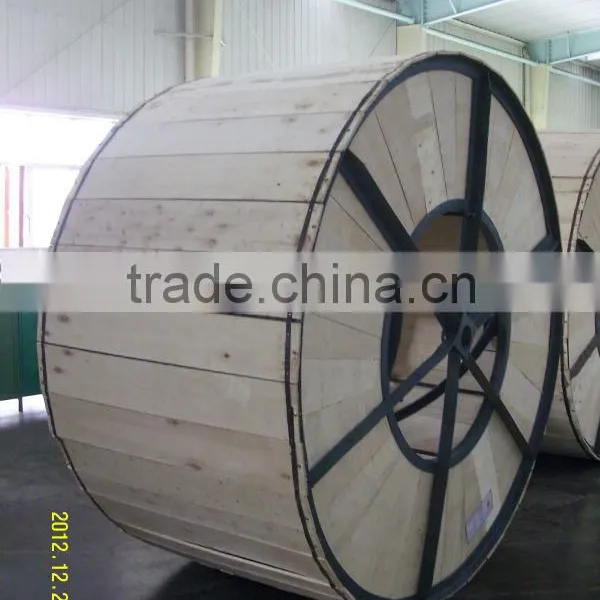

6. Inner packing: delivery on wooden-iron composite drums, strong enough suitable for handling, long distance shipment and storage
7. Outer packing: wooden battens to be used to protect the drummed cable or even a metal tape secured outside
8. Packing:Iron wooden drum
