UTP CAT6A 23AWG Network Cable
US$ 0.1 - 9
/ Box
10 Boxes(Min. Order)
- qingdao port
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | hongan | |
| Model Number | HSYV6 | Type | Cat 6a | |
| Number of Conductors | 4 |
Product Description
Specifications
1.30 years experience2. ISO9001,ISO14001
3.IEC11801,EIA-568B
4.Mini. Order: customer's demand
5.FOB price:$0.01-8/meter
Physical Electrical Characteristics
- DC resistance (max): 7.5Ω/100m at 20°C;
- Mutual capactitance (max): 5.6nF/100m;
- Unbalanced capacitance (max): 330pF/100m;
- Dielectric strength between conductors (min): 2.5kV/2s;
- Impedance: 1-250MHz 100±15Ω;
- Differential phase delay (max): 45ns/100m;
- Operating temperature: -20~+60°C;
- Permitted bend radius: 10 times diameter of the cable.
Material instruction:
- Conductor: 23AWG Copper;
- Insulation: Solid HDPE or Skin-Foam-Skin PE;
- Sheath: Environment Friendly PVC or Flame resistance PE or low smoke zero halogen polyolefin (LSZHP);
Features of product
- More bandwidth secess than 250MHz standard required;
- Support 10-Gigabit Ethernet netword transmission requirements;
- Comply with ROHS standard;
- The products of special outer sheath or purpose can be designed according to customer’s demands.
Applications
- 10Base-T4
- 100Base-TX
- 100Base-VG-ANYLAN
- 155Mbps ATM
- 622 Mbps ATM
- 1000Base-T
- 1000Base-TX
- 10Gbase-T
Standards
- ISO/IEC11801
- ANSI/TIA/EIA-568-B.2
Transmission Performance
| frequency (MHz) | attenuation (Max) (dB/100m) | NEXT (Min.) (dB/100m) | PSNEXT (Min.) (dB/100m) | ELFEXT (Min.) (dB/100m) | RL (Min) (dB) | PHASE VELOCITY (Min)(m/s) | PHASE DELAY (Max) (ns/100m) |
| 1 | 1.9 | 74 | 72 | 68 | 20 | 0.585c | 570 |
| 4 | 3.7 | 65 | 63 | 56 | 23 | --- | 552 |
| 10 | 5.9 | 59 | 57 | 48 | 25 | 0.611c | 545 |
| 16 | 7.5 | 56 | 54 | 44 | 25 | --- | 543 |
| 20 | 8.4 | 55 | 53 | 42 | 25 | --- | 542 |
| 31.25 | 10.6 | 52 | 50 | 38 | 23.6 | --- | 540 |
| 62.5 | 15.4 | 47 | 45 | 32 | 21.5 | --- | 539 |
| 100 | 19.8 | 44 | 42 | 28 | 20.1 | 0.620c | 538 |
| 200 | 29 | 40 | 38 | 22 | 18 | 537 | |
| 250 | 32.8 | 38 | 36 | 20 | 17.3 | 0.622c | 536 |
Cable structure:

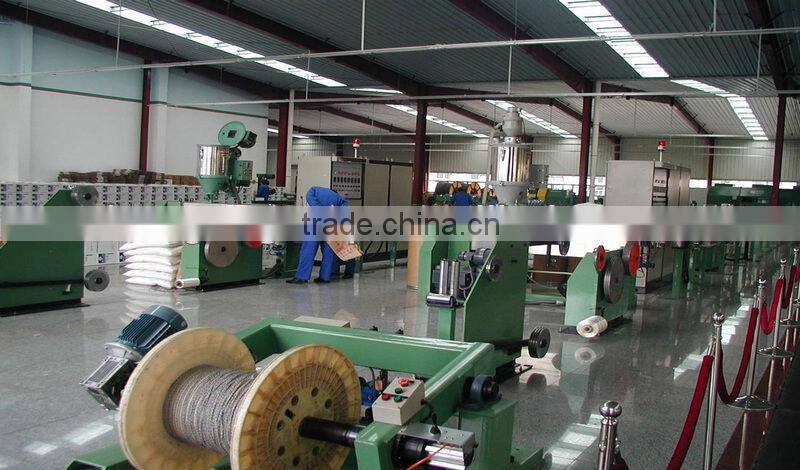

product lines:

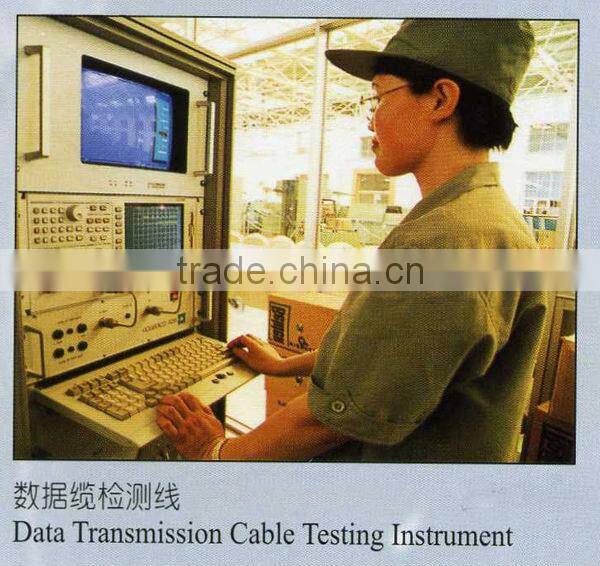

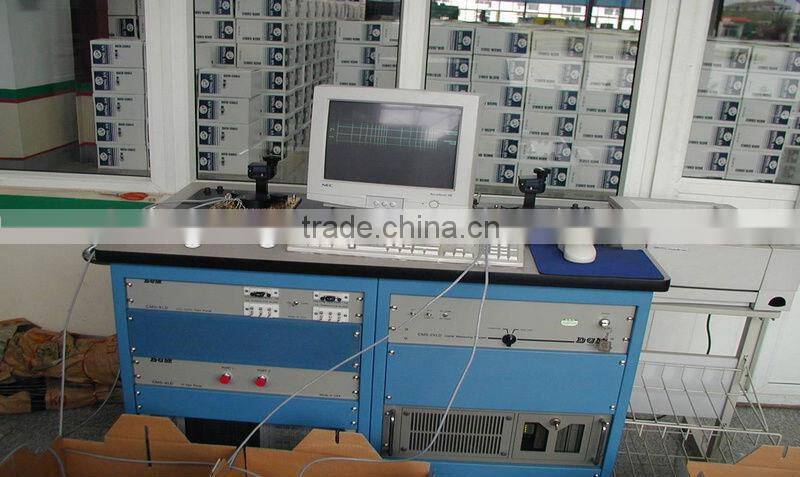

test equipments:
