Help Center4pairs Twisted Cat5e Data Usb Cable
Related Products
-
FTP CAT5e (HSYYP5e) 4*2*0.51US$ 0.2 - 0.3MOQ: 305 Meters -
FTPcat5e 4pr Solid 24AWG PVC Lan CableUS$ 0.2 - 4MOQ: 10 Cartons
-
Cheaper Top Quality Twisted Multipair 1000m Best Price Utp Cat5e 24AWG PVC/LSZH Lan CableUS$ 0.1 - 9MOQ: 10 Boxes
-
Utp Cat5e Lan Cable 24awg/4pUS$ 0.1 - 3MOQ: 10 Boxes
-
Cat5e Utp Solid 4p 24 Awg Lan CableUS$ 0.1 - 3MOQ: 10 Boxes
cable structure:
Specifications:
1) Resistance (max): 9.50ohm/100m at 20°C
2) D.C. resistance unbalanced (max): 2.5%
3) Mutual capacitance (max): 5.6 nF/100m
4) Capacitance unbalanced (max): 330pF/100m
5) Impedance:1-100MHz 100±15ohm
6) Differential phase delay(max):30ns/100m;
7) Operating temperature:-20~+60°C
8) Permitted bend radius:10times diameter of the cable.
9) Pairs colors: a) White/blue b) White/orange c) White/green d) White/brown
10) Materials: a) Conductor: 24 AWG copper
b) Insulation: solid HDPE
c) Sheath: PVC/PE/LSNHP
Application:
10 Base-T
100Base-T4
100Base-TX
100Base-VG-ANYLAN
155Mbps ATM
622 Mbps ATM
1000Base-T
Standards:
ISO/IEC11801
ANSI/TIA/EIA-568-B.2
UL444
Features of product:
1.more bandwith excess than 100MHz standard required;
ply with ROHS standard;
3.the products of special outer sheath or purpose can be designed according to customer's demands.

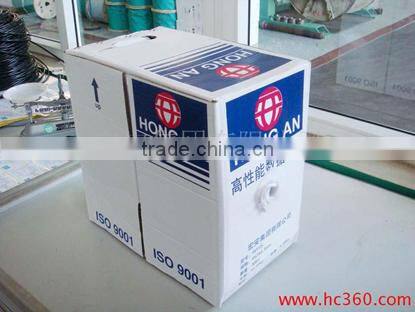

Packing:
1,000 feet (305m) per box 500m - 1000m per wooden reel Custom order lengths are available upon request

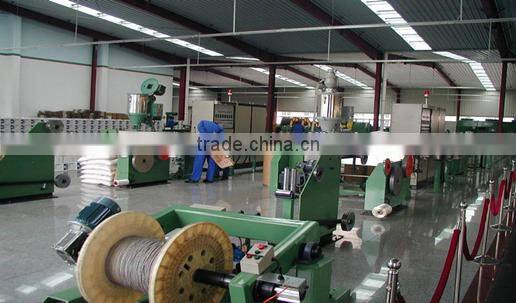

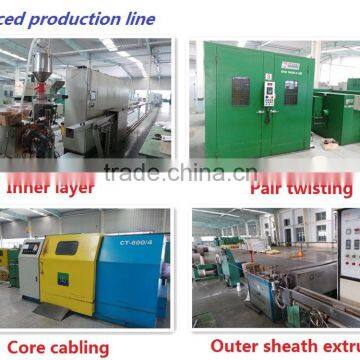

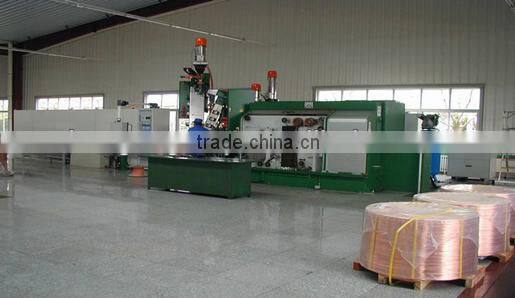

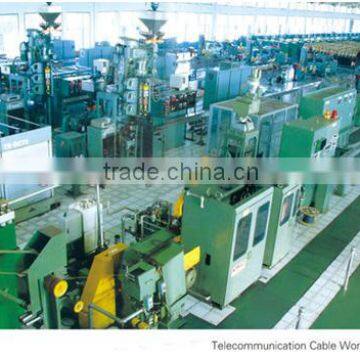

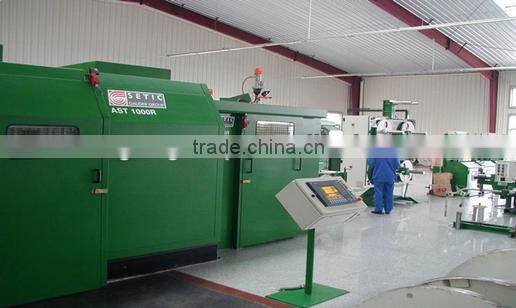

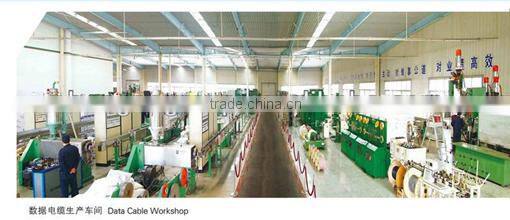

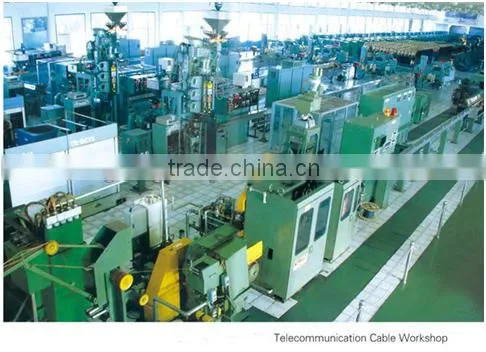

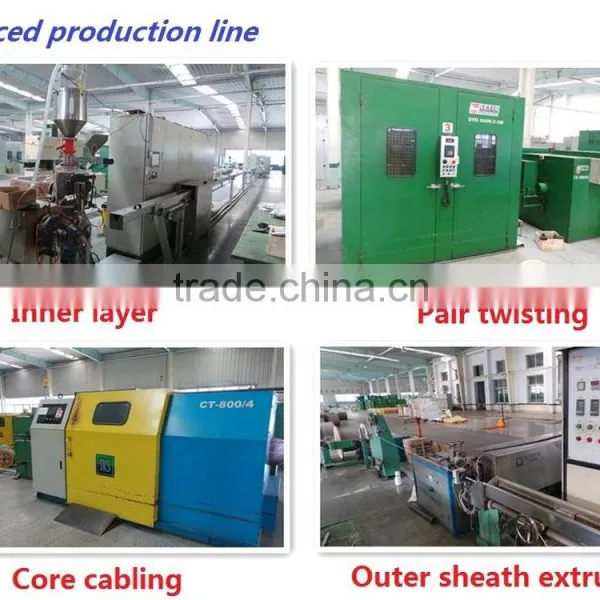

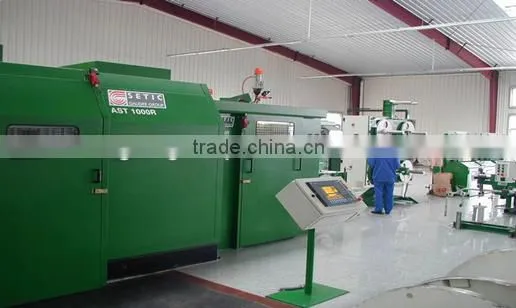

produce lines:

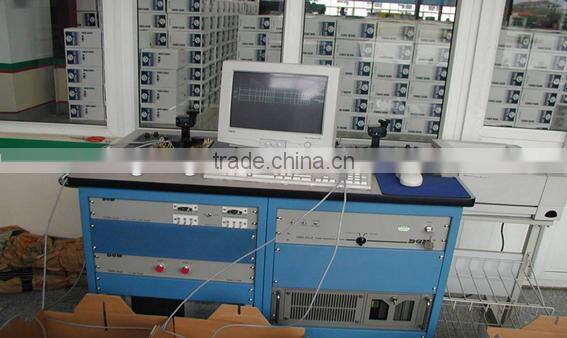

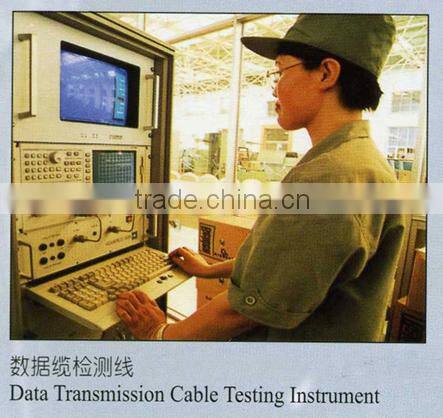

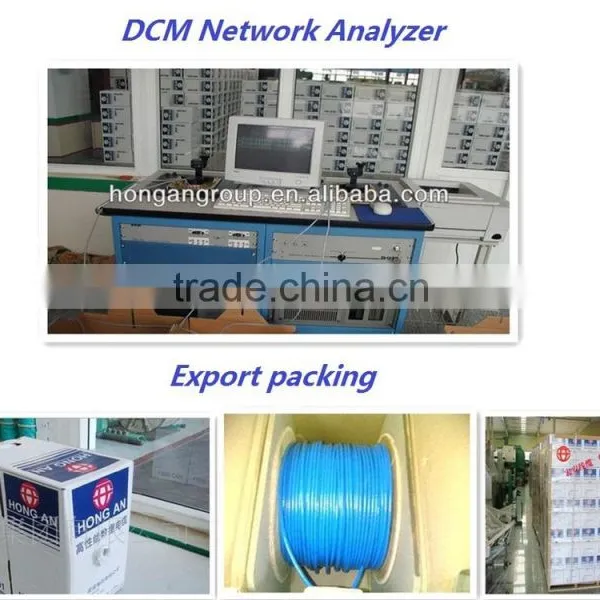

test equipments:
Welcome to contact with me!
Best regards!
David.Li
Skype: wonderlishipeng Tel: 86-631-8353129 Mobile Phone: 8613563191771
