Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Communication Cable > FTPcat5e 4pr Solid 24AWG PVC Lan Cable
FTPcat5e 4pr Solid 24AWG PVC Lan Cable
US$ 0.2 - 4
MOQ: 10 Cartons
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
hongan
Model Number:
HSYVP5e-4
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Cheaper Top Quality Twisted Multipair 1000m Best Price Utp Cat5e 24AWG PVC/LSZH Lan CableUS$ 0.1 - 9MOQ: 10 Boxes -
Utp Cat5e Lan Cable 24awg/4pUS$ 0.1 - 3MOQ: 10 Boxes
-
Cat5e Utp Solid 4p 24 Awg Lan CableUS$ 0.1 - 3MOQ: 10 Boxes
-
4pr Twisted 1000m Utp Cat5e PVC Lan CableUS$ 0.1 - 3MOQ: 10 Boxes
-
Best Price Utp Cat5e Lan CableUS$ 0.1 - 3MOQ: 10 Boxes
Place of Origin
Shandong, China
Brand Name
hongan
Model Number
HSYVP5e-4
Number of Conductors
4
Specifications
1.27 years experience2.ISO9001,ISO14001
3.Mini order:10cartons or customer's demands
4.FOB price:0.2-4USD/M
5.24AWG
Specifications:
1) D.C resistance (max): 9.50Ω/100m at 20°C
2) D.C. resistance unbalanced (max.): 2.5%
3) Mutual capacitance (max.): 5.6nF/100m
4) Capacitance unbalanced (max): 330pF/100m
5)Dielectric strength between conductors(min):2.5kV/2s;
6)Impedance:1-100MHz 100±15Ω;
7)Differential phase delay(max):30ns/100m;
8)Operating temperature:-20~+60°c
9)Permitted bend radius:10times diameter of the cable.
Materials:
a) Conductor: 24AWG copper
b) Insulation: solid HDPE/skin-foam-skin PE
c) Sheath: PVC/PE/LSNHP

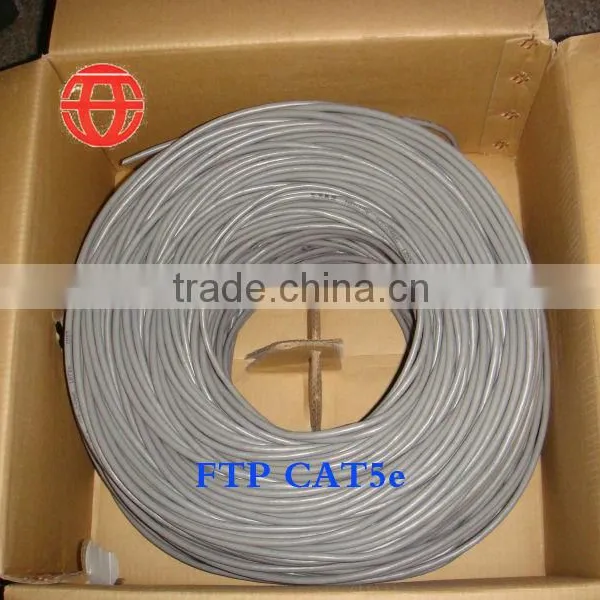

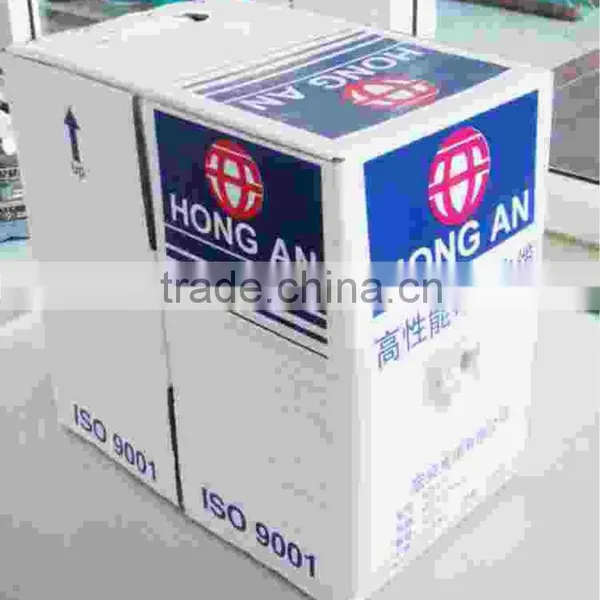

Packing:
1,000feet (305m)/box
500m - 1,000m per wooden reel
Custom order lengths are available upon request

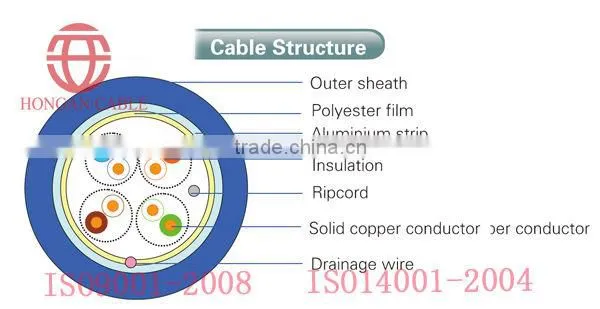

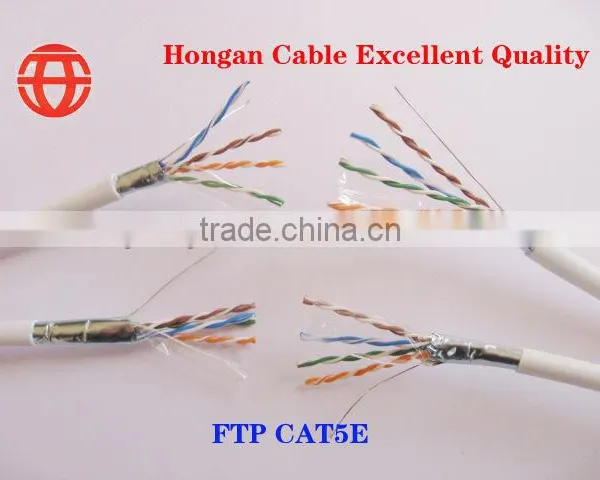

cable structure:
transmission performance:
| frequency (MHz) |
attenuation (Max) (dB/100m) |
NEXT (Min.) (dB/100m) |
PSNEXT (Min.) (dB/100m) |
ELFEXT (Min.) (dB/100m) |
RL (Min) (dB) |
PHASE VELOCITY (Min)(m/s) |
PHASE DELAY (Max) (ns/100m) |
| 1 | 2 | 65 | 62 | 64 | 20 | 0.585c | 570 |
| 4 | 4.1 | 56 | 53 | 52 | 23 | --- | 552 |
| 10 | 6.5 | 50 | 47 | 44 | 25 | 0.611c | 545 |
| 16 | 8.2 | 47 | 44 | 40 | 25 | --- | 543 |
| 20 | 9.3 | 46 | 43 | 38 | 25 | --- | 542 |
| 31.25 | 11.7 | 43 | 40 | 34 | 24 | --- | 540 |
| 62.5 | 17 | 38 | 35 | 28 | 22 | --- | 539 |
| 100 | 22 | 35 | 32 | 24 | 20 | 0.620c | 538 |

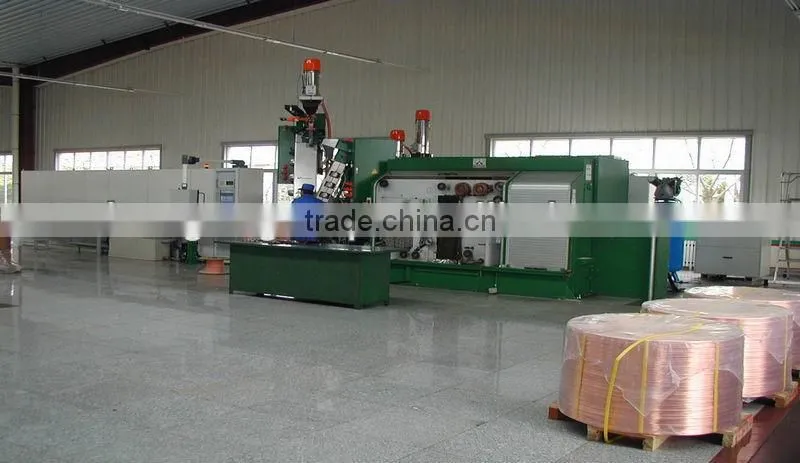

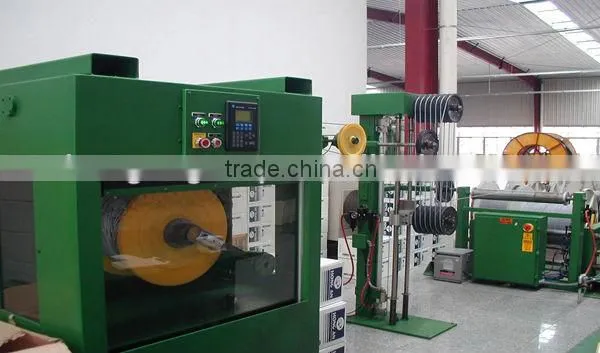

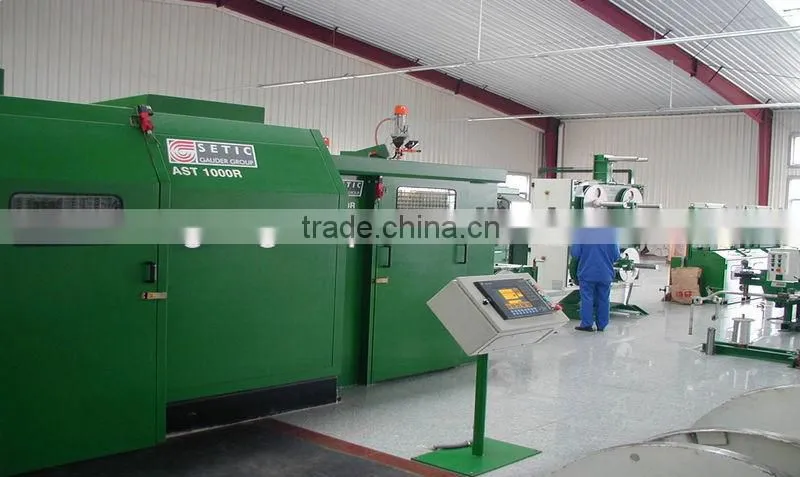

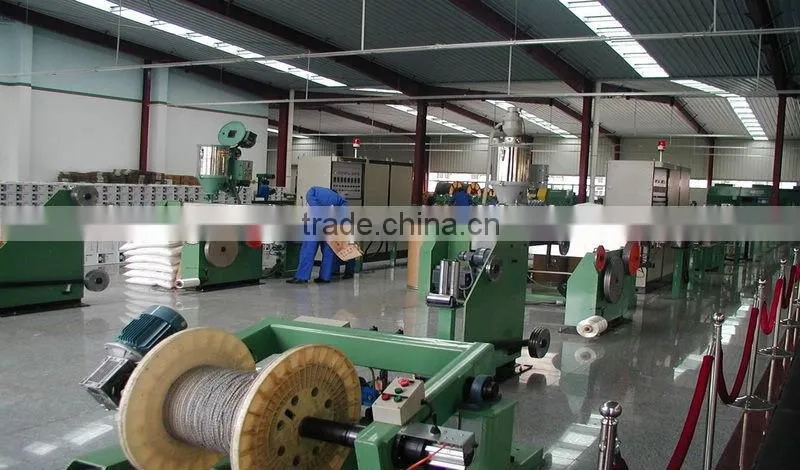

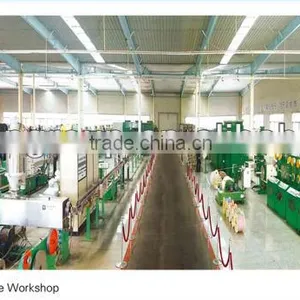

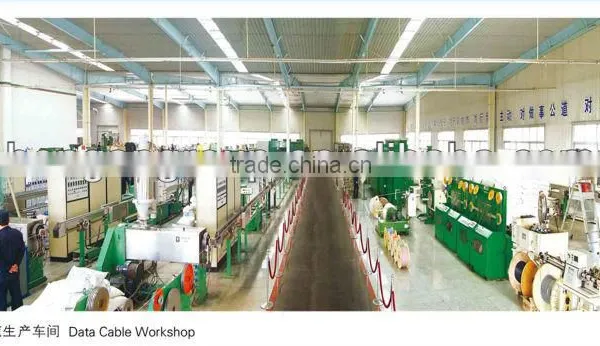

product lines:

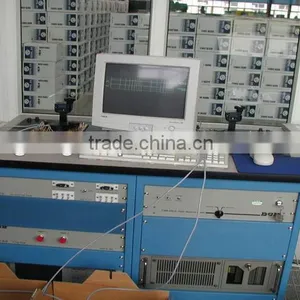

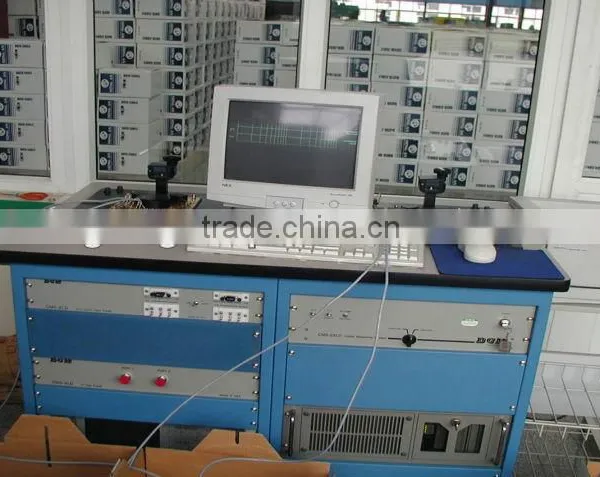

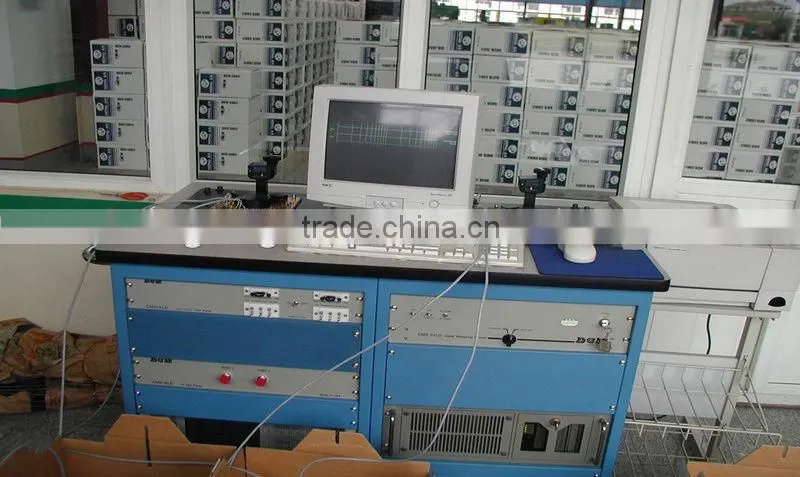

test equipments:
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
1999
Factory Size
Above 100,000 square meters
Total Employees
Above 1000 People
