Home > Products > Single color Led Module > popular module cn outdoor indoor p10 single color red green amber yellow blue white led display modules

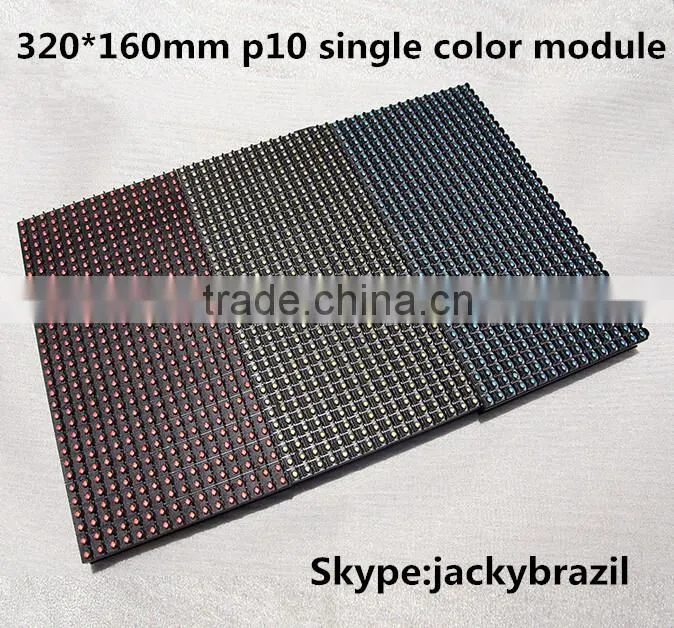

popular module cn outdoor indoor p10 single color red green amber yellow blue white led display modules
USD $5 - $7
/ Piece
5 Pieces(Min.Order)
- 2000000 Piece / Pieces per Month
- Shenzhen
- Credit Card PayPal
You May Like
-
60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
-
80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
-
60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
-
2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
-
Led flood light, led Gas Station Lamp, LED canopy light 100w
-
120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Helilai | Model Number: | Helilai-P10-Red |
| Usage: | Outdoor | Tube Chip Color: | Red | Display Function: | Graphics |
| Pixels: | 10mm | Screen Dimension: | 320mmx160mm |
Product Description
Parameter
| The technology paramete p10 mm | ||
| Number | Item | P10 |
| 1 | Pixel pitch | 10mm |
| 2 | Size of module | 320mmX160 mm |
| 3 | Resolution of module | 32 X16 |
| 4 | Density of pixel | 10000dots/m2 |
| 5 | Pixel configuration | R or G or B or |
| 6 | Red wavelength | 625± 2nm |
| 7 | Green wavelength | 525± 2nm |
| 8 | Blue wavelength | 470± 2nm |
| 9 | Colors | 16777216 |
| 10 | Best viewing distance | 10-150m |
| 11 | Horizontal viewing angle | 120° |
| 12 | power consumption | 200w/m2 |
| 13 | Brightness | > 2000cd /m2 |
| 14 | Gray scale | 16bits per color |
| 15 | Color temperature | 6500k |
| 16 | Control method | Synchronization & Asynchronization |
| 17 | Driving method | constant scanning |
| 18 | Frame frequency | 60Hz |
| 19 | Refresh frequency | > 300Hz |
| 20 | Working voltage | AC220V/110V± 10% |
| 21 | IP grade | IP67 |
| 22 | Working temperature | -20° C~80° C |
| 23 | MTBF | > 10000 hours |
| 24 | Life span | > 100, 000 hours |
| 25 | Defects rate. | ≤ 0.00001(Led display line standard< 0.0001) |
Advantage
We can offer you a very cheap price with top quality modules!
Contact me to get the cheap price and catalogue!
Angel Lee (Sales Manager)
Mob: +86 13266771147
Skype : jackybrazil
Wechat : wxid_jpfqwnv991eu21
QQ :1158665386
Tel : +86 755 33560649
FAX : +86-755-89474486-603
FAX : +86-755-89474486-603
