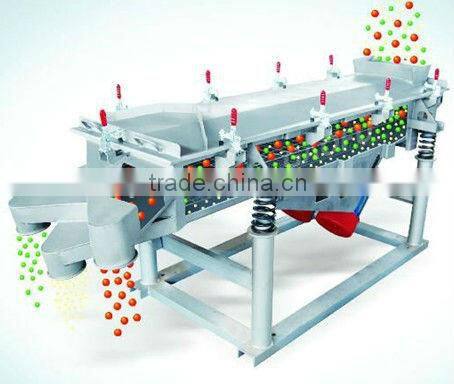

China gold supplier CW series high quality Linear Vibrating screen for limestone

Specifications

Linear Vibrating screen for limestone
1.Less than 75db noise
2.Huge capacity
3.low energy consumption
4. ISO&BV&CE approved





China gold supplier CW ZSQ series high quality Linear Vibrating screen for limestone



 ZSQ Stainless steel powder rectangular Separator is a classical and universal screening equipment.The movement track of its screen box is close to straight line. Almost all the linear vibrating screens are consisted of the screen box,supporting or hanging device,driving unit, vibration isolation part, etc.



Working Principle-  Vibrating screen for limestone



Linear vibrating sieve uses double vibrating motors to drive,when two motors rotate synchronously and reversely, exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction,so its movement track is linear.There is an angle of inclination between the two motor axises relative to the screen deck. Under the influence of the resultant force of exciting force and materiels itself weight,materiels are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel .Applied in flowing line to achieve automatical operation.



Features-   Vibrating screen  for limestone



Low energy consumption,high efficiency,easy maintenance, whole sealing and no dust emission etc.



Application- Linear Vibrating screen   for limestone



ZSQ Stainless steel powder rectangular Separator is suitable to screen and grade the powder or granule,and widely used to many industries ,such as plastic, grinding , chemical, medicine, building materiel , food ,carbon and chemical fertilizer etc.



Technical Parameter - Vibrating screen  for limestone

Model	ZSQ-520	ZSQ-840	ZSQ-1030	ZSQ-1255	ZSQ-1650
Dimension(mm)	500*2000	800*4000	1000*3000	1200*5500	1600*5000
Granularity(mm)	0.074-60	0.074-60	0.074-60	0.074-60	0.074-60
Speed(r/min)	960	960	960	960	960
Amplitude	4-8	4-8	4-8	4-8	4-8
Deck	1-4	1-4	1-4	1-4	1-4
Power(kw)	2×0.75	2×1.5	2×1.9	2×2.2	2×3.0









Q:What factors I need to get a quotation?



   A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.



Q:What is the real delivery time of your factory?



     A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.



 Q: How do you ensure the quality of your products?



     A: Generally, our equipments are the most durable type in the industry, this is also the feature of the label impression of CWJX for most of our customers at home or abroad. With our experienced quality control team, we are trying to offer most of our customers the product with best quality. However, we do recognized that there do have small amount of the product which may got faulty or damaged for different reasons.



 Q: How do your after-sale service work if the product got damaged?



     A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refound this part of cost.(note: Vulnerable parts do not include.)



 Q: How could I trust your promise?



     A: Firstly, you may check the assessment on our website certified by the appraisal agency Bureau Veritas;

secondly, we attend at least 4 to 6 international industry exhibitions held in China annually, like the Food Ingredients China, China International Battery Fair, CPhI, ICSE BioPh China, ICIF China, etc. We usually met our customers there for negotiation;

Thirdly, company inspection always available, if you have any representative or you would like to come to our site, we offer free shuttle from Zhengzhou airport to our company, welcome your visit.



As the professional manufacturer of screening & conveying equipments , we are pleased to offer you the best product in a competitive price.

Quotation of vibrating equipments in other type is also available, please feel free to contact us if you have any request
