Specifications
Single core PVC-insulated, non sheathed general purpose copper cables1. Has passed CE, ISO, CCC, PCCC...Certificate

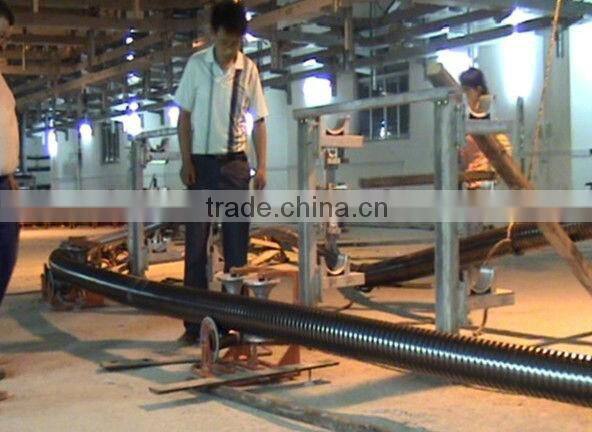

Single core PVC-insulated, non sheathed general purpose copper cables
1.Has passed CE, ISO, CCC, PCCC...certificate
2.sell well in Europe, America, Asia and Africa.
3. Standard GB, IEC, AS
1.Product standard
GB/T12706-2002 (IEC60502-1983)

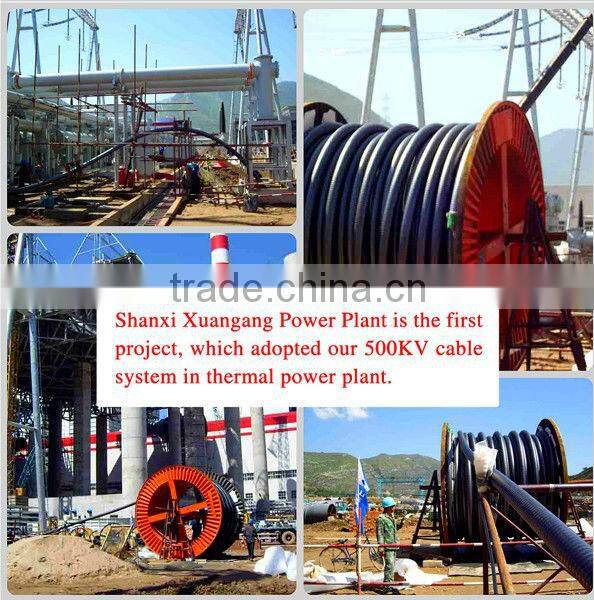

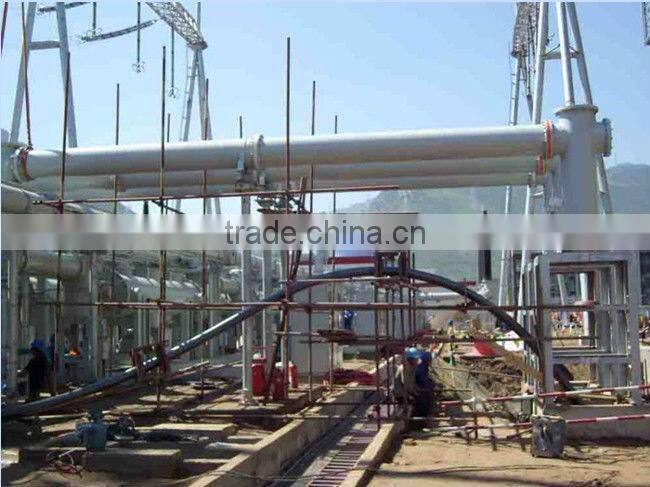

Applications
The product is suitable for use in power transmission and distribution lines with rated power frequency voltage 3.6KV/6KV~26/35KV.
Operating characteristics
Rated power-frequency voltage U0/U: 3.6/6KV~26/35KV.
Max. Permissible continuous operating temperature or conductor:90°C.
Max. short-circuit temperature of conductor shall not exceed 250°C. (5s maximum duration)
The ambient temperature under installation should not below 0°C.
The bending radius of a single-core cable should not less than 20 times of the cable diameter.
The bending radius of a three-core cable should not less than 15 times of the cable diameter.
Voltage designation
The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is used, and is expressed in the form of U0/U (Um) KV. Where:
U0—The rated power-frequency voltage between conductor and earth or metallic screen, for which the cable designed;
U—The rated power-frequency voltage between conductors, for which the cable designed;
Um—The maximum value of the “highest system voltage” for which the equipment may be used.
2.specifications and names
Type |
Designation |
|
Copper conductor |
Aluminium conductor |
|
YJV |
YJLV |
XLPE insulated and PVC sheathed power cable |
YJV22 |
YJLV22 |
XLPE insulated, steel tape armored and PVC sheathed power cable |
YJV23 |
YJV23 |
XLPE insulated, steel tape armored and PE sheathed power cable. |
YJV32 |
YJLV32 |
XLPE insulated, steel wire armored and PVC sheathed power cable. |
YJV33 |
YJV33 |
XLPE insulated, steel wire armored and PE sheathed power cable. |
3.Production Range of cable
TYPE |
Number of cores |
Rated Voltage (U0/U)kV |
|||
6/6 |
6/10 8.7/10 |
8.7/15 12/20 |
18/20 21/35 26/35 |
||
Nominal cross-section area of conductor mm2 | |||||
YJV YJV32(42) |
1 |
25~630 |
25~630 |
25~400 |
50~500 |
YJLV YJLV32(42) |
35~630 |
35~630 |
35~300 |
50~630 |
|
YJV22 |
25~500 |
25~500 |
35~500 |
- |
|
YJLV22 |
35~500 |
35~500 |
35~500 |
- |
|
YJV YJV22 |
3 |
25~300 |
25~300 |
35~300 |
50~300 |
YJLV YJLV22 |
35~300 |
35~300 |
35~300 |
50~300 |
|
YJV32 YJLV32 |
25~300 |
35~300 |
35~300 |
50~300 |
|
YJV42 YJLV42 |
35~185 |
35~185 |
35~150 |
50~300 |
|
*Note:The single-core armoured cables are used for d.c.system only, as for a.c.system, non-magnetic aromour material should be used or a magnetic isolation should be applied.
