Specifications
1. Superior quality and competitive price2. Fast delivery 3. IEC/ASTM/AS/BS/DIN standard
4.State grid approved factoty

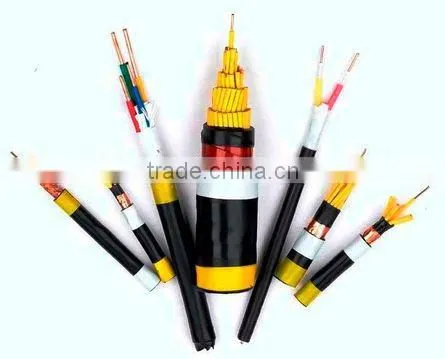

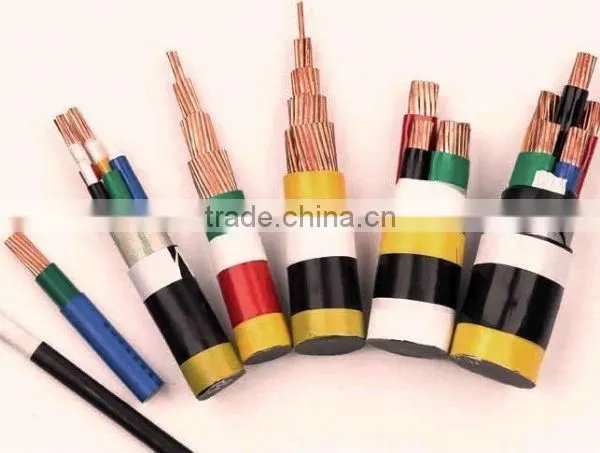

XLPE(Cross-linked polyethylene) Insulated armoured Electric Power Cable Suppliers
Standard:
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35 2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
Application:
These cables are most suitable for direct burial or for installation on trays or ducts, Where there is a risk of mechanical damage, armoured cables should be used.

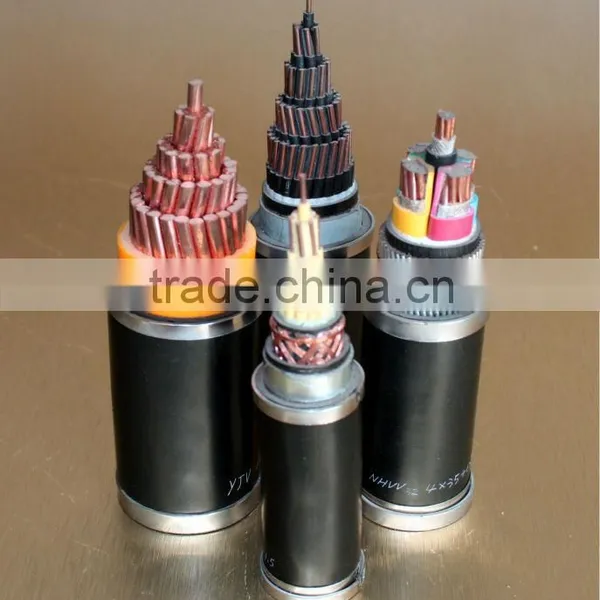

Construction:(Example of YJV32 8.7/15kV)
Copper(aluminum)conductor or conductor screen
XLPE insulation or insulation screen
Color for core identification
Assembly/beding/armoured/outer sheath.
Number of cores:
1core 2core 3core 3+1core 4core 4+1core 4+2core 5core and so on.
Nominal Section Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
2 Some common use model
Type |
Description |
Application n |
|
Cu |
Al |
||
YJV |
YJLV |
XLPE insulation PVC sheath power cable |
To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside |
YJY |
YJLY |
XLPE insulation PE sheath power cable |
|
YJV22 |
YJLV22 |
XLPE insulation, steel tape armor, PVC sheath power cable |
To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force. |
YJV23 |
YJLV23 |
XLPE insulation, steel tape armor, PE sheath power cable |
|
YJV62 |
YJLV62 |
XLPE insulation, have no the magnetism steel tape armor, PE sheath power cable |
|
YJV32 |
YJLV32 |
XLPE insulation, thin steel-wire armor, PVC sheath power cable |
Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint . |
YJV72 |
YJLV72 |
XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable |
|
YJV42 |
YJLV42 |
XLPE insulation, thick steel-wire armor, PVC sheath power cable |
Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint. |
|
1st class |
0.6/1kv |
1.8/3kv |
3.6/6kv |
6/10kv |
8.7/15kv |
12/20kv |
18/30kv |
21/35kv |
|||
2nd class |
1/1kv |
3/3kv |
6/6kv |
8.7/10kv |
12/15kv |
18/20kv |
- |
26/35kv |
||||
1 Core |
Section area(mm2) |
1.5-800 |
25-800 |
25-800 |
25-800 |
35-800 |
50-800 |
50-800 |
50-800 |
|||
2 Core |
Section Area(mm2) |
1.5-185 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|||
3 Core |
Section area(mm2) |
1.5-400 |
25-400 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |
|||
4 Core |
Section Area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
|||
5 Core |
Section area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
Note:We can provide more info than above data, if needed.The above are just some examples
The specifications,cross sections and sizes not list in aboved table can be design and produce according to your demands
